Transporto priemonė: 450 SE; VIN numerio dalis: 116032

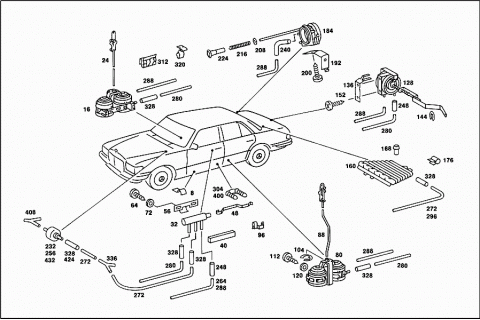

Grupė: 80 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| Q 000000000001 | . | |
| CENTRAL LOCKING MECHANISM | ||
| 008 | A 1089950720 | CLAMP |
| VACUUM LINE TO FRONT DOOR INTERIOR PART | ||
| 016 | A 1168000175 | ELEMENT |
| Repalced by: A 0008000675 | ||
| 016 | A 0008000675 | ELEMENT |
| FRONT DOOR | ||
| 024 | A 1168000080 | CONTROL ROD |
| FRONT DOOR VACUUM ELEMENT | ||
| 032 | A 1128000173 | SWITCH |
| Repalced by: A 1168000273 | ||
| 032 | A 1168000273 | SWITCH |
| Repalced by: A 1168000473 | ||
| 032 | A 1168000473 | SWITCH |
| CENTRAL LOCKING MECHANISM | ||
| 040 | A 0039891585 | ADHESIVE TAPE |
| TO VACUUM SWITCH | ||
| 048 | A 1168050232 | CLAMP |
| VACUUM SWITCH | ||
| 056 | A 1168050114 | BRACKET |
| VACUUM SWITCH TO FRONT DOOR INTERIOR PART | ||
| 064 | N 007981004208 | SHEET METAL SCREW |
| VACUUM ELEMENT TO FRONT DOOR | ||
| 064 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 064 | N 000000000453 | SHEET METAL SCREW |
| VACUUM ELEMENT TO FRONT DOOR | ||
| 072 | N 000125004311 | WASHER |
| VACUUM ELEMENT TO FRONT DOOR | ||
| 080 | A 0008000675 | ELEMENT |
| REAR DOOR | ||
| 080 | A 0008000675 | ELEMENT |
| FRONT DOOR | ||
| 088 | A 1168000180 | CONTROL ROD |
| REAR DOOR VACUUM ELEMENT | ||
| 096 | A 1159940160 | LOCK |
| VACUUM ELEMENT CONTROL ROD TO FRONT DOOR INTERIOR PART | ||
| 104 | N 006799003202 | LOCK PLATE |
| VACUUM ELEMENT TO REAR DOOR | ||
| 112 | N 007981004258 | SHEET METAL SCREW |
| VACUUM ELEMENT TO REAR DOOR | ||
| 120 | N 000125005317 | WASHER |
| VACUUM ELEMENT TO REAR DOOR | ||
| 128 | A 1168000275 | ELEMENT |
| REAR LID VACUUM ELEMENT | ||
| 136 | A 1158050036 | SPRING |
| REAR LID VACUUM ELEMENT | ||
| 144 | N 006799004001 | LOCK PLATE |
| REAR LID VACUUM ELEMENT | ||
| 152 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 152 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 152 | N 000000000460 | SHEET METAL SCREW |
| REAR LID VACUUM ELEMENT | ||
| 160 | A 1168000019 | TANK |
| Repalced by: A 1168000219 | ||
| 160 | A 1168000219 | TANK |
| VACUUM SUPPLY TANK | ||
| 168 | A 1238050298 | SEAL |
| VACUUM LINE | ||
| 176 | A 0029885378 | CLIP |
| VACUUM LINE | ||
| 184 | A 1078001275 | ELEMENT |
| FILLER NECK FLAP | ||
| 192 | A 1168050014 | BRACKET |
| VACUUM ELEMENT AT FILLER NECK FLAP | ||
| 200 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 200 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 200 | N 000000000460 | SHEET METAL SCREW |
| VACUUM ELEMENT AT FILLER NECK FLAP | ||
| 200 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 200 | N 007981004339 | SHEET METAL SCREW |
| VACUUM ELEMENT AT FILLER NECK FLAP | ||
| 208 | N 000125004311 | WASHER |
| AT SHIFTING ROD | ||
| 216 | A 1128050036 | SPRING |
| AT SHIFTING ROD | ||
| 224 | A 1078050017 | BUSHING |
| SHIFTING ROD | ||
| 232 | A 1238000078 | VALVE |
| BELOW INSTRUMENT PANEL | ||
| 240 | A 1170780581 | HOSE |
| TO ELEMENT AT FILLER NECK FLAP | ||
| 248 | A 0079976182 | HOSE |
| 248 | A 0079976182 | HOSE |
| VACUUM SWITCH | ||
| 30 MM | ||
| 248 | A 0079976182 | HOSE |
| TO ELEMENT AT FILLER NECK FLAP | ||
| 50 MM | ||
| 248 | A 0079976182 | HOSE |
| REAR LID | ||
| 80 MM | ||
| 256 | A 1168000378 | VALVE |
| 264 | A 0059975982 | HOSE |
| WITHE | ||
| 264 | A 0059975982 | HOSE |
| FROM LEFT FRONT PANEL PILLAR DISTRIBUTOR TO LEFT FRONT DOOR VACUUM SWITCH | ||
| 1500 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM FRONT PANEL LEFT PILLAR DISTRIBUTOR TO LEFT REAR DOOR ELEMENT | ||
| 2350 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM LEFT FRONT PANEL PILLAR DISTRIBUTOR TO THE RIGHT ONE | ||
| 1450 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM RIGHT FRONT PANEL PILLAR DISTRIBUTOR TO FRONT DOOR ELEMENT | ||
| 1300 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM RIGHT FRONT PANEL PILLAR DISTRIBUTOR TO RIGHT SIDE MEMBER DISTRIBUTOR | ||
| 1450 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO RIGHT REAR DOOR ELEMENT | ||
| 850 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO FILLER NECK FLAP DISTRIBUTOR | ||
| 2050 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO FILLER NECK FLAP DISTRIBUTOR | ||
| 2150 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM FILLER NECK FLAP DISTRIBUTOR TO FILLER NECK FLAP ELEMENT | ||
| 210 MM | ||
| 264 | A 0059975982 | HOSE |
| FROM FILLER NECK FLAP DISTRIBUTOR TO REAR LID ELEMENT | ||
| 1450 MM | ||
| 272 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 272 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 4200 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 4300 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 5250 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 5350 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM CHECK VALVE TO DISTRIBUTOR | ||
| 350 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM CHECK VALVE TO SWITCH ON FRONT DOOR | ||
| 1600 MM | ||
| 272 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO LEFT FRONT DOOR ELEMENT | ||
| 2000 MM | ||
| 280 | A 0119976382 | HOSE |
| Repalced by: A 0059977182 | ||
| 280 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 280 | A 0001581435 | PIPE LINE |
| 280 | A 0001581435 | PIPE LINE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO LEFT FRONT DOOR ELEMENT | ||
| 2000 MM | ||
| 280 | A 0009977152 | HOSE |
| YELLOW/GREEN | ||
| 280 | A 0009977152 | HOSE |
| FROM LEFT FRONT PANEL PILLAR DISTRIBUTOR TO LEFT FRONT DOOR VACUUM SWITCH | ||
| 1600 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM FRONT PANEL LEFT PILLAR DISTRIBUTOR TO LEFT REAR DOOR ELEMENT | ||
| 2500 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM LEFT FRONT PANEL PILLAR DISTRIBUTOR TO THE RIGHT ONE | ||
| 1150 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM FRONT PANEL PILLAR DISTRIBUTOR TO FRONT DOOR ELEMENT | ||
| 1400 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM FILLER NECK FLAP DISTRIBUTOR TO FILLER NECK FLAP ELEMENT | ||
| 1600 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO RIGHT REAR DOOR ELEMENT | ||
| 850 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO REAR LID ELEMENT | ||
| 3550 MM | ||
| 280 | A 0009977152 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO REAR LID ELEMENT | ||
| 3650 MM | ||
| 288 | A 0009977052 | HOSE |
| YELLOW/RED | ||
| 288 | A 0009977052 | HOSE |
| FROM SWITCH ON FRONT DOOR TO DISTRIBUTOR ON FRONT PANEL PILLAR | ||
| 1600 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM FRONT PANEL LEFT PILLAR DISTRIBUTOR TO LEFT REAR DOOR ELEMENT | ||
| 2500 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM LEFT FRONT PANEL PILLAR DISTRIBUTOR TO THE RIGHT ONE | ||
| 1150 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM FRONT PANEL PILLAR DISTRIBUTOR TO FRONT DOOR ELEMENT | ||
| 1400 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM RIGHT FRONT PANEL PILLAR DISTRIBUTOR TO RIGHT SIDE MEMBER DISTRIBUTOR | ||
| 1600 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO RIGHT REAR DOOR ELEMENT | ||
| 850 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO FILLER NECK FLAP DISTRIBUTOR | ||
| 2050 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM RIGHT SIDE MEMBER DISTRIBUTOR TO FILLER NECK FLAP DISTRIBUTOR | ||
| 2150 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM FILLER NECK FLAP DISTRIBUTOR TO FILLER NECK FLAP ELEMENT | ||
| 210 MM | ||
| 288 | A 0009977052 | HOSE |
| FROM FILLER NECK FLAP DISTRIBUTOR TO REAR LID ELEMENT | ||
| 1450 MM | ||
| 296 | A 0009977252 | HOSE |
| Repalced by: A 0019973952 | ||
| 296 | A 0009973952 | HOSE |
| GREY/YELLOW | ||
| 296 | A 0009973952 | HOSE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 4200 MM | ||
| 296 | A 0009973952 | HOSE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 5250 MM | ||
| 296 | A 0009973952 | HOSE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 4300 MM | ||
| 296 | A 0009973952 | HOSE |
| FROM ENGINE COMPARTMENT DISTRIBUTOR TO SUPPLY TANK IN REAR PANEL/REAR END | ||
| 5350 MM | ||
| 304 | A 0039884578 | CLIP |
| 312 | A 1169881278 | CLIP |
| Repalced by: A 1269882078 | ||
| 312 | A 1269882078 | CLIP |
| 320 | A 1149880278 | CLIP |
| 320 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 320 | A 1149880178 | CLIP |
| 328 | A 0079976182 | HOSE |
| 328 | A 0079976182 | HOSE |
| Y-SHAPE DISTRIBUTOR IN ENGINE COMPARTMENT, LEFT | ||
| 30 MM | ||
| 328 | A 0079976182 | HOSE |
| Y-SHAPE DISTRIBUTOR ON FRONT PANEL PILLAR,LEFT AND RIGHT | ||
| 30 MM | ||
| 328 | A 0079976182 | HOSE |
| RIGHT REAR DOOR | ||
| 30 MM | ||
| 328 | A 0079976182 | HOSE |
| WHEELHOUSE, REAR RIGHT | ||
| 30 MM | ||
| 328 | A 0079976182 | HOSE |
| CHECK VALVE BELOW INSTRUMENT PANEL | ||
| 30 MM | ||
| 328 | A 0079976182 | HOSE |
| FRONT DOOR VACUUM ELEMENT | ||
| 50 MM | ||
| 328 | A 0079976182 | HOSE |
| VACUUM ELEMENT AT FILLER NECK FLAP | ||
| 50 MM | ||
| 328 | A 0079976182 | HOSE |
| 90 MM | ||
| 336 | A 1158050322 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 336 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 336 | A 1158050422 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 336 | A 1170780145 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| Q 000000000001 | . | |

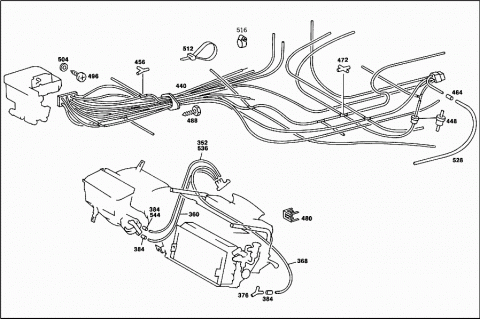

| AIR CONDITIONER | ||
| 352 | A 0089978382 | HOSE |
| FROM TEMPERATURE SWITCH TO BLOWER CASE FLAP VACUUM ELEMENT | ||
| 700 MM | ||
| 352 | A 0009976552 | HOSE |
| 850 MM | ||
| 360 | A 0009978582 | HOSE |
| 700 MM | ||
| 360 | A 0009976452 | HOSE |
| 850 MM | ||
| 368 | A 0119974182 | HOSE |
| Repalced by: A 0009970752 | ||
| 368 | A 0009970752 | HOSE |
| 1100 MM | ||
| 368 | A 0009970752 | HOSE |
| 1220 MM | ||
| 376 | A 1170780145 | BRANCH-OFF FITTING |
| 384 | A 0079976182 | HOSE |
| 384 | A 0079976182 | HOSE |
| DISTRIBUTOR | ||
| 30 MM | ||
| 384 | A 0079976182 | HOSE |
| 384 | A 0079976182 | HOSE |
| VACUUM ELEMENTS | ||
| 50 MM | ||
| 384 | A 0079976182 | HOSE |
| 150 MM | ||
| Q 000000000001 | . | |
| CABLE HARNESS MOUNTING | ||
| 400 | A 1169881978 | CLIP |
| VACUUM DISTRIBUTOR | ||
| 400 | A 0039884578 | CLIP |
| Q 000000000001 | . | |
| BRANCH PIECE | ||
| 408 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,LEFT | ||
| 408 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,LEFT | ||
| 408 | A 1170780145 | BRANCH-OFF FITTING |
| FRONT PANEL PILLAR | ||
| 408 | A 1170780145 | BRANCH-OFF FITTING |
| FRONT PANEL PILLAR | ||
| 408 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,LEFT | ||
| 408 | A 1170780045 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,LEFT | ||
| 408 | A 1170780045 | BRANCH-OFF FITTING |
| LIGHT RANGE ADJUSTER | ||
| 424 | A 0079976182 | HOSE |
| 424 | A 0079976182 | HOSE |
| ENGINE COMPARTMENT,LEFT | ||
| 30 MM | ||
| 424 | A 0079976182 | HOSE |
| ENGINE COMPARTMENT,LEFT | ||
| 30 MM | ||
| 432 | A 1168000378 | VALVE |
| IN ENGINE COMPARTMENT,LEFT; FOR COOLING SYSTEM & CENTRAL LOCKING MECHANISM | ||
| Q 000000000001 | . | |
| AUTOMATIC AIR CONDITIONER | ||
| 440 | A 1168001583 | LINE |
| VACUUM | ||
| 448 | A 1168000378 | VALVE |
| Repalced by: A 1238000578 | ||
| 448 | A 1238000578 | VALVE |
| 456 | A 1168050022 | DISTRIBUTOR |
| Y-SHAPE | ||
| 456 | A 1238050022 | DISTRIBUTOR |
| Repalced by: A 1170780145 | ||
| 456 | A 1170780145 | BRANCH-OFF FITTING |
| Y-SHAPE | ||
| 464 | A 0079976182 | HOSE |
| 50 MM | ||
| 464 | A 0079976182 | HOSE |
| 90 MM | ||
| 464 | A 0079976182 | HOSE |
| 30 MM | ||
| 464 | A 0079976182 | HOSE |
| 70 MM | ||
| 472 | A 1168050122 | DISTRIBUTOR |
| T-SHAPE | ||
| 472 | A 1238050122 | DISTRIBUTOR |
| Repalced by: A 1170780045 | ||
| 472 | A 1170780045 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 472 | A 1170780045 | BRANCH-OFF FITTING |
| T-SHAPE | ||
| 480 | A 1169882578 | CLIP |
| 488 | N 007976004207 | SHEET METAL SCREW |
| 496 | N 007981004254 | SHEET METAL SCREW |
| 504 | N 009021004108 | WASHER |
| 512 | A 0019974390 | LOOM TIE |
| 512 | A 1169970790 | LOOM TIE |
| Repalced by: A 0019974190 | ||
| 512 | A 0019974190 | LOOM TIE |
| 512 | A 1169970890 | LOOM TIE |
| 512 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 512 | A 1149970590 | LOOM TIE |
| 516 | N 916002008100 | CLAMP |
| 528 | A 0009970752 | HOSE |
| BETWEEN SUPPLY TANK DISTRIBUTOR AND COUPLING WITH HOSE CONNECTION | ||
| 1150 MM | ||
| 536 | A 0079976182 | HOSE |
| FROM VACUUM ELEMENT TO CONNECTOR | ||
| 200 MM | ||
| 536 | A 0079976182 | HOSE |
| AT DISTRIBUTOR | ||
| 40 MM | ||
| 544 | A 0089973882 | HOSE |
| 50 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
