Transporto priemonė: 500 SEC USA; VIN numerio dalis: 126044

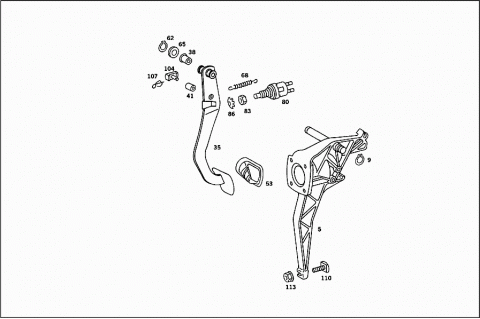

Grupė: 29 PEDALS - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1262901719 | BEARING BRACKET |
| Repalced by: A 1262902319 | ||
| 005 | A 1262902319 | BEARING BRACKET |
| 009 | N 000471016001 | LOCK RING |
| 035 | A 1262901318 | PEDAL |
| Repalced by: A 1262901718 | ||
| 035 | A 1262901718 | PEDAL |
| Repalced by: A 1262902018 | ||
| 035 | A 1262902018 | PEDAL |
| BRAKE PEDAL | ||
| 038 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 038 | A 1242920050 | BUSHING |
| 041 | A 1262920050 | BUSHING |
| 053 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 062 | N 000471016001 | LOCK RING |
| PEDALS TO PIVOT PINS | ||
| 065 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 068 | A 1269930310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 080 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 083 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 086 | N 006797012250 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 104 | A 1262920074 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 107 | N 912011008000 | LOCK |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 110 | A 0009904833 | SCREW |
| Repalced by: A 0009905233 | ||
| 110 | A 0009905233 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 113 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 113 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 113 | N 913023006001 | NUT |
| BEARING BRACKET TO FRAME | ||
