Transporto priemonė: 500 SEL / S 500; VIN numerio dalis: 140051

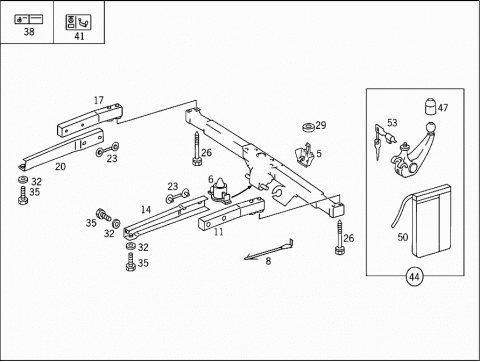

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1403150083 | COVERING |
| Repalced by: A 1403150183 | ||
| 005 | A 1403150183 | COVERING |
| 006 | A 0003151567 | CAP |
| FOR CLOSING THE RECEPTACLE WITH REMOVED BALL HEAD | ||
| 008 | A 1409970490 | LOOM TIE |
| 008 | A 1409970890 | LOOM TIE |
| 011 | A 1243100291 | STIFFENING |
| LEFT | ||
| 014 | A 1403100057 | PLATE |
| LEFT | ||
| 017 | A 1403100091 | STIFFENING |
| RIGHT | ||
| 020 | A 1403100157 | PLATE |
| RIGHT | ||
| 023 | A 2013100160 | SHACKLE |
| Repalced by: A 2103100360 | ||
| 023 | A 2103100360 | SHACKLE |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| 023 | A 2103100360 | SHACKLE |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| 026 | A 1409900014 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 029 | A 1403150080 | GASKET |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 032 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 032 | N 007349010007 | WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 035 | N 914125010308 | SCREW |
| Repalced by: N 910106010031 | ||
| 035 | N 910106010031 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 038 | A 1245843917 | GUIDE SIGN |
| FIFTH-WHEEL LOAD AND TRAILED LOAD | ||
| 041 | A 1245841417 | GUIDE SIGN |
| REAR LID | ||
| 041 | A 1245841917 | GUIDE SIGN |
| REAR LID | ||
| 044 | A 1403100156 | BALL HEAD |
| Repalced by: A 1403100356 | ||
| 044 | A 1403100356 | BALL HEAD |
| 044 | A 1403100556 | BALL HEAD |
| Repalced by: A 1403100756 | ||
| 044 | A 1403100756 | BALL HEAD |
| 047 | A 0003150629 | CAP |
| 050 | A 1245850103 | PROTECTIVE WRAPPER |
| 053 | A 2015830095 | PADLOCK |
| Q 000000000001 | IMPORTANT INFORMATION | |

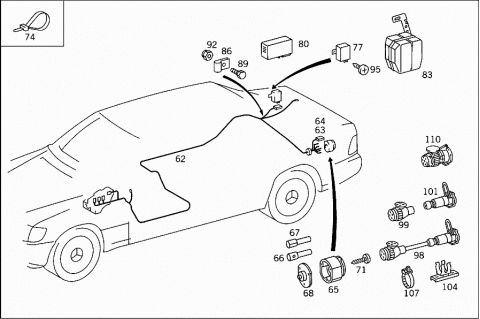

| ELECTRICAL PARTS | ||
| 062 | A 1405433708 | CABLE HARNESS |
| 062 | A 1405402813 | CABLE HARNESS |
| 062 | A 1404401935 | CABLE HARNESS |
| 062 | A 1404407736 | CABLE HARNESS |
| 062 | A 1405402910 | CABLE HARNESS |
| 062 | A 1404402235 | CABLE HARNESS |
| 062 | A 1404408036 | CABLE HARNESS |
| 063 | A 0065457426 | PIN BUSHING HOUSING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 064 | A 0025457926 | PIN BUSHING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 065 | A 0005406481 | PLUG SOCKET |
| Repalced by: A 0015407581 | ||
| 065 | A 0015407581 | PLUG SOCKET |
| 13-POLE | ||
| 066 | A 0035454126 | CONTACT BUSHING |
| LONG VERSION; SCREW-TYPE | ||
| 066 | A 0035454226 | CONTACT BUSHING |
| SHORT VERSION; SCREWABLE | ||
| 067 | A 0045455126 | CONTACT BUSHING |
| CAPABLE OF BEING SOLDERED | ||
| 068 | A 1249972381 | GROMMET |
| Repalced by: A 0005455480 | ||
| 068 | A 0005455480 | GASKET |
| 071 | N 007981004263 | SHEET METAL SCREW |
| 074 | A 0019974190 | LOOM TIE |
| 077 | A 2018200205 | BLINKER UNIT |
| 080 | A 1408201326 | CONTROL UNIT |
| 083 | A 1408200049 | CAP |
| 086 | A 0019951301 | CLAMP |
| 089 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 089 | N 304017006016 | SCREW |
| 092 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 092 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 092 | N 910113006000 | NUT |
| 095 | N 007981003203 | SHEET METAL SCREW |
| 098 | A 0005462603 | ELECTRIC CABLE |
| Repalced by: A 1245409035 | ||
| 098 | A 1245409035 | ELECTRIC CABLE |
| TRAILER-PLUG-SOCKET ADAPTER CABLE | ||
| 099 | A 0255451728 | PLUG |
| 13-POLE | ||
| 101 | A 0015401381 | PLUG SOCKET |
| 7-POLE | ||
| 104 | A 0005452840 | BRACKET |
| ADAPTER CABLE | ||
| 107 | A 0029970990 | LOOM TIE |
| ADAPTER CABLE | ||
| 110 | A 0005401074 | CONNECTOR |
| ADAPTER FROM 13-PIN TO 7-PIN | ||
