Transporto priemonė: 500 SEL / S 500; VIN numerio dalis: 140051

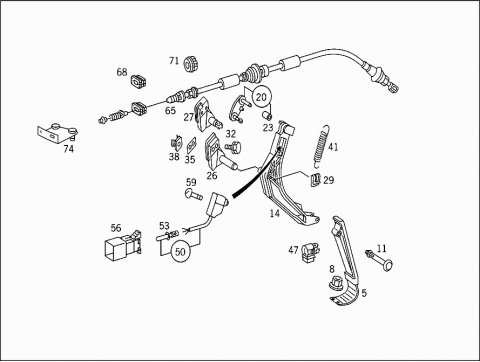

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 008 | A 1403010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 011 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 014 | A 1403011120 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 1403011520 | LEVER |
| ACCELERATOR PEDAL | ||
| 020 | A 1403001725 | LEVER |
| 023 | N 040621005200 | INSULATING HOSE |
| 5 MM | ||
| 026 | A 1403000213 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 027 | A 1293010218 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 029 | N 912007006001 | CLIP |
| PEDAL LEVER TO BEARING | ||
| 032 | N 914130006101 | SCREW |
| BEARING TO FIRE WALL | ||
| 035 | A 1403010080 | GASKET |
| Repalced by: A 1243010080 | ||
| 035 | A 1243010080 | GASKET |
| BEARING TO FIRE WALL | ||
| 038 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 038 | A 0009902291 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| 041 | A 1029930610 | SPRING |
| ACCELERATOR PEDAL | ||
| 047 | A 0025452214 | KICK-DOWN SWITCH |
| (KICK-DOWN SWITCH) | ||
| 050 | A 1405450114 | SWITCH |
| ACCELERATION SKID CONTROL (ASR) | ||
| 053 | A 0165451428 | PLUG PIN |
| 056 | A 0185451428 | PLUG |
| 059 | A 0003010071 | SCREW |
| Repalced by: A 0049906112 | ||
| 059 | A 0049906112 | SCREW |
| SWITCH TO LEVER | ||
| 065 | A 1403000330 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 610 MM | ||
| 065 | A 1403000530 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 610 MM | ||
| 065 | A 1403000830 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 560 MM | ||
| 065 | A 1403001130 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 560 MM | ||
| 065 | A 1403002530 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 420 MM | ||
| 065 | A 1403002630 | WIRE CABLE |
| INSTALLATION LENGTH | ||
| 420 MM | ||
| 068 | A 2023010093 | GUIDE |
| 071 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 074 | A 1403000236 | BEARING BRACKET |
