Transporto priemonė: 500 SEL / S 500; VIN numerio dalis: 140051

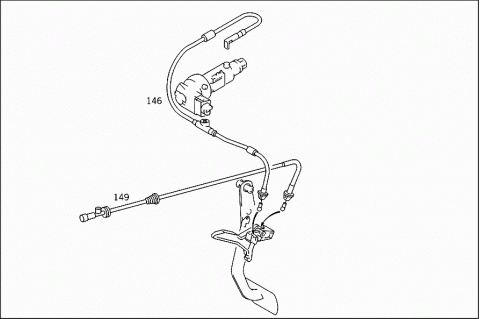

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 1402902419 | BEARING BRACKET |
| 012 | A 1682910074 | PIN |
| PEDAL TO BEARING BRACKET | ||
| 029 | A 1402902418 | BRAKE PEDAL |
| Repalced by: A 1402903118 | ||
| 029 | A 1402903118 | BRAKE PEDAL |
| 029 | A 1402903718 | PART NAME MISSING |
| 032 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 032 | A 1242920050 | BUSHING |
| 035 | A 1262920050 | BUSHING |
| 038 | A 1242920235 | ROLLER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 041 | N 006799005002 | LOCK PLATE |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| Repalced by: N 006799005004 | ||
| 041 | N 006799005004 | CIRCLIP |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 044 | A 1402921031 | LEVER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 047 | A 1109931710 | SPRING |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 047 | A 1409931710 | SPRING |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 047 | A 1409932010 | SPRING |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 065 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 068 | A 0005458609 | SWITCH |
| Repalced by: A 0005459909 | ||
| 068 | A 0005459909 | SWITCH |
| Repalced by: A 0015450109 | ||
| 068 | A 0015450109 | BRAKE LIGHT SWITCH |
| STOP LIGHT SWITCH | ||
| 107 | A 1152910076 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 110 | A 0079942041 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 122 | A 1242921074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 125 | N 912011008000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 128 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 128 | N 304017006020 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 131 | N 913017006000 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 134 | A 1409890098 | SEALING STRIP |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 137 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 140 | A 1409930510 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 146 | A 1402900885 | CABLE |
| STEERING LOCK | ||
| 146 | A 1402901185 | CABLE |
| STEERING LOCK | ||
| 149 | A 1402900585 | CABLE |
| TRANSMISSION | ||
| 149 | A 1402900685 | CABLE |
| TRANSMISSION | ||
