Transporto priemonė: 500 SEL / S 500; VIN numerio dalis: 140051

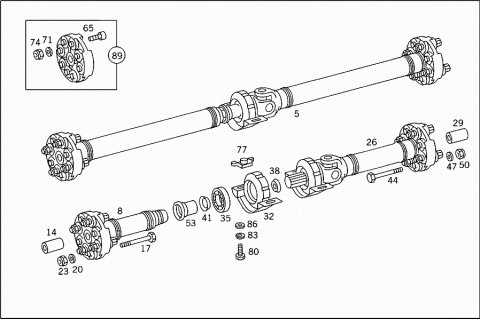

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1404107606 | PROPELLER SHAFT |
| 005 | A 1404107506 | PROPELLER SHAFT |
| 005 | A 1404101516 | PROPELLER SHAFT |
| 005 | A 1404101716 | PROPELLER SHAFT |
| 008 | A 1404101601 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1404102901 | PROPELLER SHAFT |
| FRONT | ||
| 014 | A 2014100232 | CENTERING BUSHING |
| Repalced by: A 1244101032 | ||
| 014 | A 1244101032 | CENTERING BUSHING |
| 017 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 017 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1,5 X 55 (DIN 912) | ||
| 020 | N 000125013008 | WASHER |
| 023 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 023 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 026 | A 1404105602 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1404105502 | PROPELLER SHAFT |
| REAR | ||
| 029 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 032 | A 1294101181 | RUBBER BOOT BEARING |
| Repalced by: A 1404100181 | ||
| 032 | A 1404100181 | RUBBER BOOT BEARING |
| Repalced by: A 1404100781 | ||
| 032 | A 1404100781 | RUBBER BOOT BEARING |
| 032 | A 1294101381 | RUBBER BOOT BEARING |
| Repalced by: A 1404100381 | ||
| 032 | A 1404100381 | RUBBER BOOT BEARING |
| Repalced by: A 1404100981 | ||
| 032 | A 1404100981 | RUBBER BOOT BEARING |
| 035 | A 1409810025 | BALL BEARING |
| 038 | A 1404110096 | PROTECTIVE CAP |
| 041 | A 1404110196 | PROTECTIVE CAP |
| 044 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 044 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1,5 X 55 (DIN 912) | ||
| 047 | N 000125013008 | WASHER |
| 050 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 050 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 053 | A 1404110097 | BOOT |
| 065 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 065 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1,5 X 55 (DIN 912) | ||
| 071 | N 000125013008 | WASHER |
| 074 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 074 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 077 | A 1404130017 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 080 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 080 | N 304017008021 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 083 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 086 | A 1249900440 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 089 | A 1294100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
