Transporto priemonė: 500 SL; VIN numerio dalis: 107046

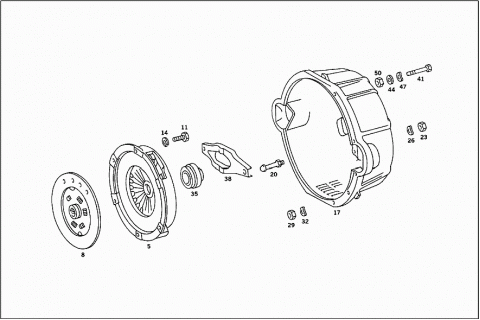

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0012507704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032504704 | ||
| 005 | A 0022502204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032504704 | ||
| 005 | A 0032504704 | CLUTCH PRESSURE PLATE |
| 005 | A 0012504204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042502304 | ||
| 005 | A 0042502304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042501904 | ||
| 005 | A 0042501904 | CLUTCH PRESSURE PLATE |
| 008 | A 0052503803 | CLUTCH DISC |
| Repalced by: A 0102503103 | ||
| 008 | A 0102503103 | CLUTCH DISC |
| 008 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 008 | A 0102502603 | CLUTCH DISC |
| FOUR-SPEED TRANSMISSION | ||
| 008 | A 0062505003 | CLUTCH DISC |
| Repalced by: A 0102502903 | ||
| 008 | A 0102502903 | CLUTCH DISC |
| FIVE-SPEED TRANSMISSION | ||
| A 1095860025 | REPAIR KIT | |
| A 1075860025 | REPAIR KIT | |
| A 1145860025 | REPAIR KIT | |
| 011 | N 000912008012 | SCREW |
| 011 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 011 | N 304017008034 | SCREW |
| 014 | N 912004008102 | LOCK WASHER |
| 017 | A 1172512501 | BELL HOUSING |
| 017 | A 1152512601 | BELL HOUSING |
| 017 | A 1152512701 | BELL HOUSING |
| Repalced by: A 1152506905 | ||
| 017 | A 1152506905 | HOUSING |
| 020 | A 1179910315 | BALL PIVOT |
| 020 | A 1159910115 | BALL PIVOT |
| 023 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 023 | N 304035010001 | NUT |
| 026 | N 000137010201 | SPRING WASHER |
| 029 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 029 | N 304032010002 | NUT |
| 032 | N 000137010201 | SPRING WASHER |
| N 000931010282 | SCREW | |
| N 000931010282 | SCREW | |
| 035 | A 0002505515 | RELEASE BEARING |
| 035 | A 0002506815 | RELEASE BEARING |
| 038 | A 1152900029 | RELEASE YOKE |
| 041 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 041 | A 0019909404 | SCREW |
| 041 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 041 | N 304017010050 | SCREW |
| 041 | N 000931010271 | SCREW |
| 041 | N 000931012149 | SCREW |
| 041 | N 000931012137 | SCREW |
| 044 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 044 | N 000125010532 | WASHER |
| 044 | N 000125013008 | WASHER |
| 047 | N 000137010201 | SPRING WASHER |
| 047 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 047 | N 000137012206 | SPRING WASHER |
| 050 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 050 | N 304032010002 | NUT |
| 050 | N 000934012021 | NUT |
