Transporto priemonė: 500 SL; VIN numerio dalis: 107046

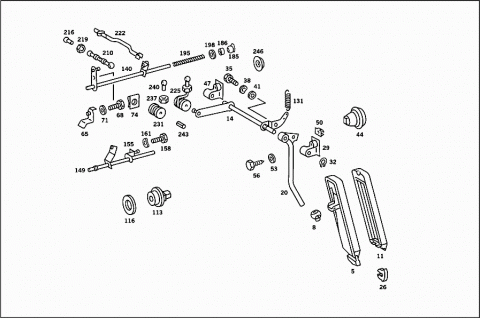

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1153000304 | ACCELERATOR PEDAL |
| Repalced by: A 1233000204 | ||
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| 008 | A 1233010022 | JOINT |
| 011 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 011 | A 1233000204 | ACCELERATOR PEDAL |
| 011 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 011 | A 1233000204 | ACCELERATOR PEDAL |
| 011 | A 1233010082 | PAD |
| 014 | A 1073002520 | SHAFT |
| 017 | A 1073000820 | SHAFT |
| 020 | A 1073010201 | LEVER |
| 023 | A 1073010301 | LEVER |
| 026 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 026 | A 1249888678 | CLIP |
| 029 | A 1153010818 | BEARING |
| 032 | N 900055012402 | RETAINING RING |
| 035 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 035 | N 304017008016 | SCREW |
| 038 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 038 | N 000137008212 | SPRING WASHER |
| 041 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 041 | N 000125008443 | WASHER |
| 044 | A 1079972581 | GROMMET |
| 047 | A 1153010818 | BEARING |
| 050 | A 0029886778 | CLIP |
| 050 | A 0029886778 | CLIP |
| 053 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 053 | N 000125006449 | WASHER |
| 053 | N 000125006449 | WASHER |
| 056 | N 007976005205 | SHEET METAL SCREW |
| 056 | N 007976005205 | SHEET METAL SCREW |
| 059 | N 000137005203 | SPRING WASHER |
| 062 | N 000934005008 | NUT |
| 065 | A 1093011020 | LEVER |
| 068 | N 000933005036 | SCREW |
| 071 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 071 | N 000433005304 | WASHER |
| 074 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 074 | N 000000002965 | SCREW |
| 113 | A 1153010241 | STOP |
| 116 | A 1159970640 | SEAL RING |
| 122 | A 0003000141 | KICK-DOWN SWITCH |
| 125 | A 1159970640 | SEAL RING |
| 128 | A 1153040151 | NUT |
| 131 | A 1869931810 | SPRING |
| 134 | A 1169930610 | SPRING |
| 140 | A 1073001120 | SHAFT |
| 143 | A 1073002120 | SHAFT |
| 143 | A 1073001920 | SHAFT |
| 149 | A 1073001520 | SHAFT |
| 149 | A 1073002420 | SHAFT |
| 152 | A 1073000125 | LEVER |
| Repalced by: A 1073000325 | ||
| 152 | A 1073000325 | LEVER |
| 155 | A 1073000025 | LEVER |
| 158 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 158 | N 304017006018 | SCREW |
| 161 | N 000137006204 | SPRING WASHER |
| 185 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| 185 | A 1263010485 | RUBBER BUFFER |
| 186 | A 1163010150 | BUSHING |
| 188 | N 006799004001 | LOCK PLATE |
| 191 | A 1233010273 | LOCK |
| 195 | A 1169935001 | SPRING |
| 198 | A 1093010051 | SPACER RING |
| 210 | A 1093000615 | ROD |
| 210 | A 1093000815 | ROD |
| 216 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 216 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 216 | A 0009930461 | CONICAL CUP |
| 219 | N 000934005008 | NUT |
| 222 | A 0003000115 | ROD |
| 222 | A 0003000415 | ROD |
| 222 | A 0003000415 | ROD |
| 222 | A 0003000015 | ROD |
| 222 | A 0003000515 | ROD |
| 225 | A 1073000415 | ROD |
| Repalced by: A 1073001015 | ||
| 225 | A 1073001015 | ROD |
| 231 | A 1213010097 | BOOT |
| Repalced by: A 1073010097 | ||
| 231 | A 1073010097 | DAMPING RING |
| 237 | N 000934005008 | NUT |
| 240 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 240 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 240 | A 0009930461 | CONICAL CUP |
| 243 | A 1150720450 | BUSHING |
| 246 | A 1169870144 | EXPANSION PLUG |
