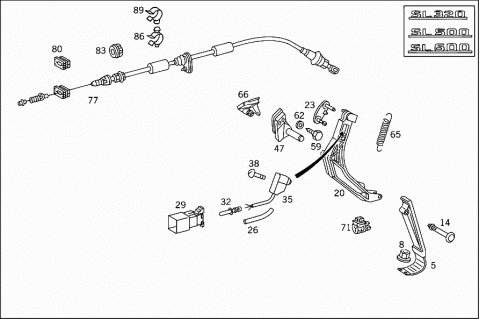

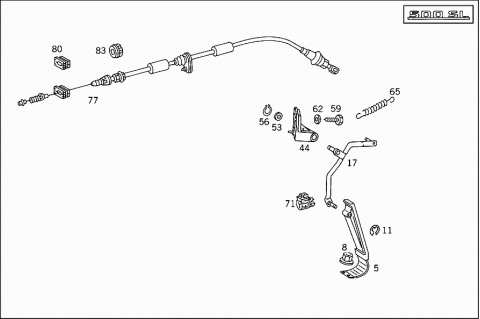

Transporto priemonė: 500 SL JAPAN; VIN numerio dalis: 129066
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 008 | A 0039904051 | NUT |
| Repalced by: A 0039900851 | ||
| 008 | A 0039900851 | NUT |
| Repalced by: A 0039905351 | ||
| 008 | A 0039905351 | NUT |
| Repalced by: A 1403010072 | ||
| 008 | A 1403010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 011 | N 006799005007 | LOCK PLATE |
| Repalced by: N 006799005009 | ||
| 011 | N 006799005009 | LOCK PLATE |
| LEVER TO ACCELERATOR PEDAL | ||
| 014 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 017 | A 1293000025 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 1293000325 | LEVER |
| ACCELERATOR PEDAL | ||
| 020 | A 1293010520 | LEVER |
| Repalced by: A 1293010920 | ||
| 020 | A 1293010920 | LEVER |
| ACCELERATOR PEDAL | ||
| 020 | A 1293010620 | LEVER |
| ACCELERATOR PEDAL | ||
| 023 | A 1243001625 | LEVER |
| 026 | N 040621005200 | INSULATING HOSE |
| 029 | A 0165459828 | PLUG |
| 029 | A 0165459828 | PLUG |
| 029 | A 0165459828 | PLUG |
| 032 | A 0165451428 | PLUG PIN |
| 032 | A 0165451428 | PLUG PIN |
| 032 | A 0165451428 | PLUG PIN |
| 035 | A 1405450114 | SWITCH |
| ACCELERATION SKID CONTROL (ASR) | ||
| 035 | A 1405450114 | SWITCH |
| ACCELERATION SKID CONTROL (ASR) | ||
| 035 | A 1405450114 | SWITCH |
| ACCELERATION SKID CONTROL (ASR) | ||
| 038 | A 0003010071 | SCREW |
| Repalced by: A 0049906112 | ||
| 038 | A 0003010071 | SCREW |
| Repalced by: A 0049906112 | ||
| 038 | A 0003010071 | SCREW |
| Repalced by: A 0049906112 | ||
| 038 | A 0049906112 | SCREW |
| SWITCH TO LEVER | ||
| 038 | A 0049906112 | SCREW |
| 038 | A 0049906112 | SCREW |
| 044 | A 1243010318 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 044 | A 2013010218 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 047 | A 1403000213 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| N 912007006001 | CLIP | |
| PEDAL LEVER TO BEARING | ||
| 053 | N 000988013100 | FITTED WASHER |
| ACCELERATOR PEDAL BEARING | ||
| 056 | N 000471012001 | LOCK RING |
| ACCELERATOR PEDAL BEARING | ||
| 059 | N 007976006208 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 059 | N 007976006211 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 062 | N 000125006421 | WASHER |
| BEARING TO FIRE WALL | ||
| Repalced by: N 000125006449 | ||
| 062 | N 000125006449 | WASHER |
| BEARING TO FIRE WALL | ||
| 065 | A 1249931010 | SPRING |
| ACCELERATOR PEDAL | ||
| 065 | A 1299930810 | SPRING |
| ACCELERATOR PEDAL | ||
| 065 | A 1299931010 | SPRING |
| ACCELERATOR PEDAL | ||
| 065 | A 1299930910 | SPRING |
| ACCELERATOR PEDAL | ||
| 066 | A 1293010118 | BEARING |
| 071 | A 0025452214 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 077 | A 1293002030 | WIRE CABLE |
| 077 | A 1293001630 | WIRE CABLE |
| 077 | A 1293000530 | WIRE CABLE |
| 077 | A 1293001230 | WIRE CABLE |
| 077 | A 1293000630 | WIRE CABLE |
| 077 | A 1293001330 | WIRE CABLE |
| 077 | A 1293001830 | WIRE CABLE |
| 077 | A 1293001430 | WIRE CABLE |
| 077 | A 1293002330 | WIRE CABLE |
| 077 | A 1293002230 | WIRE CABLE |
| 077 | A 1293001930 | WIRE CABLE |
| 077 | A 1293001530 | WIRE CABLE |
| 077 | A 1293002530 | WIRE CABLE |
| 077 | A 1293002430 | WIRE CABLE |
| 077 | A 1293000330 | WIRE CABLE |
| 077 | A 1293001030 | WIRE CABLE |
| 077 | A 1293002730 | WIRE CABLE |
| 077 | A 1293002630 | WIRE CABLE |
| 080 | A 2023010093 | GUIDE |
| 083 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 086 | A 0004760436 | BRACKET |
| WIRE CABLE TO FUEL HOSE | ||
| 089 | A 0009951765 | CLAMP |
| WIRE CABLE TO FUEL HOSE | ||
| 092 | A 1403010240 | BRACKET |
| 095 | A 1403010340 | BRACKET |

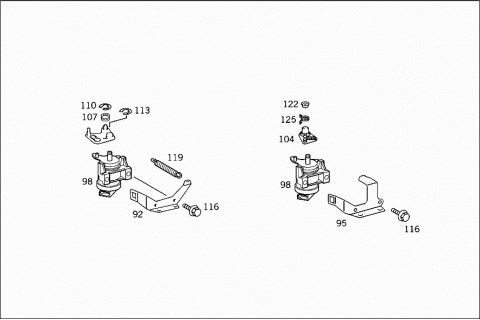

| 098 | A 0115428717 | SENDER UNIT |
| 098 | A 0115428717 | SENDER UNIT |
| Repalced by: A 0125423317 | ||
| 098 | A 0125423317 | SENDER UNIT |
| 104 | A 1403000128 | REVERSING LEVER |
| Repalced by: A 1403000528 | ||
| 104 | A 1403000528 | REVERSING LEVER |
| 107 | A 2103010011 | ROLLER |
| 110 | N 006799005009 | LOCK PLATE |
| 113 | N 006799007007 | LOCK PLATE |
| 116 | N 304017006016 | SCREW |
| 119 | A 6019930810 | SPRING |
| 122 | A 1403010043 | CLAMPING PIECE |
| AT REVERSING LEVER | ||
| 125 | A 1409930620 | SPRING |
| AT REVERSING LEVER | ||
