Transporto priemonė: 500 SL JAPAN; VIN numerio dalis: 129066

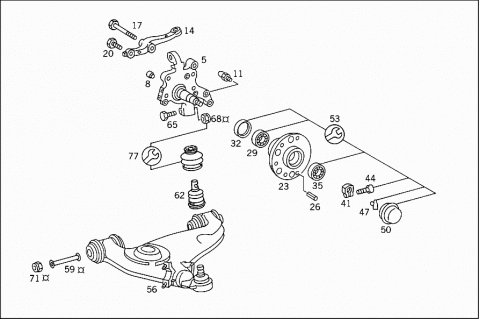

Grupė: 33 FRONT AXLE - 030 STEERING KNUCKLE AND CONTROL ARM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1293300020 | STEERING KNUCKLE |
| Repalced by: A 1293300220 | ||
| 005 | A 1293300020 | STEERING KNUCKLE |
| Repalced by: A 1293300220 | ||
| 005 | A 1293300220 | STEERING KNUCKLE |
| LEFT | ||
| 005 | A 1293300220 | STEERING KNUCKLE |
| LEFT | ||
| 005 | A 1293300120 | STEERING KNUCKLE |
| Repalced by: A 1293300320 | ||
| 005 | A 1293300120 | STEERING KNUCKLE |
| Repalced by: A 1293300320 | ||
| 005 | A 1293300320 | STEERING KNUCKLE |
| RIGHT | ||
| 005 | A 1293300320 | STEERING KNUCKLE |
| RIGHT | ||
| 008 | A 2013320174 | PIN |
| (CENTERING PIN) | ||
| 008 | A 2013320274 | PIN |
| (CENTERING PIN) | ||
| 008 | A 1293320074 | PIN |
| (CENTERING PIN) | ||
| 011 | A 1293300080 | PIN |
| STEERING STOP | ||
| 014 | A 1293320020 | STEERING ARM |
| Repalced by: A 1293320320 | ||
| 014 | A 1293320320 | STEERING ARM |
| LEFT | ||
| 014 | A 1293320120 | STEERING ARM |
| Repalced by: A 1293320420 | ||
| 014 | A 1293320420 | STEERING ARM |
| RIGHT | ||
| 017 | N 914125012228 | SCREW |
| Repalced by: A 1299901401 | ||
| 017 | A 1299901401 | SCREW |
| STEERING ARM TO STEERING KNUCKLE | ||
| 020 | N 914125012430 | SCREW |
| Repalced by: A 1244210571 | ||
| 020 | A 1244210571 | HEXAGON HEAD BOLT |
| STEERING ARM TO STEERING KNUCKLE | ||
| 023 | A 1293300125 | FRONT WHEEL HUB |
| Repalced by: A 1293300425 | ||
| 023 | A 1293300425 | FRONT WHEEL HUB |
| 023 | A 1293300525 | FRONT WHEEL HUB |
| 026 | N 001481012018 | CLAMPING SLEEVE |
| Repalced by: A 1299910041 | ||
| 026 | A 1299910041 | CLAMPING PIN |
| Repalced by: N 001481012018 | ||
| 026 | N 001481012018 | CLAMPING SLEEVE |
| BRAKE DISC TO WHEEL HUB | ||
| 029 | A 0019803002 | TAPERED ROLLER BEARING |
| Repalced by: A 0029801902 | ||
| 029 | A 0029801902 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 032 | A 0159971447 | SEAL RING |
| Repalced by: A 0199978847 | ||
| 032 | A 0199978847 | SEAL RING |
| 035 | A 0009809302 | TAPERED ROLLER BEARING |
| Repalced by: A 0029802002 | ||
| 035 | A 0029802002 | TAPERED ROLLER BEARING |
| Repalced by: A 2119800002 | ||
| 035 | A 2119800002 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| Repalced by: A 0029806502 | ||
| 035 | A 0029806502 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| A 1293340076 | WASHER | |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 041 | A 1163340372 | NUT |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 044 | N 000912006053 | SCREW |
| Repalced by: N 000912006176 | ||
| 044 | N 000912006176 | SCREW |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 047 | A 2015470085 | CONTACT SPRING |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 050 | A 2013340125 | HUB CAP |
| Repalced by: A 1683570089 | ||
| 050 | A 1683570089 | LOCKING CAP |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 053 | A 1293300051 | REPAIR KIT |
| Repalced by: A 1293300151 | ||
| 053 | A 1293300151 | ANTI-FRICTION BEARING |
| Repalced by: A 1293300351 | ||
| 053 | A 1293300351 | ANTI-FRICTION BEARING |
| FRONT WHEEL BEARING | ||
| 056 | A 1243303007 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 056 | A 1243303407 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 056 | A 1243303407 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 056 | A 1243303107 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 056 | A 1243303507 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 056 | A 1243303507 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 059 | A 2013330043 | CLAMPING PIECE |
| 062 | A 1243330327 | SUPPORTING JOINT |
| 065 | A 2019901601 | SCREW |
| Repalced by: A 1299901001 | ||
| 065 | A 1299901001 | SCREW |
| LOWER CONTROL ARM TO STEERING KNUCKLE | ||
| 068 | N 913004012009 | NUT |
| LOWER CONTROL ARM TO STEERING KNUCKLE | ||
| 071 | N 913001014001 | NUT |

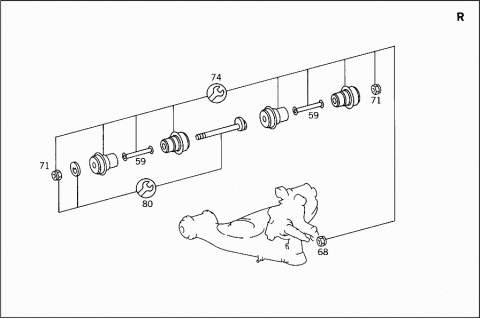

| LOWER CONTROL ARM TO FRAME | ||
| 071 | A 2013330072 | SCREWED INSERT |
| LOWER CONTROL ARM TO FRAME | ||
| 074 | A 1243300575 | REPAIR KIT |
| LOWER CONTROL ARM TO FRAME | ||
| 074 | A 1243300675 | REPAIR KIT |
| LOWER CONTROL ARM TO FRAME | ||
| 077 | A 2013300085 | REPAIR KIT |
| LOWER CONTROL ARM JOINT BOOT | ||
| 080 | A 2013300018 | REPAIR KIT |
| ECCENTRIC PIN | ||
