Transporto priemonė: 500 SL JAPAN; VIN numerio dalis: 129066

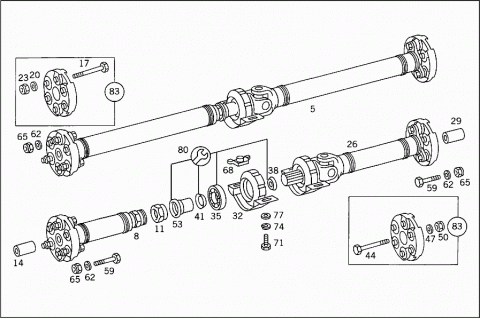

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1294103206 | PROPELLER SHAFT |
| Repalced by: A 1294104006 | ||
| 005 | A 1294104006 | PROPELLER SHAFT |
| 005 | A 1294104706 | PROPELLER SHAFT |
| 005 | A 1294101806 | PROPELLER SHAFT |
| Repalced by: A 1294102106 | ||
| 005 | A 1294102106 | PROPELLER SHAFT |
| Repalced by: A 1294102406 | ||
| 005 | A 1294102406 | PROPELLER SHAFT |
| Repalced by: A 1294102606 | ||
| 005 | A 1294102606 | PROPELLER SHAFT |
| 005 | A 1294102306 | PROPELLER SHAFT |
| Repalced by: A 1294102706 | ||
| 005 | A 1294102706 | PROPELLER SHAFT |
| Repalced by: A 1294104106 | ||
| 005 | A 1294104106 | PROPELLER SHAFT |
| 005 | A 1294104306 | PROPELLER SHAFT |
| 005 | A 1294102506 | PROPELLER SHAFT |
| Repalced by: A 1294102806 | ||
| 005 | A 1294102806 | PROPELLER SHAFT |
| Repalced by: A 1294104206 | ||
| 005 | A 1294104206 | PROPELLER SHAFT |
| 005 | A 1294104406 | PROPELLER SHAFT |
| Repalced by: A 1294105106 | ||
| 005 | A 1294105106 | PROPELLER SHAFT |
| 008 | A 1294100901 | PROPELLER SHAFT |
| Repalced by: A 1294101801 | ||
| 008 | A 1294101801 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1294102301 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1294101001 | PROPELLER SHAFT |
| Repalced by: A 1294101301 | ||
| 008 | A 1294101301 | PROPELLER SHAFT |
| Repalced by: A 1294101901 | ||
| 008 | A 1294101901 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1294102201 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1294101201 | PROPELLER SHAFT |
| Repalced by: A 1294102001 | ||
| 008 | A 1294102001 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1294102101 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 011 | A 1104110172 | NUT |
| FRONT | ||
| TO 129 410 10 01 | ||
| 014 | A 1244100732 | CENTERING BUSHING |
| FRONT | ||
| 014 | A 2014100232 | CENTERING BUSHING |
| Repalced by: A 1244101032 | ||
| 014 | A 1244101032 | CENTERING BUSHING |
| FRONT | ||
| 017 | A 1409903301 | BOLT W FLANGE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X57.5 | ||
| 017 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 017 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 017 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 017 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 020 | N 000125013008 | WASHER |
| 020 | N 000125013008 | WASHER |
| 020 | N 000125013008 | WASHER |
| 023 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 023 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 023 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 023 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 026 | A 1294102302 | PROPELLER SHAFT |
| Repalced by: A 1294102802 | ||
| 026 | A 1294102802 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1294101102 | PROPELLER SHAFT |
| Repalced by: A 1294101402 | ||
| 026 | A 1294101402 | PROPELLER SHAFT |
| Repalced by: A 1294101702 | ||
| 026 | A 1294101702 | PROPELLER SHAFT |
| Repalced by: A 1294101902 | ||
| 026 | A 1294101902 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1294101602 | PROPELLER SHAFT |
| Repalced by: A 1294102002 | ||
| 026 | A 1294102002 | PROPELLER SHAFT |
| Repalced by: A 1294103002 | ||
| 026 | A 1294103002 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1294103302 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1294101802 | PROPELLER SHAFT |
| Repalced by: A 1294102102 | ||
| 026 | A 1294102102 | PROPELLER SHAFT |
| Repalced by: A 1294103102 | ||
| 026 | A 1294103102 | PROPELLER SHAFT |
| REAR | ||
| 029 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 032 | A 1294100581 | RUBBER BOOT BEARING |
| Repalced by: A 1294101981 | ||
| 032 | A 1294101981 | RUBBER BOOT BEARING |
| 032 | A 1294100381 | RUBBER BOOT BEARING |
| Repalced by: A 1294101181 | ||
| 032 | A 1294101181 | RUBBER BOOT BEARING |
| Repalced by: A 1404100181 | ||
| 032 | A 1404100181 | RUBBER BOOT BEARING |
| Repalced by: A 1404100781 | ||
| 032 | A 1404100781 | RUBBER BOOT BEARING |
| 032 | A 1294101581 | RUBBER BOOT BEARING |
| Repalced by: A 1404100581 | ||
| 032 | A 1404100581 | RUBBER BOOT BEARING |
| Repalced by: A 1404101181 | ||
| 032 | A 1404101181 | RUBBER BOOT BEARING |
| 035 | A 0039812325 | BALL BEARING |
| 038 | A 1074110296 | PROTECTIVE CAP |
| 041 | A 1234110096 | PROTECTIVE CAP |
| 044 | A 1409903301 | BOLT W FLANGE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X57.5 | ||
| 044 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 044 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 044 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 044 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 047 | N 000125013008 | WASHER |
| 047 | N 000125013008 | WASHER |
| 047 | N 000125013008 | WASHER |
| 050 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 050 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 050 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 050 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 053 | A 1154110697 | BOOT |
| Repalced by: A 2024110097 | ||
| 053 | A 2024110097 | BOOT |
| Repalced by: A 2024110497 | ||
| 053 | A 2024110497 | BOOT |
| 059 | A 1409903301 | BOLT W FLANGE |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12X1.5X57.5 | ||
| 059 | N 000960012435 | SCREW |
| Repalced by: A 1409902901 | ||
| 059 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 059 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 55 (DIN 912) | ||
| 059 | A 1409902801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 65 | ||
| 062 | N 000125013008 | WASHER |
| 062 | N 000125013008 | WASHER |
| 062 | N 000125013008 | WASHER |
| 065 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 065 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 065 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 065 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 068 | A 1404130017 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 071 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 071 | N 304017008021 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 074 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 077 | A 1249900440 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 080 | A 1244100110 | INTERMEDIATE BEARING |
| REPAIR KIT | ||
| 083 | A 1294100015 | FLEXIBLE JOINT DISC |
| Repalced by: A 2104100815 | ||
| 083 | A 2104100815 | FLEXIBLE JOINT DISC |
| Repalced by: A 1704100015 | ||
| 083 | A 1704100015 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 083 | A 1294100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 083 | A 1294100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 083 | A 2104100615 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
