Transporto priemonė: 560 SEC JAPAN; VIN numerio dalis: 126045

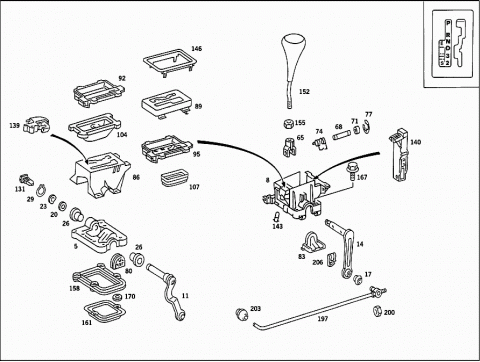

Grupė: 26 TRANSMISSION - 060 FLOOR SHIFT,AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1262670105 | BEARING |
| Repalced by: A 1262670137 | ||
| 005 | A 1262670137 | BEARING BRACKET |
| 008 | A 1262670337 | BEARING BRACKET |
| 011 | A 1262600738 | SHAFT |
| 014 | A 1262600838 | SHAFT |
| 017 | A 1159920310 | BUSHING |
| 020 | A 2012671376 | WASHER |
| 023 | N 900055016001 | SPRING WASHER |
| 026 | A 1152671250 | BUSHING |
| 029 | N 000471016001 | LOCK RING |
| 032 | A 1242606737 | LEVER |
| (LOCK-OUT LEVER),BRAKE | ||
| 035 | N 001444006106 | PIN |
| (LOCK-OUT LEVER),BRAKE | ||
| 038 | N 000137006204 | SPRING WASHER |
| (LOCK-OUT LEVER),BRAKE | ||
| 041 | A 1242670740 | BRACKET |
| (LOCK-OUT LEVER),BRAKE | ||
| 044 | A 1242606937 | LEVER |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 047 | A 1292670174 | PIN |
| Repalced by: A 1292670274 | ||
| 047 | A 1292670274 | PIN |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 050 | N 914128004300 | SHEET METAL SCREW |
| 053 | A 1242670676 | WASHER |
| (CAM PLATE) | ||
| 056 | A 1249945241 | LOCK |
| (CAM PLATE) | ||
| 059 | N 913001006003 | NUT |
| 062 | A 1242671040 | BRACKET |
| 065 | A 1262670123 | YOKE |
| 068 | A 1152670174 | PIN |
| 071 | A 1152670950 | BUSHING |
| 074 | A 1269930120 | SPRING |
| 074 | A 1299930020 | SPRING |
| 077 | N 006799005002 | LOCK PLATE |
| 080 | A 1152670376 | WASHER |
| 083 | A 1262670076 | COVERING |
| 086 | A 1262600772 | SHIFT CASE |
| 089 | A 1262671147 | SLOTTED GATE |
| 092 | A 1265400441 | GROUND STRAP |
| Repalced by: A 1265400149 | ||
| 092 | A 1265400149 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 095 | A 1265400849 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 104 | A 1262670297 | BOOT |
| 107 | A 1292670097 | BOOT |
| 131 | A 1262670940 | BRACKET |
| 139 | A 1265450114 | SWITCH |
| 1ST SPEED | ||
| 140 | A 1295450014 | SWITCH |
| 1ST SPEED | ||
| 143 | N 072601012230 | BULB |
| W5/1,2-12V 1,2W | ||
| 146 | A 1262670088 | COVERING |
| 152 | B 66268107 | GEARSHIFT LEVER |
| GEARSHIFT LEVER WITH LEATHER COVER | ||
| 152 | B 66268136 | GEARSHIFT LEVER |
| GEARSHIFT LEVER WITH LEATHER COVER | ||
| 155 | N 070616010003 | NUT |
| RANGE SELECTOR LEVER | ||
| 158 | A 1262670080 | GASKET |
| BEARING BRACKET TO TUNNEL | ||
| 161 | A 1262670280 | GASKET |
| BEARING BRACKET TO TUNNEL | ||
| 164 | A 1245844038 | GUMMED LABEL |
| Repalced by: A 1245844738 | ||
| 164 | A 1245844738 | GUMMED LABEL |
| IN ENGLISH | ||
| 167 | N 914130006100 | SCREW |
| BEARING BRACKET TO TUNNEL | ||
| 170 | A 1369901340 | WASHER |
| BEARING BRACKET TO TUNNEL | ||
| 173 | A 1262600151 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 176 | A 1262670064 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 179 | N 916016005100 | CLAMP |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 182 | N 914128004301 | SHEET METAL SCREW |
| Repalced by: N 007976004211 | ||
| 182 | N 007976004211 | SHEET METAL SCREW |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 185 | A 1242670206 | COVER |
| 188 | A 0049886878 | CLIP |
| 191 | A 1242670840 | BRACKET |
| 194 | A 0019974390 | LOOM TIE |
| 197 | A 1262601033 | SHIFTING ROD |
| Repalced by: A 1262603433 | ||
| 197 | A 1262603433 | SHIFTING ROD |
| 197 | A 1262603633 | SHIFTING ROD |
| 200 | N 070616010004 | NUT |
| 203 | A 1159920310 | BUSHING |
| RANGE SELECTOR LEVER | ||
| 206 | A 0009942960 | LOCK |
| SHIFTING ROD | ||
