Transporto priemonė: 560 SL JAPAN; VIN numerio dalis: 107048

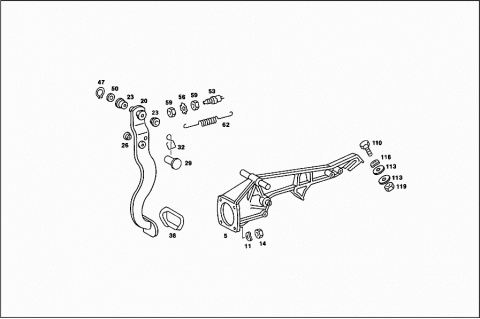

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1072900119 | BEARING BRACKET |
| 011 | N 000137008204 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 014 | A 2019900150 | NUT |
| Repalced by: N 000934008010 | ||
| 014 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 014 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 020 | A 1072902218 | PEDAL |
| 023 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 023 | A 1242920050 | BUSHING |
| 026 | A 1262920050 | BUSHING |
| 029 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 032 | N 912011008000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 038 | A 1232910082 | PAD |
| 047 | N 000471016001 | LOCK RING |
| 050 | A 1152910076 | WASHER |
| 053 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 056 | N 006797012251 | TOOTHED WASHER |
| STOP LIGHT SWITCH | ||
| 059 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 062 | A 1249931310 | SPRING |
| 110 | N 000933006123 | SCREW |
| 113 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 113 | N 009021006208 | WASHER |
| 116 | N 000137006204 | SPRING WASHER |
| 119 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 119 | N 304032006008 | NUT |
