Transporto priemonė: 560 SL JAPAN; VIN numerio dalis: 107048

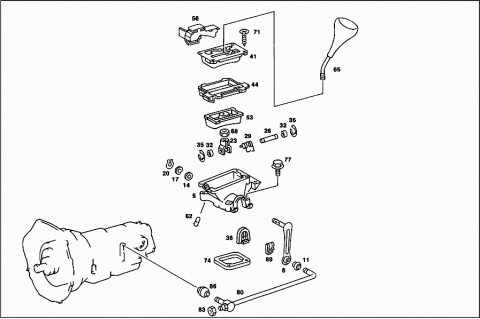

Grupė: 26 TRANSMISSION - 060 FLOOR SHIFT,AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| FOR TRANSMISSION,SEE MICROFICHE NO.: | ||
| 481 | ||
| 005 | A 1072670005 | BEARING |
| 008 | A 2012600538 | SHAFT |
| 011 | A 1159920310 | BUSHING |
| 014 | A 2012671376 | WASHER |
| 017 | N 900055016001 | SPRING WASHER |
| 020 | N 000471016001 | LOCK RING |
| 023 | A 1262670123 | YOKE |
| 026 | A 1152670174 | PIN |
| SHIFT LEVER BEARING | ||
| 029 | A 1269930120 | SPRING |
| 032 | A 1152670950 | BUSHING |
| 035 | N 006799005002 | LOCK PLATE |
| 038 | A 2012670376 | COVERING |
| Repalced by: A 2012671676 | ||
| 038 | A 2012671676 | COVERING |
| 041 | A 1242600172 | SHIFT CASE |
| 044 | A 1245400149 | INDICATOR |
| Repalced by: A 1245400049 | ||
| 044 | A 1245400049 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 053 | A 2012670297 | BOOT |
| 056 | A 1245450014 | SWITCH |
| 1ST SPEED | ||
| 062 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 062 | A 0008250094 | BULB |
| 065 | B 66268103 | GEARSHIFT LEVER |
| GEARSHIFT LEVER WITH LEATHER COVER | ||
| 068 | N 070616010003 | NUT |
| RANGE SELECTOR LEVER | ||
| 071 | N 007982003241 | SHEET METAL SCREW |
| SLOTTED GATE TO FLOOR SHIFT | ||
| 074 | A 2012670180 | GASKET |
| Repalced by: A 2012670380 | ||
| 074 | A 2012670380 | GASKET |
| BEARING BRACKET TO TUNNEL | ||
| 077 | N 914130006100 | SCREW |
| BEARING BRACKET TO TUNNEL | ||
| 080 | A 1072603333 | SHIFTING ROD |
| 083 | N 070616010004 | NUT |
| 086 | A 1159920310 | BUSHING |
| RANGE SELECTOR LEVER | ||
| 089 | A 0009942960 | LOCK |
| SHIFTING ROD | ||
