Transporto priemonė: 600; VIN numerio dalis: 100012
Grupė: 27 AUTOMATIC DB TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

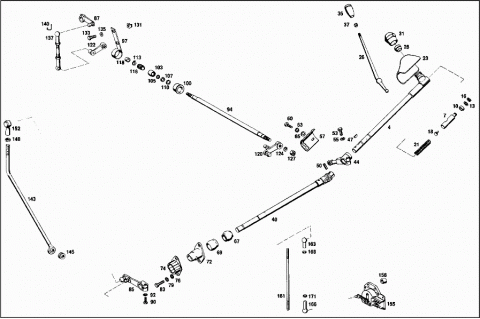

| A 1002600982 | SHIFTING TUBE | |
| 004 | A 1002601682 | SHIFTING TUBE |
| A 1002680239 | GUIDE PIVOT | |
| 007 | A 1002680339 | GUIDE PIVOT |
| 010 | A 1119971240 | SEAL RING |
| 013 | A 1869906940 | WASHER |
| 016 | A 1862680273 | LOCK |
| A 1862680274 | PIN | |
| 018 | A 1002680374 | PIN |
| 021 | A 1209932101 | SPRING |
| 023 | A 1002680897 | BOOT |
| A 1002680997 | BOOT | |
| A 1002680024 | SHIFT LEVER | |
| Repalced by: A 1002680124 | ||
| A 1002680124 | SHIFT LEVER | |
| 026 | A 1002680224 | SHIFT LEVER |
| Repalced by: A 1002680424 | ||
| 026 | A 1002680424 | SHIFT LEVER |
| 028 | A 1112680392 | RUBBER PAD |
| 031 | A 1002680457 | COVER |
| A 1082680242 | KNOB | |
| 035 | A 1152681442 | KNOB |
| 037 | A 1152680172 | NUT |
| A 1002600682 | SHIFTING TUBE | |
| 040 | A 1002601882 | SHIFTING TUBE |
| A 1002600782 | SHIFTING TUBE | |
| A 1002601982 | SHIFTING TUBE | |
| A 1002680322 | REVERSING LEVER | |
| 044 | A 1002680822 | REVERSING LEVER |
| A 1002680422 | REVERSING LEVER | |
| A 1002680922 | REVERSING LEVER | |
| 047 | N 006888003000 | WOODRUFF KEY |
| 050 | N 001481004003 | CLAMPING SLEEVE |
| 053 | N 000933006127 | SCREW |
| 055 | N 912004006102 | LOCK WASHER |
| 057 | A 1002680847 | SLOTTED GATE |
| A 1002680947 | SLOTTED GATE | |
| A 1002681247 | SLOTTED GATE | |
| 060 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 060 | N 304017006016 | SCREW |
| 063 | N 912004006102 | LOCK WASHER |
| 065 | N 000125006421 | WASHER |
| A 1009950001 | CLAMP | |
| Repalced by: A 1169950001 | ||
| A 1169950001 | CLAMP | |
| 067 | A 1002600395 | BEARING |
| 069 | A 1002680635 | BEARING |
| 072 | A 1002680550 | BUSHING |
| 074 | A 1002680257 | COVER |
| 076 | N 000125006421 | WASHER |
| 079 | N 912004006102 | LOCK WASHER |
| 083 | N 000933006130 | SCREW |
| 085 | A 1002600415 | LEVER |
| 087 | A 1002600515 | LEVER |
| 090 | N 000931006016 | SCREW |
| 092 | N 912004006102 | LOCK WASHER |
| 094 | A 1002680032 | SHAFT |
| 097 | A 1002600595 | BEARING |
| RIGHT | ||
| A 1002600695 | BEARING | |
| LEFT | ||
| 100 | A 1112680086 | RUBBER RING |
| 103 | A 1119910029 | BALL |
| 105 | A 1802680076 | WASHER |
| 107 | A 1119971040 | SEAL RING |
| 110 | N 000988010000 | FITTED WASHER |
| 113 | N 000471010000 | LOCK RING |
| 116 | A 0009811810 | NEEDLE BEARING |
| 118 | A 1129910340 | SPACER TUBE |
| 120 | A 1002600481 | LEVER |
| LEFT | ||
| 122 | A 1002600581 | LEVER |
| RIGHT | ||
| 124 | N 000127007200 | LOCK WASHER |
| 127 | N 000934007000 | NUT |
| 131 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 131 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 131 | A 0019906791 | NUT RETAINER |
| 133 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 133 | N 304017006016 | SCREW |
| 135 | N 000125006407 | WASHER |
| 137 | A 1002600066 | BALL SOCKET |
| 140 | N 071805010400 | SECURING CLIP |
| 143 | A 1002601333 | SHIFTING ROD |
| A 1002602433 | SHIFTING ROD | |
| A 1002602033 | SHIFTING ROD | |
| 145 | A 1122680150 | BUSHING |
| 148 | N 070616010000 | NUT |
| 152 | A 0009913822 | BALL SOCKET |
| N 071805013400 | SECURING CLIP | |
| 155 | A 0015456724 | SWITCH,AUTOMATIC |
| STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH | ||
| 158 | A 1005450053 | SPACER TUBE |
| SWITCH TO FIRE WALL | ||
| N 000933006194 | SCREW | |
| SWITCH TO FIRE WALL | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| SWITCH TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| SWITCH TO FIRE WALL | ||
| 161 | N 900331005072 | PULL ROD |
| N 900331005075 | PULL ROD | |
| 163 | A 1009910222 | BALL SOCKET |
| 166 | A 1009910322 | BALL SOCKET |
| L.H. THREAD | ||
| 168 | N 000934005008 | NUT |
| 171 | N 000934005010 | NUT |
| L.H. THREAD | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| N 000125008407 | WASHER | |
| N 900055008002 | SPRING WASHER | |
| N 000094003000 | COTTER PIN | |

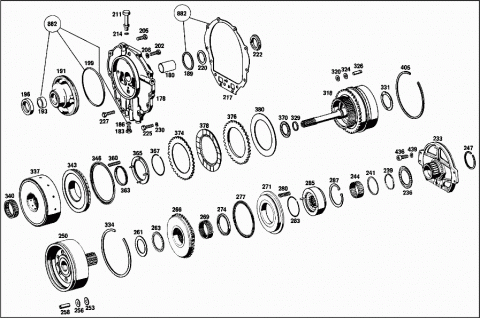

| 175 | A 1002700301 | AUTOMATIC TRANSMISSION |
| Repalced by: A 1092700901 | ||
| 175 | A 1092700901 | AUTOMATIC TRANSMISSION |
| 178 | A 1002700105 | COVER |
| 180 | A 1122710550 | BUSHING |
| 183 | A 1129970530 | SCREW PLUG |
| 183 | A 1129970530 | SCREW PLUG |
| 186 | N 007603010100 | SEAL RING |
| 186 | N 007603010100 | SEAL RING |
| 189 | A 1002720155 | SEAL RING |
| 191 | A 1002700590 | HOUSING |
| 193 | A 1122772850 | BUSHING |
| 196 | A 0029977346 | SEAL RING |
| 199 | A 0029978248 | SEAL RING |
| 202 | N 006912008000 | SCREW |
| 205 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 205 | N 304017008034 | SCREW |
| 208 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 208 | N 000137008212 | SPRING WASHER |
| 211 | A 1002700282 | BREATHER |
| 214 | N 007603010100 | SEAL RING |
| 217 | A 1122710480 | GASKET |
| Repalced by: A 1122711380 | ||
| 217 | A 1122711380 | GASKET |
| 220 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| A 1122710152 | SPACER WASHER | |
| Repalced by: A 1122710052 | ||
| A 1122710052 | SPACER WASHER | |
| 0.2 MM | ||
| A 1122710252 | SPACER WASHER | |
| 0.5 MM | ||
| 222 | A 1122710062 | THRUST WASHER |
| 225 | N 000933007019 | SCREW |
| 227 | N 000933007020 | SCREW |
| 230 | N 000137007201 | SPRING WASHER |
| 233 | A 1002702320 | FLANGE |
| 236 | A 0019812510 | NEEDLE BEARING |
| 239 | A 0009940134 | SNAP RING |
| 241 | A 1002721362 | GUARD PLATE |
| 244 | A 0019812310 | NEEDLE BEARING |
| 247 | A 1002720155 | SEAL RING |
| 250 | A 1002701443 | PLANETARY CARRIER |
| 253 | A 1122723862 | GUARD PLATE |
| 256 | A 1122723662 | GUARD PLATE |
| 258 | A 1122720174 | PIN |
| 261 | A 0002721162 | GUARD PLATE |
| 263 | A 1009810110 | NEEDLE BEARING |
| A 1002702620 | FLANGE | |
| 266 | A 1092701020 | FLANGE |
| 269 | A 0009814610 | NEEDLE BEARING |
| A 1002720331 | PISTON | |
| 271 | A 1092720531 | PISTON |
| 274 | A 1152721492 | BOOT |
| A 1002720192 | BOOT | |
| 277 | A 1092720192 | BOOT |
| 280 | A 1009933901 | SPRING |
| 283 | A 1129940035 | SNAP RING |
| 285 | A 1002700239 | OUTER RING |
| 287 | A 0009949441 | LOCK |
| A 1002721224 | DISC SUPPORT | |
| 2 RD SPEED | ||
| 290 | A 1002722124 | DISC SUPPORT |
| 2 RD SPEED | ||
| A 1002722324 | DISC SUPPORT | |
| 2 RD SPEED | ||
| 293 | A 1122720173 | LOCK |
| A 1122720626 | OUTER DISC | |
| Repalced by: A 1122721126 | ||
| A 1122721126 | OUTER DISC | |
| 297 | A 1002720026 | OUTER DISC |
| Repalced by: A 1092721826 | ||
| 297 | A 1092721826 | OUTER DISC |
| A 1092720526 | OUTER DISC | |
| 300 | A 1122720225 | INNER DISC |
| 300 | A 1122720225 | INNER DISC |
| A 1092720826 | OUTER DISC | |
| 303 | A 1092720826 | OUTER DISC |
| 306 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| 309 | A 1129940039 | WIRE RING |
| A 1122720073 | LOCK | |
| 312 | A 1122720473 | LOCK |

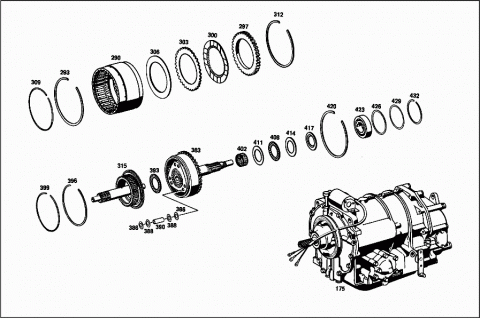

| 315 | A 1002701125 | DRIVE SHAFT |
| A 1002701543 | PLANETARY CARRIER | |
| 318 | A 1092700843 | PLANETARY CARRIER |
| 320 | A 1122723762 | GUARD PLATE |
| 324 | A 1122723562 | GUARD PLATE |
| 326 | A 1002720174 | PIN |
| 329 | A 1002720355 | SEAL RING |
| 331 | A 1122720062 | GUARD PLATE |
| A 1122720173 | LOCK | |
| 334 | A 1002720573 | LOCK |
| A 1009940139 | WIRE RING | |
| A 1002701420 | FLANGE | |
| A 1002704320 | FLANGE | |
| 337 | A 1092700820 | FLANGE |
| 340 | A 0009814610 | NEEDLE BEARING |
| 343 | A 1122722231 | PISTON |
| A 1092720331 | PISTON | |
| 346 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 346 | A 3162720792 | BOOT |
| A 1092720092 | BOOT | |
| Repalced by: A 3162720892 | ||
| A 3162720892 | BOOT | |
| A 1009937001 | SPRING | |
| 360 | A 1009937801 | SPRING |
| 363 | A 1152721492 | BOOT |
| A 1122720664 | SPRING RETAINER | |
| 365 | A 1002700041 | BRACKET |
| 367 | A 1129940035 | SNAP RING |
| 370 | A 0009814710 | NEEDLE BEARING |
| 374 | A 1092721526 | OUTER DISC |
| 374 | A 1092721526 | OUTER DISC |
| 376 | A 1092720526 | OUTER DISC |
| A 1092720826 | OUTER DISC | |
| A 1092721526 | OUTER DISC | |
| 378 | A 1122720225 | INNER DISC |
| 378 | A 1122720225 | INNER DISC |
| 380 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| 383 | A 1002701643 | PLANETARY CARRIER |
| 386 | A 1122723862 | GUARD PLATE |
| 388 | A 1122723662 | GUARD PLATE |
| 390 | A 1122720174 | PIN |
| 393 | A 0009819910 | NEEDLE BEARING |
| 396 | A 1152720273 | LOCK |
| 399 | A 1129940735 | SNAP RING |
| 402 | A 0009814810 | NEEDLE BEARING |
| 405 | A 1122720173 | LOCK |
| 408 | A 1009810010 | NEEDLE BEARING |
| 411 | A 0002721062 | GUARD PLATE |
| 414 | A 1002720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1002720252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 417 | A 1122721962 | GUARD PLATE |
| 420 | A 1002720173 | LOCK |
| 423 | N 000625506207 | GROOVED BALL BEARING |
| 426 | A 1122720952 | SPACER WASHER |
| 429 | A 1122720652 | SPACER WASHER |
| 0.1 MM | ||
| A 1122720752 | SPACER WASHER | |
| 0.15 MM | ||
| A 1122720852 | SPACER WASHER | |
| Repalced by: A 1122720652 | ||
| A 1122720652 | SPACER WASHER | |
| 0.20 MM | ||
| 432 | A 0009941640 | SNAP RING |
| 436 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 436 | N 000000000190 | SCREW |
| 439 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 439 | N 000137008212 | SPRING WASHER |

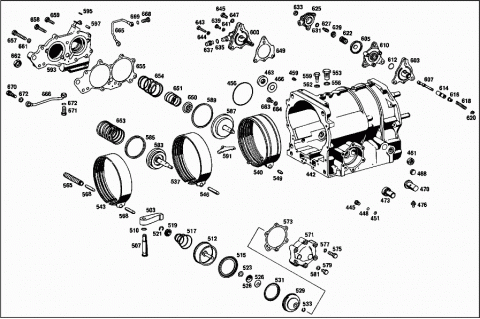

| 442 | A 1002701011 | TRANSMISSION CASE |
| 445 | A 1002770178 | VALVE BODY |
| 448 | A 0079978045 | SEAL RING |
| 451 | N 005401310000 | BALL |
| N 900421006001 | THREADED INSERT | |
| N 900421007000 | THREADED INSERT | |
| N 900421008003 | THREADED INSERT | |
| A 1002720851 | SPACER RING | |
| 456 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 456 | A 0149976148 | SEAL RING |
| 459 | A 1002700289 | VALVE |
| 461 | N 006503010100 | SEAL RING |
| 463 | A 0019972346 | SEAL RING |
| BRAKE BAND PISTON | ||
| 466 | A 1129900240 | WASHER |
| 468 | A 1129970335 | PLUG |
| 470 | A 1122701389 | VALVE |
| BRAKE BAND 1 | ||
| 473 | A 1002700189 | VALVE |
| BRAKE BAND 2 | ||
| 476 | A 1122770747 | TUBE |
| REPAIR SIZE 6,1 MM | ||
| 478 | A 1002700356 | LEVER |
| 480 | A 1122700357 | DETENT |
| 483 | N 000125006421 | WASHER |
| 486 | N 000093006400 | LOCK PLATE |
| 488 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 488 | N 304032006008 | NUT |

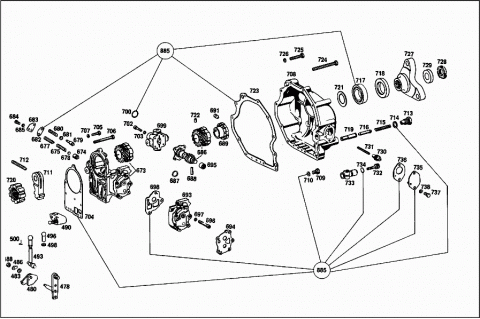

| 490 | A 1002700064 | SHIFTING FORK |
| PARKING INTERLOCK | ||
| 493 | A 1002700365 | LINKAGE |
| 496 | N 071805010204 | BALL SOCKET |
| 498 | N 000439006100 | NUT |
| 500 | N 071805010400 | SECURING CLIP |
| 503 | A 1002770124 | LEVER |
| REVERSE SPEED | ||
| 507 | A 1002770374 | PIN |
| REVERSE SPEED | ||
| 510 | A 0059979845 | SEAL RING |
| REVERSE SPEED | ||
| 512 | A 1002701332 | PISTON |
| REVERSE SPEED | ||
| 515 | A 1122770192 | BOOT |
| 517 | A 1129933402 | SPRING |
| 519 | A 1122770853 | SPACER TUBE |
| 521 | A 0009942741 | LOCK |
| 523 | A 1002720862 | GUARD PLATE |
| 526 | A 0009932926 | DISC SPRING |
| 529 | A 1002771338 | PISTON |
| 531 | A 1002770192 | BOOT |
| 533 | N 006799007007 | LOCK PLATE |
| 537 | A 1002701062 | BRAKE BAND |
| Repalced by: A 1002704462 | ||
| 537 | A 1002704462 | BRAKE BAND |
| B 1 | ||
| 540 | A 1002704162 | BRAKE BAND |
| Repalced by: A 1002704262 | ||
| 540 | A 1002704262 | BRAKE BAND |
| B 2 | ||
| 543 | A 1002700762 | BRAKE BAND |
| Repalced by: A 1002704362 | ||
| 543 | A 1002704362 | BRAKE BAND |
| Repalced by: A 1122702662 | ||
| 543 | A 1122702662 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 543 | A 1122702362 | BRAKE BAND |
| REVERSE SPEED | ||
| 546 | A 1122770475 | PIN |
| 35 MM AS REQUIRED | ||
| A 1122770575 | PIN | |
| 36 MM AS REQUIRED | ||
| A 1122770675 | PIN | |
| 37 MM AS REQUIRED | ||
| 549 | A 1152775475 | PIN |
| AS REQUIRED | ||
| 22 MM | ||
| A 1152775575 | PIN | |
| AS REQUIRED | ||
| 23 MM | ||
| A 1152775675 | PIN | |
| 24 MM AS REQUIRED | ||
| A 1152775775 | PIN | |
| 25 MM AS REQUIRED | ||
| A 1152775875 | PIN | |
| 26 MM AS REQUIRED | ||
| 553 | A 1129970130 | SCREW PLUG |
| 556 | N 007603016401 | SEAL RING |
| 559 | A 1009970030 | SCREW PLUG |
| 562 | N 007603010100 | SEAL RING |
| 565 | A 1122770171 | SCREW |
| 568 | A 1152775375 | PIN |
| 571 | A 1002770303 | COVER |
| 573 | A 1122770080 | GASKET |
| Repalced by: A 1122771780 | ||
| 573 | A 1122771780 | GASKET |
| 575 | N 000933007021 | SCREW |
| 577 | N 000137007201 | SPRING WASHER |
| 579 | A 1129970030 | SCREW PLUG |
| 581 | N 007603008100 | SEAL RING |
| 583 | A 1002702532 | PISTON |
| B 1 | ||
| 585 | A 1002770255 | SEAL RING |
| 587 | A 1002702332 | PISTON |
| B 2 | ||
| 589 | A 1122770055 | SEAL RING |
| 591 | A 1002770675 | THRUST FORK |
| 593 | A 1002700514 | BEARING COVER |
| 595 | A 0039970246 | SEAL RING |
| 597 | A 0009976041 | SEAL RING |
| A 0049977245 | SEAL RING | |
| A 1002770292 | BOOT | |
| A 1002770392 | BOOT | |
| 600 | A 1002700071 | HOUSING |
| 603 | A 1122700188 | INSULATING PLATE |
| 605 | A 1122700079 | DIAPHRAGM |
| 607 | A 1002771275 | PIN |
| 89 MM AS REQUIRED | ||
| A 1002771675 | PIN | |
| 90 MM AS REQUIRED | ||
| 610 | A 1122770514 | INTERMEDIATE PLATE |
| 612 | A 0009976845 | SEAL RING |
| 614 | A 1122770753 | SPACER TUBE |
| 616 | A 1122770977 | GUIDE |
| 618 | A 1129932402 | SPRING |
| 620 | N 006799003202 | LOCK PLATE |
| 622 | A 1129934002 | SPRING |
| A 1129935202 | SPRING | |
| 625 | A 1112770003 | COVER |
| 627 | A 1122770271 | SCREW |
| 629 | A 1122771046 | SPRING RETAINER |
| 631 | N 007603006100 | SEAL RING |
| 633 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 633 | N 304032006008 | NUT |
| 635 | N 007603010100 | SEAL RING |
| 637 | N 915013004002 | SCREW FITTING |
| 639 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 639 | N 304017005002 | SCREW |
| 641 | N 000137005203 | SPRING WASHER |
| 643 | N 000933005036 | SCREW |
| 644 | N 000137005203 | SPRING WASHER |
| 645 | A 1129970030 | SCREW PLUG |
| 647 | N 007603008100 | SEAL RING |
| 649 | A 1122771380 | GASKET |
| Repalced by: A 1122771580 | ||
| 649 | A 1122771580 | GASKET |
| Repalced by: A 1102770180 | ||
| 649 | A 1102770180 | GASKET |
| 650 | A 1002700087 | GASKET KIT |
| 651 | A 1009935001 | SPRING |
| 653 | A 1129931401 | SPRING |
| 654 | A 1009935601 | SPRING |
| 655 | A 1002770580 | GASKET |
| Repalced by: A 1002771080 | ||
| 655 | A 1002771080 | GASKET |
| 657 | N 000933007018 | SCREW |
| 658 | N 000933007026 | SCREW |
| 659 | N 000933007019 | SCREW |
| 661 | N 000137007201 | SPRING WASHER |
| 662 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 662 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 662 | N 308675014002 | NUT |
| 663 | A 1129970030 | SCREW PLUG |
| MEASURING CONNECTION | ||
| 664 | N 007603008100 | SEAL RING |
| MEASURING CONNECTION | ||
| 665 | A 1002700896 | LINE |
| 666 | A 1002700696 | LINE |
| 668 | N 915036005100 | HOLLOW SCREW |
| 669 | N 007603008100 | SEAL RING |
| 670 | A 1009900363 | HOLLOW SCREW |
| 671 | N 915036006102 | HOLLOW SCREW |
| 672 | N 007603010100 | SEAL RING |
| 673 | A 1122701116 | CASE COVER |
| N 900421005000 | THREADED INSERT | |
| 674 | A 1122772731 | PISTON |
| 675 | A 1129937601 | SPRING |
| INSIDE | ||
| 677 | A 1129937701 | SPRING |
| OUTSIDE | ||
| A 1129935402 | SPRING | |
| OUTSIDE | ||
| 678 | A 1122770852 | SPACER WASHER |
| MAXIMUM,4 PIECES | ||
| 679 | A 1122775531 | PISTON |
| 680 | A 1129936801 | SPRING |
| 681 | A 1122770752 | SPACER WASHER |
| MAXIMUM,2 PIECES | ||
| 682 | A 1122770180 | GASKET |
| Repalced by: A 1122771680 | ||
| 682 | A 1122771680 | GASKET |
| 683 | A 1122770083 | LOCKING SHEET |
| 684 | N 000084005131 | SCREW |
| 685 | N 000137005203 | SPRING WASHER |
| 686 | A 1092700193 | DRIVE SHAFT |
| 687 | A 1862770055 | SEAL RING |
| 688 | A 1129910201 | PIN |
| REPAIR SIZE 5,4 MM | ||
| A 1129910301 | PIN | |
| REPAIR SIZE 5,5 MM | ||
| 689 | A 1122700950 | BUSHING |
| 691 | A 1129930102 | SPRING |
| 693 | A 1122700097 | OIL PUMP |
| 694 | A 1122700187 | GASKET KIT |
| 695 | A 1122770453 | SPACER TUBE |
| FOLLOWER TO DRIVE SHAFT | ||
| 696 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 696 | N 304017006027 | SCREW |
| 697 | N 000137006204 | SPRING WASHER |
| 698 | A 1122770980 | GASKET |
| Repalced by: A 1122771880 | ||
| 698 | A 1122771880 | GASKET |
| 699 | A 1002700069 | SENDER UNIT |
| 700 | A 0009977845 | SEAL RING |
| 702 | N 000084005117 | SCREW |
| 703 | N 000137005203 | SPRING WASHER |
| 704 | A 1122770480 | GASKET |
| Repalced by: A 1122771480 | ||
| 704 | A 1122771480 | GASKET |
| 705 | N 000933006123 | SCREW |
| 706 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 706 | N 304014006004 | SCREW |
| 707 | N 000137006201 | SPRING WASHER |
| 708 | A 1122701211 | TRANSMISSION CASE |
| 709 | A 1129970030 | SCREW PLUG |
| 709 | A 1129970030 | SCREW PLUG |
| 710 | N 007603008100 | SEAL RING |
| 710 | N 007603008100 | SEAL RING |
| 711 | A 1002780121 | PAWL |
| Repalced by: A 1002780321 | ||
| 711 | A 1002780321 | PAWL |
| 712 | A 1129939001 | SPRING |
| 713 | A 1122780069 | SCREW |
| 714 | N 007603016401 | SEAL RING |
| 715 | A 1129939901 | SPRING |
| 716 | A 1002780074 | PIN |
| 717 | N 000625900201 | GROOVED BALL BEARING |
| 718 | A 0039974746 | SEAL RING |
| 719 | A 1002780032 | GUIDE |
| 720 | A 1002720617 | GEAR |
| Repalced by: A 1002720917 | ||
| 720 | A 1002720917 | GEAR |
| 721 | A 1002722362 | GUARD PLATE |
| 722 | A 1002720074 | PIN |
| 723 | A 1122710680 | GASKET |
| Repalced by: A 1122711480 | ||
| 723 | A 1122711480 | GASKET |
| 724 | N 000933007022 | SCREW |
| 725 | N 000933007021 | SCREW |
| 726 | N 000137007201 | SPRING WASHER |
| 727 | A 1002720645 | FLANGE |
| 728 | A 1862620226 | GROOVED NUT |
| 729 | A 1862620173 | LOCK |
| 730 | A 1122700527 | SPEEDOMETER DRIVE |
| 731 | A 1122740032 | DRIVE SHAFT |
| 732 | A 1122700627 | SPEEDOMETER DRIVE |
| 733 | A 1122700113 | BEARING BODY |
| 734 | A 0009976845 | SEAL RING |
| 735 | A 1122700008 | COVER |
| 736 | A 1122740180 | GASKET |
| 737 | N 000933006102 | SCREW |
| 738 | N 000137006204 | SPRING WASHER |

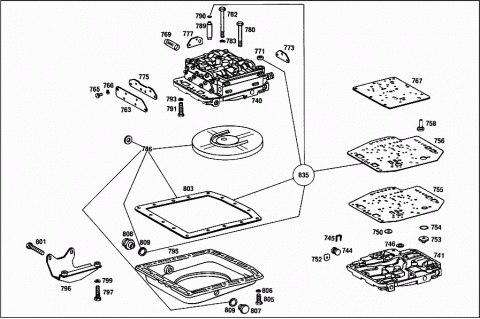

| 740 | A 1002701307 | VALVE BODY ASSEMBLY |
| Repalced by: A 1002701507 | ||
| 740 | A 1002701507 | VALVE BODY ASSEMBLY |
| 741 | A 1002700507 | VALVE BODY ASSEMBLY |
| A 1122775329 | SHIFT VALVE | |
| REVERSE SPEED | ||
| A 1129932701 | SPRING | |
| REVERSE SPEED | ||
| 744 | A 1122771174 | PIN |
| 745 | A 1122770073 | LOCK |
| 746 | A 1122773750 | BUSHING |
| A 1009937701 | SPRING | |
| A 1122774731 | PISTON | |
| A 1129933902 | SPRING | |
| 750 | A 1152772936 | VALVE PART |
| A 1129934802 | SPRING | |
| 752 | A 1122770583 | LOCKING SHEET |
| 753 | A 1122701489 | VALVE |
| 754 | A 0059974145 | SEAL RING |
| 755 | A 1002770114 | INTERMEDIATE PLATE |
| 756 | A 1002770480 | GASKET |
| Repalced by: A 1002770980 | ||
| 756 | A 1002770980 | GASKET |
| A 1002700707 | VALVE BODY ASSEMBLY | |
| 758 | A 1122770436 | VALVE PART |
| A 1129930301 | SPRING | |
| A 1009939601 | SPRING | |
| A 1009939701 | SPRING | |
| A 1002700470 | REGULATOR VALVE | |
| A 1122774031 | PISTON | |
| A 1122700177 | THRUST PIN | |
| A 1129938501 | SPRING | |
| A 1122775429 | SHIFT VALVE | |
| A 1129931901 | SPRING | |
| A 1009935901 | SPRING | |
| 763 | A 1122771783 | LOCKING SHEET |
| 765 | N 000084005131 | SCREW |
| 766 | N 000137005203 | SPRING WASHER |
| 767 | A 1002770014 | INTERMEDIATE PLATE |
| N 000463006400 | LOCK PLATE | |
| A 1002701107 | VALVE BODY ASSEMBLY | |
| A 1129931502 | SPRING | |
| A 1129934302 | SPRING | |
| A 1122775529 | SHIFT VALVE | |
| 769 | A 1122773650 | BUSHING |
| 771 | A 1122770392 | BOOT |
| A 1129933602 | SPRING | |
| 773 | A 1122770883 | LOCKING SHEET |
| 773 | A 1122770883 | LOCKING SHEET |
| A 1122770983 | LOCKING SHEET | |
| 775 | A 1002770183 | LOCKING SHEET |
| 777 | A 1122770483 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| COVER PLATE TO VALVE BLOCK ASSEMBLY | ||
| N 000137005203 | SPRING WASHER | |
| COVER PLATE TO VALVE BLOCK ASSEMBLY | ||
| N 900421005000 | THREADED INSERT | |
| REPAIR SIZE | ||
| 780 | N 000931006055 | SCREW |
| 782 | N 000931006138 | SCREW |
| 783 | N 000137006204 | SPRING WASHER |
| 786 | A 1132700098 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012113 OIL DRAN HYDRAULIC CLUTCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| N 000933006102 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 789 | A 1122770647 | TUBE |
| 790 | A 0009976345 | SEAL RING |
| 791 | N 000933007013 | SCREW |
| 793 | N 000137007201 | SPRING WASHER |
| 795 | A 1122700412 | OIL PAN |
| 796 | A 1002700086 | COVER PLATE |
| 797 | N 000933007019 | SCREW |
| 799 | N 000137007201 | SPRING WASHER |
| 801 | N 000933007018 | SCREW |
| N 000137007201 | SPRING WASHER | |
| 803 | A 1122710980 | GASKET |
| 805 | N 000933007023 | SCREW |
| 806 | N 000137007201 | SPRING WASHER |
| 807 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 807 | N 007604014110 | SCREW PLUG |
| 808 | A 1129970372 | FITTING |
| 809 | N 007603014100 | SEAL RING |

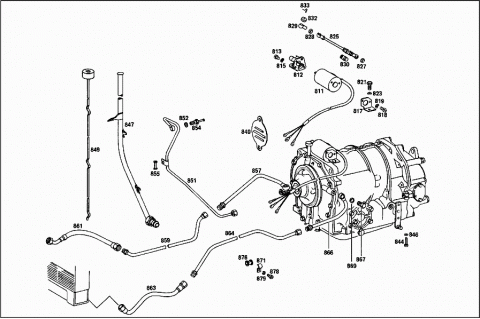

| 811 | A 0003040290 | SOLENOID |
| 812 | A 1123000636 | BEARING BRACKET |
| 813 | N 000084005131 | SCREW |
| 815 | N 000137005203 | SPRING WASHER |
| 817 | A 1123040040 | BRACKET |
| 818 | N 000084005402 | SCREW |
| 819 | N 000137005203 | SPRING WASHER |
| 821 | N 000933007025 | SCREW |
| 823 | N 000137007201 | SPRING WASHER |
| 825 | A 1123001015 | ROD |
| 827 | N 000934005008 | NUT |
| 828 | N 000934005010 | NUT |
| L.H. THREAD | ||
| 829 | N 071805008204 | BALL SOCKET |
| 830 | N 900333005001 | TURNBUCKLE |
| 832 | A 0009976041 | SEAL RING |
| 833 | N 071805008400 | SECURING CLIP |
| 835 | A 1005860327 | REPAIR KIT |
| Repalced by: A 1002702400 | ||
| 835 | A 1002702400 | GASKET KIT |
| N 000931012133 | SCREW | |
| BELL HOUSING AND INTERMEDIATE FLANGE TO CYLINDER CRANKCASE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING AND INTERMEDIATE FLANGE TO CYLINDER CRANKCASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING AND INTERMEDIATE FLANGE TO CYLINDER CRANKCASE | ||
| N 000931012149 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 840 | A 1000110133 | COVER |
| N 000931012150 | SCREW | |
| COVER TO BELL HOUSING AND TO INTERMEDIATE FLANGE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| COVER TO BELL HOUSING AND TO INTERMEDIATE FLANGE | ||
| N 000934012021 | NUT | |
| COVER TO BELL HOUSING AND TO INTERMEDIATE FLANGE | ||
| 844 | N 000912006025 | SCREW |
| Repalced by: N 000912006175 | ||
| 844 | N 000912006175 | SCREW |
| Repalced by: A 0019907212 | ||
| 844 | A 0019907212 | SCREW |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 846 | N 000137006204 | SPRING WASHER |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 847 | A 1002700084 | OIL FILLER PIPE |
| A 1002700184 | OIL FILLER PIPE | |
| 849 | A 1002700083 | OIL DIPSTICK |
| 851 | A 1002700147 | LINE |
| 852 | N 007603010100 | SEAL RING |
| LINE TO INTAKE MANIFOLD | ||
| 854 | A 1009900663 | HOLLOW SCREW |
| LINE TO INTAKE MANIFOLD | ||
| 855 | A 1129970381 | GROMMET |
| LINE TO INTAKE MANIFOLD | ||
| 857 | A 1002700196 | LINE |
| A 1002700396 | LINE | |
| 859 | A 1002700996 | LINE |
| 861 | A 0019971952 | HOSE |
| 863 | A 0159977082 | HOSE |
| Repalced by: A 0199978082 | ||
| 863 | A 0199978082 | HOSE |
| 864 | A 1002700296 | LINE |
| 866 | A 1002700096 | LINE |
| 867 | N 915036008104 | HOLLOW SCREW |
| 869 | N 007603012104 | SEAL RING |
| 871 | A 1009950420 | CLAMP |
| LINES TO ENGINE | ||
| 876 | A 1129970281 | GROMMET |
| LINES TO ENGINE | ||
| 878 | N 000912006066 | SCREW |
| LINES TO ENGINE | ||
| 879 | N 912004006102 | LOCK WASHER |
| LINES TO ENGINE | ||
| 882 | A 1005860427 | REPAIR KIT |
| Repalced by: A 1002702301 | ||
| 882 | A 1002702301 | GASKET KIT |
| A 1005860027 | REPAIR KIT | |
| Repalced by: A 1002702001 | ||
| A 1002702001 | GASKET KIT | |
| A 1005860127 | REPAIR KIT | |
| Repalced by: A 1002702101 | ||
| A 1002702101 | GASKET KIT | |
| 885 | A 1005860227 | REPAIR KIT |
| Repalced by: A 1002702201 | ||
| 885 | A 1002702201 | GASKET KIT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
