Transporto priemonė: 600; VIN numerio dalis: 100012

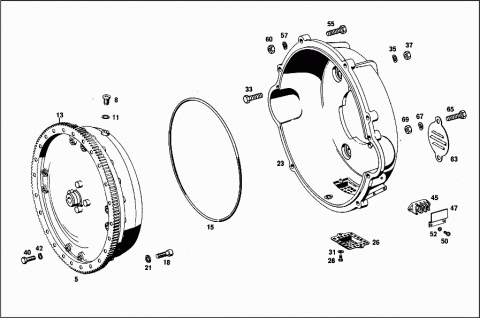

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1002501202 | HYDRAULIC CLUTCH |
| 008 | A 1809970530 | SCREW PLUG |
| 011 | N 007603012110 | SEAL RING |
| 013 | A 1000320705 | RING GEAR |
| 015 | A 0089970245 | SEAL RING |
| 018 | N 000912008023 | SCREW |
| Repalced by: N 000912008204 | ||
| 018 | N 000912008204 | SCREW |
| 021 | N 000433008400 | WASHER |
| 023 | A 1002500105 | HOUSING |
| 026 | A 1802571290 | COVER PLATE |
| 028 | N 000933005058 | SCREW |
| 031 | N 000137005203 | SPRING WASHER |
| 033 | N 000933012051 | SCREW |
| 035 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 035 | N 000137012206 | SPRING WASHER |
| 037 | N 000934012021 | NUT |
| 040 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 040 | N 304017008016 | SCREW |
| 042 | N 000137008200 | SPRING WASHER |
| 045 | A 0005466541 | CABLE CONNECTOR |
| 047 | A 1122570490 | COVER PLATE |
| 050 | N 000084004151 | SCREW |
| 052 | N 000137004100 | SPRING WASHER |
| 055 | N 000931012133 | SCREW |
| 057 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 057 | N 000137012206 | SPRING WASHER |
| 060 | N 000934012021 | NUT |
| N 000931012149 | SCREW | |
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| N 000934012021 | NUT | |
| 063 | A 1000110133 | COVER |
| 065 | N 000931012150 | SCREW |
| 067 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 067 | N 000137012206 | SPRING WASHER |
| 069 | N 000934012021 | NUT |
