Transporto priemonė: 600; VIN numerio dalis: 100012

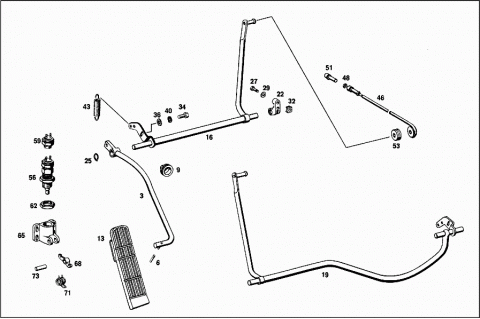

Grupė: 30 CONTROL

#	Kodas	Pavadinimas
003	A 1003000104	ACCELERATOR PEDAL
006	A 1109970010	PIN
009	A 1839970081	GROMMET
013	A 1003000304	ACCELERATOR PEDAL
	Repalced by: A 1103000002
013	A 1103000002	PLATE
016	A 1003000720	SHAFT
019	A 1003000320	SHAFT
022	A 1103010018	BEARING
025	N 900055012402	LOCK RING
027	N 000931006187	SCREW
	Repalced by: N 304014006005
027	N 304014006005	SCREW
029	N 000137006204	SPRING WASHER
032	A 0009902291	NUT RETAINER
	Repalced by: A 0019906791
032	A 0019906791	NUT RETAINER
034	N 000933008131	SCREW
	Repalced by: N 304017008016
034	N 304017008016	SCREW
036	N 000125008418	WASHER
	Repalced by: N 000125008443
036	N 000125008443	WASHER
040	N 000137008204	SPRING WASHER
	Repalced by: N 000137008212
040	N 000137008212	SPRING WASHER
043	A 1869931810	SPRING
046	A 1003000115	ROD
048	N 000934005008	NUT
051	A 0009911622	BALL SOCKET
	Repalced by: A 0009918922
051	A 0009918922	BALL SOCKET
053	A 1803010097	BOOT
056	A 1123000241	STOP
	A 1123000341	STOP
059	A 0005451706	SWITCH
062	A 1129900151	NUT
065	A 1133040027	HOUSING
068	A 1123040120	LEVER
071	A 1129930020	SPRING
073	A 1129970010	PIN
	N 007985006193	SCREW
	Repalced by: N 000000001146
	N 000000001146	SCREW
		SPRING-LOADED STOP TO TOEBOARD
		M 6X16
	N 912004006102	LOCK WASHER
		SPRING-LOADED STOP TO TOEBOARD
