Transporto priemonė: 600; VIN numerio dalis: 100012

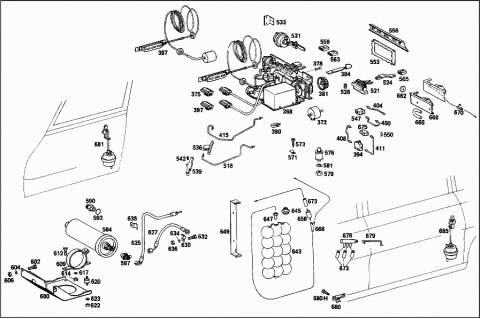

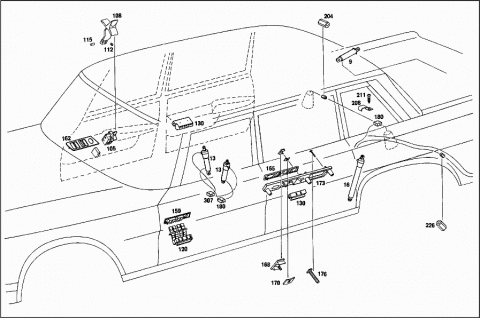

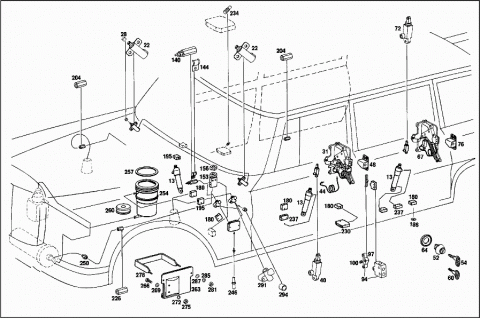

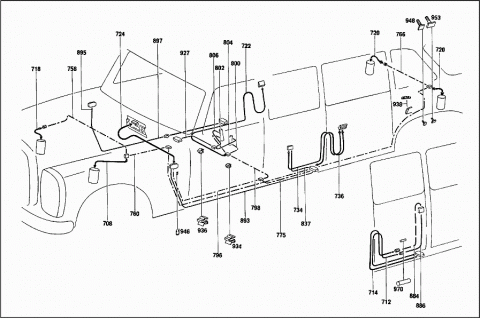

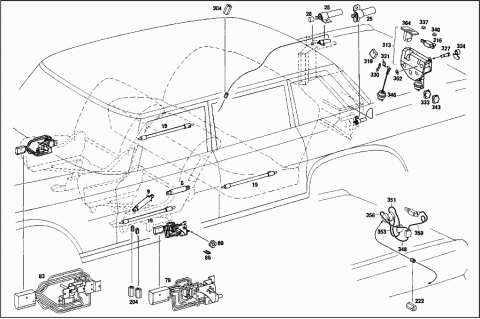

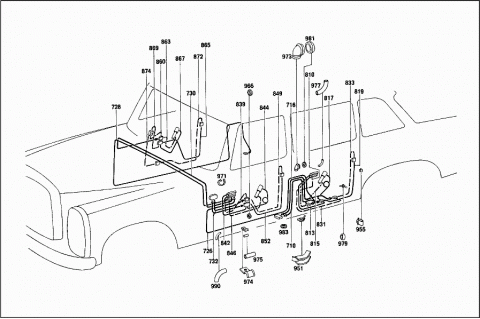

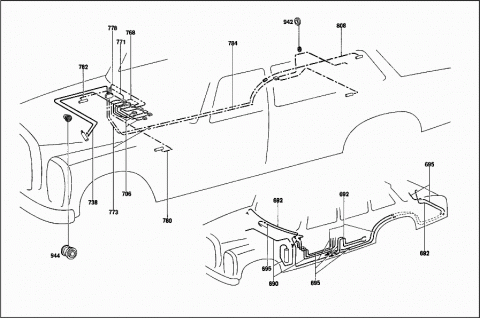

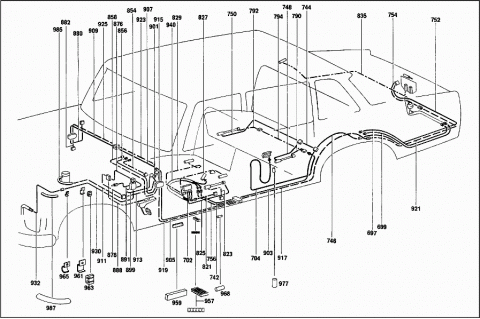

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1008001275 | ELEMENT |
| FRONT SEAT BACKREST | ||
| 009 | A 1008001575 | ELEMENT |
| REAR LID | ||
| 009 | A 1008001575 | ELEMENT |
| DRIVER'S SEAT | ||
| 009 | A 1008001575 | ELEMENT |
| SUMMER VENTILATION OPERATING MECHANISM | ||
| 013 | A 1008001875 | ELEMENT |
| FRONT DOOR | ||
| 013 | A 1008001875 | ELEMENT |
| REAR DOOR | ||
| 013 | A 1008001875 | ELEMENT |
| PARTITION PANEL | ||
| 013 | A 1008001875 | ELEMENT |
| SUMMER VENTILATION OPERATING MECHANISM | ||
| 013 | A 1008001875 | ELEMENT |
| CENTRAL SIDE WINDOW | ||
| 016 | A 1008003675 | ELEMENT |
| FOLDING TOP OPERATION | ||
| 019 | A 1008001075 | ELEMENT |
| REAR SEAT BENCH | ||
| 019 | A 1008001075 | ELEMENT |
| DRIVER'S SEAT | ||
| 022 | A 1008002275 | ELEMENT |
| FRESH-AIR FLAP | ||
| 022 | A 1008002275 | ELEMENT |
| REAR MOUNTED BLOWER CASE FLAP | ||
| A 1008003475 | ELEMENT | |
| Repalced by: A 1008002275 | ||
| 025 | A 1008002275 | ELEMENT |
| HEATER CASE FLAP | ||
| 028 | A 1008050090 | CAP |
| FRESH-AIR FLAP | ||
| 028 | A 1008050090 | CAP |
| HEATER CASE FLAP | ||
| 028 | A 1008050090 | CAP |
| REAR MOUNTED BLOWER CASE FLAP | ||
| A 1008001974 | LOCK | |
| Repalced by: A 1008003774 | ||
| 031 | A 1008003774 | LOCK |
| LEFT FRONT DOOR | ||
| A 1007200135 | LOCK | |
| LEFT FRONT DOOR | ||
| A 1008002174 | LOCK | |
| Repalced by: A 1008003974 | ||
| A 1008003974 | LOCK | |
| LEFT FRONT DOOR | ||
| A 1007200335 | LOCK | |
| LEFT FRONT DOOR | ||
| A 1008002274 | LOCK | |
| Repalced by: A 1008004074 | ||
| A 1008004074 | LOCK | |
| RIGHT FRONT DOOR | ||
| A 1007200435 | LOCK | |
| RIGHT FRONT DOOR | ||
| A 1008002074 | LOCK | |
| Repalced by: A 1008003874 | ||
| A 1008003874 | LOCK | |
| RIGHT FRONT DOOR | ||
| A 1007200235 | LOCK | |
| RIGHT FRONT DOOR | ||
| 040 | A 1008001675 | ELEMENT |
| A 1008009781 | LINE | |
| Repalced by: A 1008068350 | ||
| A 1008069751 | LINE | |
| Repalced by: A 1008068350 | ||
| 044 | A 1008068350 | LINE |
| Repalced by: A 1008063149 | ||
| 044 | A 1008063149 | CONTROL LINE |
| LEFT | ||
| A 1008009881 | LINE | |
| Repalced by: A 1008068450 | ||
| A 1008069851 | LINE | |
| Repalced by: A 1008068450 | ||
| A 1008068450 | LINE | |
| Repalced by: A 1008063149 | ||
| A 1008063149 | CONTROL LINE | |
| RIGHT | ||
| A 1008000159 | EYE | |
| Repalced by: A 1008000559 | ||
| 048 | A 1008000559 | EYE |
| LEFT | ||
| A 1008000259 | EYE | |
| Repalced by: A 1008000659 | ||
| A 1008000659 | EYE | |
| RIGHT | ||
| A 1008000359 | EYE | |
| LEFT | ||
| A 1008000459 | EYE | |
| RIGHT | ||
| A 1007200304 | LOCKING EYE | |
| LEFT | ||
| A 1007200404 | LOCKING EYE | |
| RIGHT | ||
| 052 | A 1008002774 | LOCK |
| LEFT FRONT DOOR | ||
| A 1008002874 | LOCK | |
| RIGHT FRONT DOOR | ||
| A 1008003174 | LOCK | |
| LEFT FRONT DOOR | ||
| A 1008003274 | LOCK | |
| RIGHT FRONT DOOR | ||
| A 1007200935 | LOCK | |
| LEFT | ||
| A 1007201035 | LOCK | |
| RIGHT | ||
| 054 | A 0007661206 | KEY |
| MASTER KEY | ||
| 060 | A 0007661306 | KEY |
| SECONDARY KEY | ||
| A 0007661606 | KEY | |
| Repalced by: A 1007600206 | ||
| A 0007661706 | KEY | |
| Repalced by: A 1007600206 | ||
| A 1007600206 | KEY | |
| 064 | A 1008050313 | WASHER |
| A 1008050513 | WASHER | |
| A 1008002374 | LOCK | |
| Repalced by: A 1008004174 | ||
| 067 | A 1008004174 | LOCK |
| LEFT | ||
| A 1157301735 | DOOR LOCK | |
| LEFT | ||
| A 1008002474 | LOCK | |
| Repalced by: A 1008004274 | ||
| A 1008004274 | LOCK | |
| RIGHT | ||
| A 1157301835 | DOOR LOCK | |
| RIGHT | ||
| 072 | A 1008001675 | ELEMENT |
| A 1008009781 | LINE | |
| Repalced by: A 1008068350 | ||
| A 1008069751 | LINE | |
| Repalced by: A 1008068350 | ||
| A 1008068350 | LINE | |
| Repalced by: A 1008063149 | ||
| A 1008063149 | CONTROL LINE | |
| LEFT | ||
| A 1008009881 | LINE | |
| Repalced by: A 1008068450 | ||
| A 1008009851 | CENTRAL LOCKING MECHANISM | |
| Repalced by: A 1008068450 | ||
| A 1008068450 | LINE | |
| Repalced by: A 1008063149 | ||
| A 1008063149 | CONTROL LINE | |
| RIGHT | ||
| A 1008000159 | EYE | |
| Repalced by: A 1008000559 | ||
| 076 | A 1008000559 | EYE |
| LEFT | ||
| A 1008000359 | EYE | |
| LEFT | ||
| A 1007200304 | LOCKING EYE | |
| LEFT | ||
| A 1008000259 | EYE | |
| Repalced by: A 1008000659 | ||
| A 1008000659 | EYE | |
| RIGHT | ||
| A 1008000459 | EYE | |
| RIGHT | ||
| A 1007200404 | LOCKING EYE | |
| RIGHT | ||
| A 1008000273 | SWITCH | |
| Repalced by: A 1008002973 | ||
| A 1008000073 | SWITCH | |
| Repalced by: A 1008003073 | ||
| 079 | A 1008002973 | SWITCH |
| LEFT | ||
| 083 | A 1008003073 | SWITCH |
| RIGHT | ||
| 086 | A 1008050025 | CLIP |
| 089 | A 1008050258 | BUTTON |
| N 000553004010 | HEADLESS SETSCREW | |
| A 1008000373 | SWITCH | |
| Repalced by: A 1008005273 | ||
| A 1008050061 | LEVER | |
| Repalced by: A 1008005273 | ||
| 094 | A 1008005273 | SWITCH |
| 097 | A 1008050761 | LEVER |
| 100 | A 1008050375 | THREADED PIN |
| A 0009910180 | CLINCH-PIN | |
| A 1008002273 | SWITCH | |
| Repalced by: A 1008007873 | ||
| A 1008006473 | SWITCH | |
| Repalced by: A 1008007873 | ||
| 105 | A 1008007873 | SWITCH |
| WINDOW OPERATING MECHANISM,LEFT | ||
| 108 | A 1008001061 | CONTROL LEVER |
| A 1008000427 | RAIL | |
| A 1008000327 | RAIL | |
| 112 | A 1008050375 | THREADED PIN |
| 115 | N 000007002221 | CYLINDRICAL PIN |
| A 1008001973 | SWITCH | |
| Repalced by: A 1008007973 | ||
| A 1008006373 | SWITCH | |
| Repalced by: A 1008007973 | ||
| 120 | A 1008007973 | SWITCH |
| A 1008001061 | CONTROL LEVER | |
| A 1008050327 | RAIL | |
| A 1008050375 | THREADED PIN | |
| N 000007002216 | CYLINDRICAL PIN | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| MOUNTING RAIL TO SWITCH | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| MOUNTING RAIL TO SWITCH | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004311 | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| MOUNTING RAIL TO SWITCH | ||
| N 000137004202 | SPRING WASHER | |
| MOUNTING RAIL TO SWITCH | ||
| A 1008003673 | SWITCH | |
| Repalced by: A 1008008073 | ||
| A 1008006773 | SWITCH | |
| Repalced by: A 1008008073 | ||
| 130 | A 1008008073 | SWITCH |
| A 1008001061 | CONTROL LEVER | |
| A 1008050375 | THREADED PIN | |
| N 000007002216 | CYLINDRICAL PIN | |
| A 1008006573 | SWITCH | |
| Repalced by: A 1008008173 | ||
| A 1008008173 | SWITCH | |
| LEFT REAR DOOR | ||
| A 1008006673 | SWITCH | |
| Repalced by: A 1008008273 | ||
| A 1008008273 | SWITCH | |
| RIGHT REAR DOOR | ||
| A 1008001061 | CONTROL LEVER | |
| A 1008050375 | THREADED PIN | |
| N 000007002216 | CYLINDRICAL PIN | |
| A 1008002173 | SWITCH | |
| Repalced by: A 1008005573 | ||
| 140 | A 1008005573 | SWITCH |
| A 1008050025 | CLIP | |
| 144 | A 3129952001 | CLAMP |
| N 007985006128 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 153 | A 1008000178 | VALVE |
| 156 | A 1008050258 | BUTTON |
| N 000553004010 | HEADLESS SETSCREW | |
| N 007981004337 | SHEET METAL SCREW | |
| 159 | A 1008000188 | ORNAMENTAL COVER |
| LEFT FRONT DOOR | ||
| A 1008000688 | ORNAMENTAL COVER | |
| LEFT FRONT DOOR | ||
| 162 | A 1008000588 | ORNAMENTAL COVER |
| RIGHT FRONT DOOR | ||
| A 1008000288 | ORNAMENTAL COVER | |
| RIGHT FRONT DOOR | ||
| 165 | A 1008000988 | ORNAMENTAL COVER |
| LEFT REAR DOOR | ||
| A 1008001088 | ORNAMENTAL COVER | |
| RIGHT REAR DOOR | ||
| 168 | A 1008051211 | PLATE |
| A 1008000135 | CAP | |
| 170 | A 1009940045 | LOCK |
| 173 | A 1008050988 | ORNAMENTAL COVER |
| LEFT | ||
| A 1008051088 | ORNAMENTAL COVER | |
| RIGHT | ||
| N 000934004006 | NUT | |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| 176 | A 0009900133 | SCREW |
| N 009021003107 | WASHER | |
| N 000934003002 | NUT | |
| 180 | A 1008000077 | CONNECTOR |
| REAR FLOOR | ||
| 180 | A 1008000077 | CONNECTOR |
| FRONT PANEL PILLAR,LEFT | ||
| 180 | A 1008000077 | CONNECTOR |
| FRONT PANEL PILLAR,RIGHT | ||
| 180 | A 1008000077 | CONNECTOR |
| LEFT FRONT DOOR | ||
| 180 | A 1008000077 | CONNECTOR |
| RIGHT FRONT DOOR | ||
| 180 | A 1008000077 | CONNECTOR |
| LEFT FRONT DOOR | ||
| 180 | A 1008000077 | CONNECTOR |
| RIGHT FRONT DOOR | ||
| 180 | A 1008000077 | CONNECTOR |
| REAR DOORS | ||
| 180 | A 1008000077 | CONNECTOR |
| FLOOR ABOVE REAR AXLE | ||
| 180 | A 1008000077 | CONNECTOR |
| INSTRUMENT PANEL | ||
| 180 | A 1008000077 | CONNECTOR |
| WHEELHOUSE, FRONT LEFT | ||
| 180 | A 1008000077 | CONNECTOR |
| WHEELHOUSE,REAR LEFT | ||
| 180 | A 1008000077 | CONNECTOR |
| LEFT SIDE MEMBER | ||
| N 007985004129 | SCREW | |
| CONNECTOR TO REAR DOOR | ||
| N 006797004232 | TOOTHED WASHER | |
| CONNECTOR TO REAR DOOR | ||
| N 000934004006 | NUT | |
| CONNECTOR TO REAR DOOR | ||
| 186 | A 0009871341 | RUBBER RING |
| CONNECTOR TO REAR DOOR | ||
| N 007985004129 | SCREW | |
| CONNECTOR TO FRONT DOOR | ||
| N 000137004202 | SPRING WASHER | |
| CONNECTOR TO FRONT DOOR | ||
| N 000137004202 | SPRING WASHER | |
| CONNECTOR TO FRONT DOOR | ||
| N 007981004252 | SHEET METAL SCREW | |
| N 007985005151 | SCREW | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 007985005146 | SCREW | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 000934005008 | NUT | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 000127005203 | LOCK WASHER | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| 195 | A 1008000177 | CONNECTOR |
| INSTRUMENT PANEL | ||
| 195 | A 1008000177 | CONNECTOR |
| WHEELHOUSE, FRONT LEFT | ||
| N 007981004257 | SHEET METAL SCREW | |
| Repalced by: N 000000000463 | ||
| N 000000000463 | SCREW | |
| N 007985005134 | SCREW | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 912004005100 | LOCK WASHER | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 000934005008 | NUT | |
| CONNECTOR TO INSTRUMENT PANEL REINFORCEMENT | ||
| 204 | A 1008000277 | CONNECTOR |
| DRIVER'S SEAT | ||
| 204 | A 1008000277 | CONNECTOR |
| FLOOR ABOVE REAR AXLE, RIGHT | ||
| 204 | A 1008000277 | CONNECTOR |
| WHEELHOUSE, FRONT RIGHT | ||
| 204 | A 1008000277 | CONNECTOR |
| WHEELHOUSE,REAR LEFT | ||
| 204 | A 1008000277 | CONNECTOR |
| CENTRAL SIDE DOOR | ||
| 204 | A 1008000277 | CONNECTOR |
| REAR SEAT BENCH | ||
| 208 | A 0009950122 | CLAMP |
| 211 | N 007981005203 | SHEET METAL SCREW |
| A 1879950037 | CLAMP | |
| CONNECTOR TO FRONT WHEELHOUSE & TO FLOOR ABOVE REAR AXLE,RIGHT | ||
| N 007981004322 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| CONNECTOR TO FRONT WHEELHOUSE & TO FLOOR ABOVE REAR AXLE,RIGHT | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| CONNECTOR TO BOTTOM MOUNTING ANGLE AND TO CENTRAL SIDE DOOR | ||
| N 007981004318 | SHEET METAL SCREW | |
| CONNECTOR TO BOTTOM MOUNTING ANGLE AND TO CENTRAL SIDE DOOR | ||
| 222 | A 1008000877 | CONNECTOR |
| REAR BODY PANEL,BOTTOM | ||
| 222 | A 1008000877 | CONNECTOR |
| REAR FLOOR | ||
| 226 | A 1214290134 | ADAPTER FITTING |
| A 1879950037 | CLAMP | |
| N 007981005213 | SHEET METAL SCREW | |
| 230 | A 1008000977 | CONNECTOR |
| N 007981004257 | SHEET METAL SCREW | |
| Repalced by: N 000000000463 | ||
| N 000000000463 | SCREW | |
| A 0009871033 | RUBBER SECTION | |
| Repalced by: A 4047520198 | ||
| A 4047520198 | SEAL | |
| 70 MM | ||
| A 0004280132 | SCREW PLUG | |
| Repalced by: N 900190010001 | ||
| 234 | N 900190010001 | THREADED PIN |
| A 0004280130 | CONNECTOR | |
| 237 | A 1008001077 | CONNECTOR |
| N 007985004129 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 006797004232 | TOOTHED WASHER | |
| N 000934004006 | NUT | |
| A 0009871341 | RUBBER RING | |
| 246 | A 1008050183 | PLUG |
| 246 | A 1008050183 | PLUG |
| A 1008001577 | CONNECTOR | |
| A 1008050797 | PAD | |
| N 007985004136 | SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| 250 | A 1008051703 | CONNECTOR |
| A 1008050069 | OIL TANK | |
| A 1008050069 | OIL TANK | |
| Repalced by: A 1008000919 | ||
| 254 | A 1008000919 | TANK |
| 257 | A 1008050498 | SEAL |
| 260 | A 1008050169 | FILTER |
| N 900288104100 | CLAMP | |
| N 900288104100 | CLAMP | |
| 263 | A 1008000031 | CONSOLE |
| 266 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 266 | N 304017008016 | SCREW |
| 269 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 269 | N 000125008443 | WASHER |
| 272 | N 000127008203 | LOCK WASHER |
| 275 | N 000934008013 | NUT |
| 278 | A 1008000232 | CLAMP |
| 281 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 281 | N 304032006008 | NUT |
| 285 | N 912004006102 | LOCK WASHER |
| 287 | N 000125006421 | WASHER |
| 291 | A 0004290537 | DISTRIBUTOR |
| FRONT PANEL PILLAR,LEFT | ||
| 291 | A 0004290537 | DISTRIBUTOR |
| RIGHT SIDE MEMBER BELOW FRONT DOOR | ||
| 294 | A 1369913740 | SPACER TUBE |
| N 000933006124 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 007981006207 | SHEET METAL SCREW | |
| Repalced by: N 000000000471 | ||
| N 000000000471 | SCREW | |
| A 1008051803 | CONNECTOR | |
| FRONT LEFT, AT WHEELHOUSE | ||
| 307 | A 1008000377 | CONNECTOR |
| AT TUNNEL,RIGHT,FOR PARTITION PANEL | ||
| 307 | A 1008000377 | CONNECTOR |
| AT REAR FLOOR | ||
| N 007985004129 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| N 007981004257 | SHEET METAL SCREW | |
| Repalced by: N 000000000463 | ||
| N 000000000463 | SCREW | |
| 313 | A 1008001774 | LOCK |
| A 1008003074 | LOCK | |
| Repalced by: A 1008004374 | ||
| A 1008004374 | LOCK | |
| 316 | A 1008001675 | ELEMENT |
| 319 | A 1008000077 | CONNECTOR |
| 321 | A 1008053836 | SPRING |
| 324 | A 1008050029 | HANDLE |
| A 1008050129 | HANDLE | |
| N 000553003006 | HEADLESS SETSCREW | |
| 327 | A 1008001674 | LOCK |
| A 1008002974 | LOCK | |
| 330 | A 1139940060 | LOCK |
| A 1008050061 | LEVER | |
| Repalced by: A 1008004973 | ||
| A 1008000273 | SWITCH | |
| Repalced by: A 1008004973 | ||
| 333 | A 1008004973 | SWITCH |
| 337 | A 1008050490 | CAP |
| 340 | A 1008050590 | CAP |
| A 1008050061 | LEVER | |
| Repalced by: A 1008003273 | ||
| A 1008003173 | SWITCH | |
| Repalced by: A 1008003273 | ||
| 343 | A 1008003273 | SWITCH |
| Repalced by: A 1008004973 | ||
| 343 | A 1008004973 | SWITCH |
| A 1008002575 | ELEMENT | |
| Repalced by: A 1008004175 | ||
| 346 | A 1008004175 | ELEMENT |
| N 007982004227 | SHEET METAL SCREW | |
| Repalced by: N 007982004203 | ||
| N 007982004203 | SHEET METAL SCREW | |
| A 1008007581 | LINE | |
| Repalced by: A 1008067551 | ||
| 348 | A 1008067551 | LINE |
| Repalced by: A 1008062149 | ||
| 348 | A 1008062149 | CONTROL LINE |
| BLUE | ||
| A 1008007681 | LINE | |
| Repalced by: A 1008067651 | ||
| 351 | A 1008067651 | LINE |
| Repalced by: A 1008062149 | ||
| 351 | A 1008062149 | CONTROL LINE |
| BLUE | ||
| A 1008007781 | LINE | |
| Repalced by: A 1008067751 | ||
| 353 | A 1008067751 | LINE |
| Repalced by: A 1008062049 | ||
| 353 | A 1008062049 | CONTROL LINE |
| RED | ||
| A 1008007881 | LINE | |
| Repalced by: A 1008067851 | ||
| 356 | A 1008067851 | LINE |
| Repalced by: A 1008062149 | ||
| 356 | A 1008062149 | CONTROL LINE |
| RED | ||
| A 1008007981 | LINE | |
| Repalced by: A 1008067951 | ||
| 359 | A 1008067951 | LINE |
| Repalced by: A 1008062549 | ||
| 359 | A 1008062549 | CONTROL LINE |
| GREEN | ||
| 362 | A 0009840955 | WASHER |
| 364 | A 1008050133 | EYE |
| A 1008000750 | CONTROL UNIT | |
| Repalced by: A 1008000150 | ||
| A 1008000150 | CONTROL UNIT | |
| Repalced by: A 1008000550 | ||
| A 1008000550 | CONTROL UNIT | |
| A 1008001150 | CONTROL UNIT | |
| Repalced by: A 1008000850 | ||
| 368 | A 1008000850 | CONTROL UNIT |
| A 1008001250 | CONTROL UNIT | |
| Repalced by: A 1008002150 | ||
| A 1008001615 | LINE | |
| Repalced by: A 1008002150 | ||
| A 1008002050 | CONTROL UNIT | |
| Repalced by: A 1008002150 | ||
| A 1008002350 | CONTROL UNIT | |
| Repalced by: A 1008002150 | ||
| A 1008002150 | CONTROL UNIT | |
| 372 | A 1008050273 | SWITCH |
| 375 | A 0015455428 | PLUG |
| Repalced by: A 0025452628 | ||
| 375 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 375 | A 0095455428 | PLUG HOUSING |
| A 0025452228 | PLUG | |
| Repalced by: A 0095455328 | ||
| A 0095455328 | PLUG HOUSING | |
| A 0005453134 | FUSE | |
| Repalced by: N 041571000100 | ||
| 378 | N 041571000100 | FUSE ELEMENT |
| 381 | A 0008050058 | BUTTON |
| A 0008050158 | BUTTON | |
| Repalced by: A 0008050358 | ||
| 384 | A 0008050358 | BUTTON |
| A 0008050258 | BUTTON | |
| A 0008350279 | THERMOSTAT | |
| Repalced by: A 0008350679 | ||
| 387 | A 0008350679 | THERMOSTAT |
| 390 | A 1008350173 | SWITCH |
| A 1008000373 | SWITCH | |
| Repalced by: A 1008005373 | ||
| 394 | A 1008005373 | SWITCH |
| 397 | A 0015455328 | PLUG |
| Repalced by: A 0025452628 | ||
| 397 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 397 | A 0095455428 | PLUG HOUSING |
| A 0025452928 | PLUG | |
| Repalced by: A 0025452628 | ||
| A 0025452628 | PLUG | |
| Repalced by: A 0095455428 | ||
| A 0095455428 | PLUG HOUSING | |
| A 1008008681 | LINE | |
| Repalced by: A 1008068651 | ||
| A 1008068651 | LINE | |
| Repalced by: A 1008062149 | ||
| A 1008062149 | CONTROL LINE | |
| RED | ||
| A 1008000884 | LINE | |
| Repalced by: A 1008060850 | ||
| 400 | A 1008060850 | LINE |
| Repalced by: A 1008062149 | ||
| 400 | A 1008062149 | CONTROL LINE |
| RED | ||
| A 1008008781 | LINE | |
| Repalced by: A 1008068751 | ||
| A 1008068751 | LINE | |
| Repalced by: A 1008062249 | ||
| A 1008062249 | CONTROL LINE | |
| RED | ||
| A 1008000984 | LINE | |
| Repalced by: A 1008060950 | ||
| 404 | A 1008060950 | LINE |
| Repalced by: A 1008062249 | ||
| 404 | A 1008062249 | CONTROL LINE |
| RED | ||
| A 1008008881 | LINE | |
| Repalced by: A 1008068851 | ||
| A 1008068851 | LINE | |
| Repalced by: A 1008062149 | ||
| A 1008062149 | CONTROL LINE | |
| BLUE | ||
| A 1008001184 | LINE | |
| Repalced by: A 1008061150 | ||
| 408 | A 1008061150 | LINE |
| Repalced by: A 1008064049 | ||
| 408 | A 1008064049 | CONTROL LINE |
| Repalced by: A 1008064149 | ||
| 408 | A 1008064149 | CONTROL LINE |
| BLUE | ||
| A 1008008981 | LINE | |
| Repalced by: A 1008068951 | ||
| A 1008068951 | LINE | |
| Repalced by: A 1008062249 | ||
| A 1008062249 | CONTROL LINE | |
| BLUE | ||
| A 1008001284 | LINE | |
| Repalced by: A 1008061250 | ||
| 411 | A 1008061250 | LINE |
| Repalced by: A 1008062249 | ||
| 411 | A 1008062249 | CONTROL LINE |
| BLUE | ||
| A 1008001084 | LINE | |
| Repalced by: A 1008061050 | ||
| 415 | A 1008061050 | LINE |
| Repalced by: A 1008062849 | ||
| 415 | A 1008062849 | CONTROL LINE |
| RED | ||
| A 1008001384 | LINE | |
| Repalced by: A 1008061350 | ||
| 518 | A 1008061350 | LINE |
| Repalced by: A 1008062749 | ||
| 518 | A 1008062749 | CONTROL LINE |
| BLUE | ||
| A 1008000361 | CONTROL LEVER | |
| Repalced by: A 1008006073 | ||
| A 1008000761 | CONTROL LEVER | |
| Repalced by: A 1008006073 | ||
| A 1008004073 | SWITCH | |
| Repalced by: A 1008006073 | ||
| A 1008050361 | LEVER | |
| Repalced by: A 1008006073 | ||
| A 1008003773 | SWITCH | |
| Repalced by: A 1008006073 | ||
| 521 | A 1008006073 | SWITCH |
| 524 | A 1008050361 | LEVER |
| 528 | A 1008050375 | THREADED PIN |
| A 1008003075 | ELEMENT | |
| Repalced by: A 1008004775 | ||
| 531 | A 1008004775 | ELEMENT |
| 533 | A 1008052314 | BRACKET |
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000084004164 | SCREW | |
| A 1008000173 | SWITCH | |
| Repalced by: A 1008006873 | ||
| A 1008000373 | SWITCH | |
| Repalced by: A 1008006873 | ||
| A 1008005273 | SWITCH | |
| Repalced by: A 1008006873 | ||
| A 1008004973 | SWITCH | |
| Repalced by: A 1008006873 | ||
| 536 | A 1008006873 | SWITCH |
| 539 | A 1008050761 | LEVER |
| 542 | A 1008050375 | THREADED PIN |
| A 0009910180 | CLINCH-PIN | |
| A 1008000077 | CONNECTOR | |
| 547 | A 1008001077 | CONNECTOR |
| A 1008050025 | CLIP | |
| 550 | A 1008050025 | CLIP |
| 553 | A 1008050081 | GARNISH MOULDING |
| A 1008050181 | GARNISH MOULDING | |
| Repalced by: A 1008050981 | ||
| 556 | A 1008050981 | GARNISH MOULDING |
| A 1008050281 | GARNISH MOULDING | |
| Repalced by: A 1008050681 | ||
| A 1008050681 | GARNISH MOULDING | |
| N 001471002003 | GROOVED PIN | |
| 559 | A 1008050058 | BUTTON |
| 563 | A 1008050458 | BUTTON |
| 565 | A 1008050358 | BUTTON |
| N 000933005059 | SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| N 000127005203 | LOCK WASHER | |
| A 0009871781 | SEALING CORD | |
| 571 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 571 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 571 | A 1279950020 | CLAMP |
| 573 | N 007981003214 | SHEET METAL SCREW |
| 576 | A 1890940085 | RUBBER BUFFER |
| ON SIDE MEMBER,FRONT LEFT | ||
| 579 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 579 | N 304032008006 | NUT |
| 581 | N 000127008203 | LOCK WASHER |
| A 1008000019 | TANK | |
| Repalced by: A 1008000319 | ||
| 584 | A 1008000319 | TANK |
| A 1008000719 | TANK | |
| A 1008050119 | TANK | |
| Repalced by: A 1008000519 | ||
| 587 | A 1008000519 | PRECHAMBER |
| 590 | A 1008052103 | CONNECTOR |
| 592 | N 007603018100 | SEAL RING |
| N 000936028001 | NUT | |
| N 000432029000 | LOCK PLATE | |
| 600 | A 1008000518 | FIXTURE |
| 602 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 602 | N 304017008021 | SCREW |
| 604 | N 912004008102 | LOCK WASHER |
| 606 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 606 | N 304032008006 | NUT |
| 609 | A 1008000618 | FIXTURE |
| 612 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 612 | N 304017008021 | SCREW |
| 614 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 614 | N 304032008006 | NUT |
| 617 | N 912004008102 | LOCK WASHER |
| 620 | A 1890940085 | RUBBER BUFFER |
| 622 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 622 | N 304035008001 | NUT |
| 623 | N 000127008203 | LOCK WASHER |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| N 912004008102 | LOCK WASHER | |
| A 1008050005 | HOSE | |
| FROM PUMP TO PRESSURE RESERVOIR | ||
| A 1008050205 | HOSE | |
| FROM PUMP TO PRESSURE RESERVOIR | ||
| A 1008050105 | HOSE | |
| FROM PRESSURE RESERVOIR TO CONNECTOR | ||
| A 1008050305 | HOSE | |
| FROM PRESSURE RESERVOIR TO CONNECTOR | ||
| 625 | A 1008000096 | HOSE |
| Repalced by: A 1008050405 | ||
| 625 | A 1008050405 | HOSE |
| FROM PUMP TO PRESSURE RESERVOIR | ||
| N 003861006007 | GLAND | |
| N 915017006106 | UNION NUT | |
| 627 | A 1008050505 | HOSE |
| FROM PRESSURE RESERVOIR TO CONNECTOR ON LEFT SIDE MEMBER | ||
| A 1809971582 | HOSE | |
| 630 | A 1879950037 | CLAMP |
| HOSE TO FRONT LEFT SIDE MEMBER | ||
| 632 | N 000933006102 | SCREW |
| HOSE TO FRONT LEFT SIDE MEMBER | ||
| 634 | N 912004006102 | LOCK WASHER |
| HOSE TO FRONT LEFT SIDE MEMBER | ||
| 636 | N 000934006007 | NUT |
| HOSE TO FRONT LEFT SIDE MEMBER | ||
| 638 | A 3129952720 | CLAMP |
| HOSE ON RADIATOR GUARD | ||
| N 000934006007 | NUT | |
| HOSE ON RADIATOR GUARD | ||
| N 912004006102 | LOCK WASHER | |
| HOSE ON RADIATOR GUARD | ||
| N 003861006002 | GLAND | |
| HOSE ON PARTITION SCREW CONNECTION | ||
| N 915017006106 | UNION NUT | |
| HOSE ON PARTITION SCREW CONNECTION | ||
| A 1539950120 | CLAMP | |
| PRESSURE-RESERVOIR-TO-CONNECTOR HOSE TO WHEELHOUSE | ||
| N 007981004322 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| PRESSURE-RESERVOIR-TO-CONNECTOR HOSE TO WHEELHOUSE | ||
| A 1008000119 | TANK | |
| Repalced by: A 1078000219 | ||
| A 1008050519 | TANK | |
| Repalced by: A 1078000219 | ||
| A 1098050319 | TANK | |
| Repalced by: A 1078000219 | ||
| 643 | A 1078000219 | TANK |
| 645 | A 1128050055 | GUIDE |
| 647 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 647 | A 1238050298 | SEAL |
| 649 | A 1008000032 | CLAMP |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1128000178 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1078000778 | VALVE | |
| Repalced by: A 1168000378 | ||
| 658 | A 1168000378 | VALVE |
| A 1008002675 | ELEMENT | |
| Repalced by: A 1008004575 | ||
| 660 | A 1008004575 | ELEMENT |
| 662 | A 1009870341 | RUBBER RING |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| 665 | A 1128050203 | CONNECTOR |
| FILLER NECK FLAP | ||
| 665 | A 1128050203 | CONNECTOR |
| REAR LID LOCK | ||
| 665 | A 1128050203 | CONNECTOR |
| RIGHT FRONT DOOR | ||
| 665 | A 1128050203 | CONNECTOR |
| REAR DOOR | ||
| 665 | A 1128050203 | CONNECTOR |
| CENTRAL SIDE DOOR | ||
| A 1008050022 | DISTRIBUTOR | |
| Repalced by: A 1158050322 | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 668 | A 1170780145 | BRANCH-OFF FITTING |
| SIDE MEMBER | ||
| 668 | A 1170780145 | BRANCH-OFF FITTING |
| INSTRUMENT PANEL | ||
| 668 | A 1170780145 | BRANCH-OFF FITTING |
| FRONT PANEL PILLAR | ||
| A 1128050022 | DISTRIBUTOR | |
| Repalced by: A 1158050422 | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 670 | A 1170780145 | BRANCH-OFF FITTING |
| REAR LID VACUUM ELEMENT | ||
| 670 | A 1170780145 | BRANCH-OFF FITTING |
| INSTRUMENT PANEL | ||
| A 1128050103 | CONNECTOR | |
| Repalced by: A 0079976182 | ||
| A 1128050003 | CONNECTOR | |
| Repalced by: A 0079976182 | ||
| 673 | A 0079976182 | HOSE |
| 675 | A 1008001477 | CONNECTOR |
| A 1008050025 | CLIP | |
| N 007981004252 | SHEET METAL SCREW | |
| A 1128000273 | SWITCH | |
| Repalced by: A 1008006973 | ||
| A 1128000173 | SWITCH | |
| Repalced by: A 1008006973 | ||
| A 1158000073 | SWITCH | |
| Repalced by: A 1008006973 | ||
| A 1008006973 | SWITCH | |
| Repalced by: A 1168000473 | ||
| A 1128000273 | SWITCH | |
| Repalced by: A 1008007073 | ||
| A 1128000173 | SWITCH | |
| Repalced by: A 1008007073 | ||
| A 1158000073 | SWITCH | |
| Repalced by: A 1008007073 | ||
| A 1008007073 | SWITCH | |
| Repalced by: A 1168000473 | ||
| 678 | A 1168000473 | SWITCH |
| 679 | A 1008051374 | ROD |
| LEFT | ||
| A 1008051474 | ROD | |
| RIGHT | ||
| A 0039891585 | ADHESIVE TAPE | |
| 680 | A 1168050114 | BRACKET |
| 680H | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 680H | N 000000002062 | SCREW |
| N 007981004208 | SHEET METAL SCREW | |
| N 000433004307 | WASHER | |
| N 006797004232 | TOOTHED WASHER | |
| A 1129910007 | PIN | |
| Repalced by: N 000094001512 | ||
| N 000094001512 | COTTER PIN | |
| A 1128000075 | ELEMENT | |
| Repalced by: A 1128001075 | ||
| A 1128001075 | ELEMENT | |
| RIGHT FRONT DOOR, BOTTOM | ||
| A 1008003575 | ELEMENT | |
| Repalced by: A 1008004375 | ||
| 681 | A 1008004375 | ELEMENT |
| Repalced by: A 1008004475 | ||
| 681 | A 1008004475 | ELEMENT |
| LEFT FRONT DOOR | ||
| 681 | A 1008004475 | ELEMENT |
| CENTRAL SIDE DOOR, LEFT | ||
| A 1008005175 | ELEMENT | |
| Repalced by: A 1008005275 | ||
| A 1008005275 | ELEMENT | |
| LEFT FRONT DOOR | ||
| A 1008005275 | ELEMENT | |
| CENTRAL SIDE DOOR, LEFT | ||
| A 1008003575 | ELEMENT | |
| Repalced by: A 1008004475 | ||
| A 1008004475 | ELEMENT | |
| RIGHT FRONT DOOR | ||
| A 1008004475 | ELEMENT | |
| CENTRAL SIDE DOOR, RIGHT | ||
| A 1008005275 | ELEMENT | |
| RIGHT FRONT DOOR | ||
| A 1008005275 | ELEMENT | |
| CENTRAL SIDE DOOR, RIGHT | ||
| A 1128050055 | GUIDE | |
| A 1008000711 | PLATE | |
| N 007982004245 | SHEET METAL SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| A 1008002975 | ELEMENT | |
| Repalced by: A 1008003975 | ||
| A 1008003175 | ELEMENT | |
| Repalced by: A 1008003975 | ||
| 685 | A 1008003975 | ELEMENT |
| LEFT | ||
| A 1008005375 | ELEMENT | |
| Repalced by: A 1008005475 | ||
| A 1008005475 | ELEMENT | |
| LEFT | ||
| A 1008002875 | ELEMENT | |
| Repalced by: A 1008003875 | ||
| A 1008003275 | ELEMENT | |
| Repalced by: A 1008003875 | ||
| A 1008003875 | ELEMENT | |
| Repalced by: A 1008003975 | ||
| A 1008003975 | ELEMENT | |
| RIGHT | ||
| A 1008005475 | ELEMENT | |
| RIGHT | ||
| A 1128050055 | GUIDE | |
| A 1008000711 | PLATE | |
| N 007982004245 | SHEET METAL SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 311 MM | ||
| 690 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 690 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| A 0009881878 | CLIP | |
| 692 | A 0059973482 | HOSE |
| BLACK | ||
| 695 | A 0059975982 | HOSE |
| WHITE | ||
| A 0079976182 | HOSE | |
| BLACK; FROM INSTRUMENT PANEL TO AIR CONDITIONER CONTROL BOX | ||
| 697 | A 1008050439 | PIPE |
| 699 | A 1008050539 | PIPE |
| 702 | A 1008003083 | LINE |
| 1011 MM | ||
| 704 | A 1008000183 | LINE |
| GREEN | ||
| 2761 MM | ||
| 706 | A 1008003183 | LINE |
| Repalced by: A 1008000683 | ||
| 706 | A 1008000683 | LINE |
| 411 MM | ||
| 708 | A 1008000583 | LINE |
| GREEN/WHITE | ||
| 611 MM | ||
| 710 | A 1008000983 | LINE |
| RED | ||
| 971 MM | ||
| A 1008001083 | LINE | |
| 1071 MM RIGHT RED | ||
| 712 | A 1008005483 | LINE |
| Repalced by: A 1008004583 | ||
| 712 | A 1008004583 | LINE |
| RED | ||
| 714 | A 1008005583 | LINE |
| Repalced by: A 1008004583 | ||
| 714 | A 1008004583 | LINE |
| BLUE | ||
| 716 | A 1008001783 | LINE |
| Repalced by: A 1008004883 | ||
| 716 | A 1008004883 | LINE |
| BLUE | ||
| 1141 MM | ||
| 718 | A 1008000683 | LINE |
| GREEN/WHITE | ||
| 311 MM | ||
| 720 | A 1008000783 | LINE |
| GREEN/WHITE | ||
| 261 MM | ||
| 722 | A 1008005183 | LINE |
| GREEN/YELLOW/GREEN | ||
| 3111 MM | ||
| A 1008004283 | LINE | |
| Repalced by: A 1008002983 | ||
| 724 | A 1008002983 | LINE |
| GREEN/YELLOW/GREEN | ||
| 1311 MM | ||
| A 1008060251 | LINE | |
| Repalced by: A 1008062349 | ||
| A 1008062349 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 200 MM | ||
| 726 | A 1008002083 | LINE |
| Repalced by: A 1008005083 | ||
| 726 | A 1008005083 | LINE |
| GREEN | ||
| 2931 MM | ||
| A 1008005083 | LINE | |
| GREEN | ||
| 3631 MM | ||
| 728 | A 1008002183 | LINE |
| Repalced by: A 1008005283 | ||
| 728 | A 1008005283 | LINE |
| GREEN/GREEN/YELLOW | ||
| 4491 MM | ||
| A 1008005283 | LINE | |
| GREEN/GREEN/YELLOW | ||
| 5291 MM | ||
| 730 | A 1008001983 | LINE |
| GREEN/YELLOW | ||
| 2661 MM | ||
| 732 | A 1008003483 | LINE |
| 661 MM | ||
| 734 | A 1008005383 | LINE |
| WITHE | ||
| 2011 MM | ||
| 736 | A 1008004583 | LINE |
| GREEN/YELLOW/GREEN | ||
| 1451 MM | ||
| 738 | A 1008004383 | LINE |
| GREEN/BLUE/GREEN | ||
| 2411 MM | ||
| A 1008004683 | LINE | |
| RED,LEFT, 1511 MM | ||
| A 1008004483 | LINE | |
| RED,RIGHT, 1411 MM | ||
| A 1008004983 | LINE | |
| GREEN/BLUE/GREEN | ||
| 2511 MM | ||
| A 1008000381 | LINE | |
| Repalced by: A 1008060351 | ||
| 742 | A 1008060351 | LINE |
| Repalced by: A 1008063349 | ||
| 742 | A 1008063349 | CONTROL LINE |
| FROM FRONT SEAT TO CONNECTOR AT LEFT SIDE MEMBER, RED | ||
| 630 MM | ||
| A 1008000481 | LINE | |
| Repalced by: A 1008060451 | ||
| A 1008060451 | LINE | |
| Repalced by: A 1008063349 | ||
| A 1008063349 | CONTROL LINE | |
| FROM FRONT SEAT TO CONNECTOR AT RIGHT SIDE MEMBER, RED | ||
| 630 MM | ||
| A 1008000581 | LINE | |
| Repalced by: A 1008060551 | ||
| 744 | A 1008060551 | LINE |
| Repalced by: A 1008062449 | ||
| 744 | A 1008062449 | CONTROL LINE |
| RED | ||
| 270 MM | ||
| A 1008000681 | LINE | |
| Repalced by: A 1008060651 | ||
| 746 | A 1008060651 | LINE |
| Repalced by: A 1008063249 | ||
| 746 | A 1008063249 | CONTROL LINE |
| RED | ||
| 600 MM | ||
| A 1008000781 | LINE | |
| Repalced by: A 1008060751 | ||
| 748 | A 1008060751 | LINE |
| Repalced by: A 1008063149 | ||
| 748 | A 1008063149 | CONTROL LINE |
| RED | ||
| 530 MM | ||
| A 1008000881 | LINE | |
| Repalced by: A 1008060851 | ||
| 750 | A 1008060851 | LINE |
| Repalced by: A 1008064349 | ||
| 750 | A 1008064349 | CONTROL LINE |
| RED | ||
| 1400 MM | ||
| A 1008000981 | LINE | |
| Repalced by: A 1008060951 | ||
| 752 | A 1008060951 | LINE |
| Repalced by: A 1008064849 | ||
| 752 | A 1008064849 | CONTROL LINE |
| RED | ||
| 2430 MM | ||
| A 1008001081 | LINE | |
| Repalced by: A 1008061051 | ||
| 754 | A 1008061051 | LINE |
| Repalced by: A 1008063149 | ||
| 754 | A 1008063149 | CONTROL LINE |
| BLUE | ||
| 550 MM | ||
| A 1008001181 | LINE | |
| Repalced by: A 1008061151 | ||
| 756 | A 1008061151 | LINE |
| Repalced by: A 1008063249 | ||
| 756 | A 1008063249 | CONTROL LINE |
| BLUE | ||
| 610 MM | ||
| A 1008001281 | LINE | |
| Repalced by: A 1008061251 | ||
| A 1008061251 | LINE | |
| Repalced by: A 1008063249 | ||
| A 1008063249 | CONTROL LINE | |
| BLUE | ||
| 610 MM | ||
| A 1008001381 | LINE | |
| Repalced by: A 1008061351 | ||
| 758 | A 1008061351 | LINE |
| Repalced by: A 1008064749 | ||
| 758 | A 1008064749 | CONTROL LINE |
| GREEN/WHITE | ||
| 2185 MM | ||
| A 1008064050 | LINE | |
| Repalced by: A 1008064749 | ||
| A 1008064749 | CONTROL LINE | |
| GREEN/WHITE | ||
| 2185 MM | ||
| A 1008001481 | LINE | |
| Repalced by: A 1008061451 | ||
| A 1008061451 | LINE | |
| Repalced by: A 1008063049 | ||
| 760 | A 1008063049 | CONTROL LINE |
| GREEN/WHITE | ||
| 490 MM | ||
| A 1008001581 | LINE | |
| Repalced by: A 1008061551 | ||
| A 1008061551 | LINE | |
| Repalced by: A 1008064249 | ||
| A 1008064249 | CONTROL LINE | |
| FROM FRONT PANEL PILLAR CONNECTOR TO LEFT SIDE MEMBER CONNECTOR | ||
| 1255 MM | ||
| A 1008062850 | LINE | |
| Repalced by: A 1008064549 | ||
| A 1008064549 | CONTROL LINE | |
| GREEN/WHITE | ||
| 1955 MM | ||
| A 1008001681 | LINE | |
| Repalced by: A 1008061651 | ||
| A 1008061651 | LINE | |
| Repalced by: A 1008064749 | ||
| A 1008064749 | CONTROL LINE | |
| GREEN/WHITE | ||
| 2220 MM | ||
| A 1008001781 | LINE | |
| Repalced by: A 1008061751 | ||
| 766 | A 1008061751 | LINE |
| Repalced by: A 1008063449 | ||
| 766 | A 1008063449 | CONTROL LINE |
| GREEN/WHITE | ||
| 695 MM | ||
| A 1008002581 | LINE | |
| Repalced by: A 1008062551 | ||
| 768 | A 1008062551 | LINE |
| GREEN/BLUE/GREEN | ||
| 185 MM | ||
| A 1008002681 | LINE | |
| Repalced by: A 1008062651 | ||
| 771 | A 1008062651 | LINE |
| Repalced by: A 1008063949 | ||
| 771 | A 1008063949 | CONTROL LINE |
| GREEN/BLUE/GREEN | ||
| 1040 MM | ||
| A 1008069050 | LINE | |
| Repalced by: A 1008063949 | ||
| A 1008063949 | CONTROL LINE | |
| GREEN/BLUE/GREEN | ||
| 1035 MM | ||
| A 1008064450 | LINE | |
| Repalced by: A 1008063749 | ||
| A 1008063749 | CONTROL LINE | |
| GREEN/BLUE/GREEN | ||
| 890 MM | ||
| A 1008069150 | LINE | |
| Repalced by: A 1008063749 | ||
| A 1008063749 | CONTROL LINE | |
| GREEN/BLUE/GREEN | ||
| 885 MM | ||
| A 1008002781 | LINE | |
| Repalced by: A 1008062751 | ||
| 773 | A 1008062751 | LINE |
| Repalced by: A 1008064949 | ||
| 773 | A 1008064949 | CONTROL LINE |
| GREEN/BLUE/GREEN | ||
| 2595 MM | ||
| A 1008068750 | LINE | |
| Repalced by: A 1008064949 | ||
| A 1008064949 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| A 1008065350 | LINE | |
| Repalced by: A 1008065149 | ||
| A 1008065149 | CONTROL LINE | |
| GREEN/BLUE/GREEN | ||
| A 1008068950 | LINE | |
| Repalced by: A 1008065149 | ||
| A 1008065149 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 775 | A 1008063650 | LINE |
| Repalced by: A 1008063549 | ||
| 775 | A 1008063549 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| A 1008002881 | LINE | |
| Repalced by: A 1008062851 | ||
| A 1008062851 | LINE | |
| GREEN/RED/GREEN | ||
| 1220 MM | ||
| 778 | A 1008065650 | LINE |
| Repalced by: A 1008065149 | ||
| 778 | A 1008065149 | CONTROL LINE |
| GREEN/RED/GREEN | ||
| 1210 MM | ||
| A 1008064550 | LINE | |
| Repalced by: A 1008063949 | ||
| A 1008063949 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 1210 MM | ||
| A 1008002981 | LINE | |
| Repalced by: A 1008062951 | ||
| A 1008062951 | LINE | |
| GREEN/RED/GREEN | ||
| 620 MM | ||
| 780 | A 1008065750 | LINE |
| Repalced by: A 1008063949 | ||
| 780 | A 1008063949 | CONTROL LINE |
| GREEN/RED/GREEN | ||
| 1030 MM | ||
| A 1008063250 | LINE | |
| Repalced by: A 1008064149 | ||
| A 1008064149 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 770 MM | ||
| A 1008003081 | LINE | |
| Repalced by: A 1008063051 | ||
| A 1008063050 | LINE | |
| Repalced by: A 1008063749 | ||
| A 1008063749 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 190 MM | ||
| 782 | A 1008065850 | LINE |
| Repalced by: A 1008063849 | ||
| 782 | A 1008063849 | CONTROL LINE |
| GREEN/RED/GREEN | ||
| 960 MM | ||
| A 1008063150 | LINE | |
| Repalced by: A 1008063649 | ||
| A 1008063649 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 1070 MM | ||
| A 1008063350 | LINE | |
| Repalced by: A 1008065049 | ||
| A 1008065049 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 2800 MM | ||
| 784 | A 1008065950 | LINE |
| Repalced by: A 1008064949 | ||
| 784 | A 1008064949 | CONTROL LINE |
| GREEN/RED/GREEN | ||
| 2660 MM | ||
| A 1008065250 | LINE | |
| Repalced by: A 1008065249 | ||
| A 1008065249 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 3500 MM | ||
| A 1008066050 | LINE | |
| Repalced by: A 1008065149 | ||
| A 1008065149 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 3360 MM | ||
| A 1008003381 | LINE | |
| Repalced by: A 1008063351 | ||
| A 1008063351 | LINE | |
| Repalced by: A 1008064349 | ||
| A 1008064349 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 1460 MM | ||
| A 1008003481 | LINE | |
| Repalced by: A 1008063451 | ||
| A 1008063451 | LINE | |
| Repalced by: A 1008064449 | ||
| A 1008064449 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 1520 MM | ||
| A 1008003581 | LINE | |
| Repalced by: A 1008063551 | ||
| 790 | A 1008063551 | LINE |
| Repalced by: A 1008062749 | ||
| 790 | A 1008062749 | CONTROL LINE |
| 360 MM GREEN-GREEN-GREEN | ||
| A 1008003681 | LINE | |
| Repalced by: A 1008063651 | ||
| 792 | A 1008063651 | LINE |
| Repalced by: A 1008062649 | ||
| 792 | A 1008062649 | CONTROL LINE |
| 230 MM GREEN-GREEN-GREEN | ||
| A 1008003781 | LINE | |
| Repalced by: A 1008063751 | ||
| 794 | A 1008063751 | LINE |
| Repalced by: A 1008063449 | ||
| 794 | A 1008063449 | CONTROL LINE |
| 685 MM GREEN-GREEN-GREEN | ||
| A 1008004381 | LINE | |
| Repalced by: A 1008064351 | ||
| 796 | A 1008064351 | LINE |
| Repalced by: A 1008064049 | ||
| 796 | A 1008064049 | CONTROL LINE |
| Repalced by: A 1008064149 | ||
| 796 | A 1008064149 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 1050 MM | ||
| 798 | A 1008065050 | LINE |
| Repalced by: A 1008063749 | ||
| 798 | A 1008063749 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 850 MM | ||
| A 1008004581 | LINE | |
| Repalced by: A 1008064551 | ||
| 800 | A 1008064551 | LINE |
| Repalced by: A 1008062149 | ||
| 800 | A 1008062149 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 135 MM | ||
| A 1008004681 | LINE | |
| Repalced by: A 1008064651 | ||
| 802 | A 1008064651 | LINE |
| Repalced by: A 1008062649 | ||
| 802 | A 1008062649 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 330 MM | ||
| A 1008004781 | LINE | |
| Repalced by: A 1008064751 | ||
| 804 | A 1008064751 | LINE |
| Repalced by: A 1008063249 | ||
| 804 | A 1008063249 | CONTROL LINE |
| RED | ||
| 615 MM | ||
| A 1008004881 | LINE | |
| Repalced by: A 1008064851 | ||
| 806 | A 1008064851 | LINE |
| Repalced by: A 1008062749 | ||
| 806 | A 1008062749 | CONTROL LINE |
| RED | ||
| 350 MM | ||
| A 1008004981 | LINE | |
| Repalced by: A 1008064951 | ||
| 808 | A 1008064951 | LINE |
| Repalced by: A 1008064049 | ||
| 808 | A 1008064049 | CONTROL LINE |
| Repalced by: A 1008064149 | ||
| 808 | A 1008064149 | CONTROL LINE |
| GREEN/BLUE/GREEN | ||
| 1150 MM | ||
| A 1008068850 | LINE | |
| Repalced by: A 1008064049 | ||
| A 1008064049 | CONTROL LINE | |
| Repalced by: A 1008064149 | ||
| A 1008064149 | CONTROL LINE | |
| GREEN/RED/GREEN | ||
| 1150 MM | ||
| A 1008005081 | LINE | |
| Repalced by: A 1008065051 | ||
| A 1008065051 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN | ||
| 400 MM | ||
| 810 | A 1008066150 | LINE |
| Repalced by: A 1008062849 | ||
| 810 | A 1008062849 | CONTROL LINE |
| GREEN | ||
| 400 MM | ||
| A 1008064850 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN | ||
| 420 MM | ||
| A 1008005181 | LINE | |
| Repalced by: A 1008065151 | ||
| A 1008065151 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN/GREEN/YELLOW | ||
| 480 MM | ||
| A 1008066250 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN/GREEN/YELLOW | ||
| 390 MM | ||
| A 1008064950 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN/GREEN/YELLOW | ||
| 420 MM | ||
| A 1008005281 | LINE | |
| Repalced by: A 1008065251 | ||
| A 1008065251 | LINE | |
| RED | ||
| 510 MM | ||
| 813 | A 1008066350 | LINE |
| Repalced by: A 1008063049 | ||
| 813 | A 1008063049 | CONTROL LINE |
| RED | ||
| 510 MM | ||
| A 1008005381 | LINE | |
| Repalced by: A 1008065351 | ||
| A 1008065351 | LINE | |
| RED | ||
| 640 MM | ||
| A 1008066450 | LINE | |
| Repalced by: A 1008063349 | ||
| A 1008063349 | CONTROL LINE | |
| RED | ||
| 640 MM | ||
| A 1008005481 | LINE | |
| Repalced by: A 1008065451 | ||
| 815 | A 1008065451 | LINE |
| GREEN | ||
| 270 MM | ||
| A 1008005581 | LINE | |
| Repalced by: A 1008065551 | ||
| A 1008065551 | LINE | |
| Repalced by: A 1008062449 | ||
| A 1008062449 | CONTROL LINE | |
| GREEN/GREEN/YELLOW | ||
| 270 MM | ||
| A 1008005681 | LINE | |
| Repalced by: A 1008065651 | ||
| 817 | A 1008065651 | LINE |
| Repalced by: A 1008063049 | ||
| 817 | A 1008063049 | CONTROL LINE |
| RED | ||
| 500 MM | ||
| A 1008005781 | LINE | |
| Repalced by: A 1008065751 | ||
| A 1008065751 | LINE | |
| RED | ||
| 500 MM | ||
| A 1008005881 | LINE | |
| Repalced by: A 1008065851 | ||
| 819 | A 1008065851 | LINE |
| Repalced by: A 1008063849 | ||
| 819 | A 1008063849 | CONTROL LINE |
| RED | ||
| 1010 MM | ||
| A 1008005981 | LINE | |
| Repalced by: A 1008065951 | ||
| A 1008065951 | LINE | |
| Repalced by: A 1008063849 | ||
| A 1008063849 | CONTROL LINE | |
| RED | ||
| 980 MM | ||
| A 1008006081 | LINE | |
| Repalced by: A 1008066051 | ||
| 821 | A 1008066051 | LINE |
| Repalced by: A 1008062149 | ||
| 821 | A 1008062149 | CONTROL LINE |
| GREEN/WHITE/GREEN | ||
| 135 MM | ||
| A 1008006181 | LINE | |
| Repalced by: A 1008066151 | ||
| A 1008066151 | LINE | |
| Repalced by: A 1008062349 | ||
| A 1008062349 | CONTROL LINE | |
| GREEN/WHITE/GREEN | ||
| 200 MM | ||
| A 1008006281 | LINE | |
| Repalced by: A 1008066251 | ||
| 823 | A 1008066251 | LINE |
| Repalced by: A 1008062649 | ||
| 823 | A 1008062649 | CONTROL LINE |
| GREEN/GREEN/WHITE | ||
| 340 MM | ||
| A 1008006381 | LINE | |
| Repalced by: A 1008066351 | ||
| A 1008066351 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| GREEN/GREEN/WHITE | ||
| 390 MM | ||
| A 1008006481 | LINE | |
| Repalced by: A 1008066451 | ||
| 825 | A 1008066451 | LINE |
| Repalced by: A 1008062849 | ||
| 825 | A 1008062849 | CONTROL LINE |
| RED | ||
| 400 MM | ||
| A 1008006581 | LINE | |
| Repalced by: A 1008066551 | ||
| A 1008066551 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| RED | ||
| 400 MM | ||
| A 1008006681 | LINE | |
| Repalced by: A 1008066651 | ||
| 827 | A 1008066651 | LINE |
| Repalced by: A 1008063049 | ||
| 827 | A 1008063049 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 510 MM | ||
| A 1008006781 | LINE | |
| Repalced by: A 1008066751 | ||
| A 1008066751 | LINE | |
| Repalced by: A 1008063049 | ||
| A 1008063049 | CONTROL LINE | |
| GREEN/YELLOW/GREEN | ||
| 510 MM | ||
| A 1008006881 | LINE | |
| Repalced by: A 1008066851 | ||
| 829 | A 1008066851 | LINE |
| Repalced by: A 1008064049 | ||
| 829 | A 1008064049 | CONTROL LINE |
| Repalced by: A 1008064149 | ||
| 829 | A 1008064149 | CONTROL LINE |
| GREEN/YELLOW/GREEN | ||
| 1095 MM | ||
| A 1008006981 | LINE | |
| Repalced by: A 1008066951 | ||
| A 1008066951 | LINE | |
| Repalced by: A 1008064049 | ||
| A 1008064049 | CONTROL LINE | |
| Repalced by: A 1008064149 | ||
| A 1008064149 | CONTROL LINE | |
| GREEN/YELLOW/GREEN | ||
| 1095 MM | ||
| A 1008007081 | LINE | |
| Repalced by: A 1008067051 | ||
| A 1008067051 | LINE | |
| BLUE | ||
| 580 MM | ||
| 831 | A 1008066550 | LINE |
| Repalced by: A 1008063249 | ||
| 831 | A 1008063249 | CONTROL LINE |
| BLUE | ||
| 580 MM | ||
| A 1008007181 | LINE | |
| Repalced by: A 1008067151 | ||
| A 1008067151 | LINE | |
| BLUE | ||
| 715 MM | ||
| A 1008066650 | LINE | |
| Repalced by: A 1008063449 | ||
| A 1008063449 | CONTROL LINE | |
| BLUE | ||
| 715 MM | ||
| A 1008007281 | LINE | |
| Repalced by: A 1008067251 | ||
| 833 | A 1008067251 | LINE |
| Repalced by: A 1008063849 | ||
| 833 | A 1008063849 | CONTROL LINE |
| BLUE | ||
| 990 MM | ||
| A 1008007381 | LINE | |
| Repalced by: A 1008067351 | ||
| A 1008067351 | LINE | |
| Repalced by: A 1008063849 | ||
| A 1008063849 | CONTROL LINE | |
| BLUE | ||
| 940 MM | ||
| A 1008007481 | LINE | |
| Repalced by: A 1008067451 | ||
| 835 | A 1008067451 | LINE |
| Repalced by: A 1008064649 | ||
| 835 | A 1008064649 | CONTROL LINE |
| GREEN/WHITE/YELLOW | ||
| 2100 MM | ||
| 837 | A 1008063450 | LINE |
| Repalced by: A 1008063749 | ||
| 837 | A 1008063749 | CONTROL LINE |
| RED | ||
| 875 MM | ||
| A 1008063550 | LINE | |
| Repalced by: A 1008063749 | ||
| A 1008063749 | CONTROL LINE | |
| RED | ||
| 875 MM | ||
| A 1008008081 | LINE | |
| Repalced by: A 1008068051 | ||
| 839 | A 1008068051 | LINE |
| Repalced by: A 1008062549 | ||
| 839 | A 1008062549 | CONTROL LINE |
| BLUE | ||
| 280 MM | ||
| A 1008062350 | LINE | |
| Repalced by: A 1008062249 | ||
| A 1008062249 | CONTROL LINE | |
| BLUE | ||
| 170 MM | ||
| A 1008008181 | LINE | |
| Repalced by: A 1008068151 | ||
| 842 | A 1008068151 | LINE |
| Repalced by: A 1008062749 | ||
| 842 | A 1008062749 | CONTROL LINE |
| RED | ||
| 350 MM | ||
| A 1008061950 | LINE | |
| Repalced by: A 1008062449 | ||
| A 1008062449 | CONTROL LINE | |
| RED | ||
| 240 MM | ||
| A 1008008281 | LINE | |
| Repalced by: A 1008068251 | ||
| 844 | A 1008068251 | LINE |
| Repalced by: A 1008062849 | ||
| 844 | A 1008062849 | CONTROL LINE |
| RED | ||
| 400 MM | ||
| A 1008061450 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| RED | ||
| 400 MM | ||
| A 1008008381 | LINE | |
| Repalced by: A 1008067750 | ||
| 846 | A 1008068351 | LINE |
| Repalced by: A 1008067750 | ||
| A 1008067750 | LINE | |
| Repalced by: A 1008062949 | ||
| A 1008062949 | CONTROL LINE | |
| WINDOW REGULATOR,GREEN | ||
| 460 MM | ||
| A 1008068150 | LINE | |
| Repalced by: A 1008062349 | ||
| A 1008062349 | CONTROL LINE | |
| WINDOW REGULATOR,GREEN | ||
| 230 MM | ||
| A 1008061650 | LINE | |
| Repalced by: A 1008067850 | ||
| A 1008067850 | LINE | |
| Repalced by: A 1008062949 | ||
| A 1008062949 | CONTROL LINE | |
| WINDOW REGULATOR,GREEN | ||
| 460 MM | ||
| A 1008068250 | LINE | |
| Repalced by: A 1008062349 | ||
| A 1008062349 | CONTROL LINE | |
| WINDOW REGULATOR,GREEN | ||
| 230 MM | ||
| A 1008008481 | LINE | |
| Repalced by: A 1008068451 | ||
| 849 | A 1008068451 | LINE |
| Repalced by: A 1008064249 | ||
| 849 | A 1008064249 | CONTROL LINE |
| BLUE | ||
| 1240 MM | ||
| A 1008062150 | LINE | |
| Repalced by: A 1008064249 | ||
| A 1008064249 | CONTROL LINE | |
| BLUE | ||
| 1240 MM | ||
| A 1008008581 | LINE | |
| Repalced by: A 1008068551 | ||
| 852 | A 1008068551 | LINE |
| Repalced by: A 1008064049 | ||
| 852 | A 1008064049 | CONTROL LINE |
| Repalced by: A 1008064149 | ||
| 852 | A 1008064149 | CONTROL LINE |
| RED | ||
| 1145 MM | ||
| A 1008000584 | LINE | |
| Repalced by: A 1008060550 | ||
| 854 | A 1008060550 | LINE |
| Repalced by: A 1008063249 | ||
| 854 | A 1008063249 | CONTROL LINE |
| GREEN/WHITE | ||
| 590 MM | ||
| A 1008063750 | LINE | |
| Repalced by: A 1008064449 | ||
| A 1008064449 | CONTROL LINE | |
| GREEN/WHITE | ||
| 1585 MM | ||
| A 1008000684 | LINE | |
| Repalced by: A 1008060650 | ||
| 856 | A 1008060650 | LINE |
| Repalced by: A 1008063549 | ||
| 856 | A 1008063549 | CONTROL LINE |
| RED | ||
| 730 MM | ||
| A 1008063850 | LINE | |
| Repalced by: A 1008063049 | ||
| A 1008063049 | CONTROL LINE | |
| RED | ||
| 510 MM | ||
| A 1008000784 | LINE | |
| Repalced by: A 1008060750 | ||
| 858 | A 1008060750 | LINE |
| Repalced by: A 1008063449 | ||
| 858 | A 1008063449 | CONTROL LINE |
| BLUE | ||
| 700 MM | ||
| A 1008063950 | LINE | |
| Repalced by: A 1008063449 | ||
| A 1008063449 | CONTROL LINE | |
| BLUE | ||
| 695 MM | ||
| A 1008009081 | LINE | |
| Repalced by: A 1008069051 | ||
| 860 | A 1008069051 | LINE |
| Repalced by: A 1008062349 | ||
| 860 | A 1008062349 | CONTROL LINE |
| GREEN/YELLOW | ||
| 230 MM | ||
| A 1008061850 | LINE | |
| Repalced by: A 1008062349 | ||
| A 1008062349 | CONTROL LINE | |
| GREEN | ||
| 200 MM | ||
| A 1008009181 | LINE | |
| Repalced by: A 1008068050 | ||
| A 1008069151 | LINE | |
| Repalced by: A 1008068050 | ||
| 863 | A 1008068050 | LINE |
| Repalced by: A 1008062449 | ||
| 863 | A 1008062449 | CONTROL LINE |
| WINDOW REGULATOR, GREEN/YELLOW 270 MM | ||
| A 1008061750 | LINE | |
| Repalced by: A 1008067950 | ||
| A 1008067950 | LINE | |
| Repalced by: A 1008062449 | ||
| A 1008062449 | CONTROL LINE | |
| WINDOW REGULATOR,GREEN | ||
| 270 MM | ||
| A 1008009281 | LINE | |
| Repalced by: A 1008069251 | ||
| 865 | A 1008069251 | LINE |
| Repalced by: A 1008064149 | ||
| 865 | A 1008064149 | CONTROL LINE |
| RED | ||
| 1140 MM | ||
| A 1008009381 | LINE | |
| Repalced by: A 1008069351 | ||
| 867 | A 1008069351 | LINE |
| Repalced by: A 1008062849 | ||
| 867 | A 1008062849 | CONTROL LINE |
| RED | ||
| 400 MM | ||
| A 1008061550 | LINE | |
| Repalced by: A 1008062849 | ||
| A 1008062849 | CONTROL LINE | |
| RED | ||
| 400 MM | ||
| A 1008009481 | LINE | |
| Repalced by: A 1008069451 | ||
| 869 | A 1008069451 | LINE |
| Repalced by: A 1008062549 | ||
| 869 | A 1008062549 | CONTROL LINE |
| RED | ||
| 310 MM | ||
| A 1008062050 | LINE | |
| Repalced by: A 1008062549 | ||
| A 1008062549 | CONTROL LINE | |
| RED | ||
| 280 MM | ||
| A 1008009581 | LINE | |
| Repalced by: A 1008069551 | ||
| 872 | A 1008069551 | LINE |
| Repalced by: A 1008064149 | ||
| 872 | A 1008064149 | CONTROL LINE |
| BLUE | ||
| 1220 MM | ||
| A 1008062250 | LINE | |
| Repalced by: A 1008064149 | ||
| A 1008064149 | CONTROL LINE | |
| BLUE | ||
| 1170 MM | ||
| A 1008009681 | LINE | |
| Repalced by: A 1008069651 | ||
| 874 | A 1008069651 | LINE |
| Repalced by: A 1008062749 | ||
| 874 | A 1008062749 | CONTROL LINE |
| BLUE | ||
| 300 MM | ||
| A 1008062450 | LINE | |
| Repalced by: A 1008062749 | ||
| A 1008062749 | CONTROL LINE | |
| BLUE | ||
| 355 MM | ||
| A 1008000184 | LINE | |
| Repalced by: A 1008060150 | ||
| A 1008060150 | LINE | |
| Repalced by: A 1008062449 | ||
| A 1008062449 | CONTROL LINE | |
| RED | ||
| 240 MM | ||
| 876 | A 1008064250 | LINE |
| Repalced by: A 1008062649 | ||
| 876 | A 1008062649 | CONTROL LINE |
| RED | ||
| 320 MM | ||
| A 1008062950 | LINE | |
| Repalced by: A 1008063649 | ||
| A 1008063649 | CONTROL LINE | |
| FROM RIGHT FRONT PANEL PILLAR TOP CONNECTOR TO SOLENOID SWITCH,RED | ||
| 800 MM | ||
| A 1008000284 | LINE | |
| Repalced by: A 1008060250 | ||
| 878 | A 1008060250 | LINE |
| Repalced by: A 1008062449 | ||
| 878 | A 1008062449 | CONTROL LINE |
| BLUE | ||
| 240 MM | ||
| A 1008063050 | LINE | |
| Repalced by: A 1008063749 | ||
| A 1008063749 | CONTROL LINE | |
| BLUE | ||
| 840 MM | ||
| 880 | A 1008062550 | LINE |
| Repalced by: A 1008062349 | ||
| 880 | A 1008062349 | CONTROL LINE |
| RED | ||
| 205 MM | ||
| 882 | A 1008062650 | LINE |
| Repalced by: A 1008062049 | ||
| 882 | A 1008062049 | CONTROL LINE |
| BLUE | ||
| 90 MM | ||
| 884 | A 1008066850 | LINE |
| Repalced by: A 1008063649 | ||
| 884 | A 1008063649 | CONTROL LINE |
| BLUE | ||
| 790 MM | ||
| A 1008066950 | LINE | |
| Repalced by: A 1008063549 | ||
| A 1008063549 | CONTROL LINE | |
| BLUE | ||
| 765 MM | ||
| 886 | A 1008067050 | LINE |
| Repalced by: A 1008063549 | ||
| 886 | A 1008063549 | CONTROL LINE |
| CENTRAL SIDE DOOR, LEFT RED,760 MM | ||
| A 1008067150 | LINE | |
| Repalced by: A 1008063449 | ||
| A 1008063449 | CONTROL LINE | |
| CENTRAL SIDE DOOR,RIGHT RED,700 MM | ||
| 888 | A 1008060350 | LINE |
| Repalced by: A 1008063149 | ||
| 888 | A 1008063149 | CONTROL LINE |
| GREEN/YELLOW/GREEN/YELLOW | ||
| 550 MM | ||
| A 1008062750 | LINE | |
| Repalced by: A 1008063249 | ||
| A 1008063249 | CONTROL LINE | |
| GREEN/YELLOW/GREEN/YELLOW | ||
| 590 MM | ||
| A 1008000484 | LINE | |
| Repalced by: A 1008060551 | ||
| A 1008060450 | LINE | |
| Repalced by: A 1008060551 | ||
| A 1008064350 | LINE | |
| Repalced by: A 1008060551 | ||
| 891 | A 1008060551 | LINE |
| Repalced by: A 1008062449 | ||
| 891 | A 1008062449 | CONTROL LINE |
| FROM PRESS.ACCUMUL.CONNECTOR TO WARNG. SWITCH ON LEFT FRONT WHEELHOUSE; RED | ||
| 893 | A 1008003382 | LINE |
| Repalced by: A 1008002275 | ||
| 893 | A 1008002275 | ELEMENT |
| FROM PRESS.ACCUMUL.CONNECTOR TO WARNG. SWITCH ON LEFT FRONT WHEELHOUSE; RED | ||
| A 1008067250 | LINE | |
| FOLDING TOP OPERATION;RED | ||
| 855 MM | ||
| A 1008067350 | LINE | |
| FOLDING TOP OPERATION;RED | ||
| 920 MM | ||
| A 1008067450 | LINE | |
| FOLDING TOP OPERATION;RED | ||
| 985 MM | ||
| A 1008067550 | LINE | |
| FOLDING TOP OPERATION; GREEN/YELLOW/WHITE/YELLOW | ||
| 765 MM | ||
| A 1008067650 | LINE | |
| FOLDING TOP OPERATION; GREEN/YELLOW/WHITE/YELLOW | ||
| 785 MM | ||
| 895 | A 1008003482 | LINE |
| Repalced by: A 1234206628 | ||
| 895 | A 1234206628 | LINE |
| RED | ||
| 1130 MM | ||
| 897 | A 1008003282 | LINE |
| Repalced by: A 1234206328 | ||
| 897 | A 1234206328 | LINE |
| RED | ||
| 735 MM | ||
| A 1008000282 | LINE | |
| Repalced by: A 1234205728 | ||
| A 1234205728 | LINE | |
| FROM LEFT FRONT WHEELHOUSE CONNECTOR TO FRONT PANEL PILLAR TOP DISTRIBUTOR | ||
| 410 MM | ||
| 899 | A 1008003082 | LINE |
| Repalced by: A 1234205928 | ||
| 899 | A 1234205928 | LINE |
| RED | ||
| 515 MM | ||
| 901 | A 1008000382 | LINE |
| Repalced by: A 1234209228 | ||
| 901 | A 1234209228 | LINE |
| RED | ||
| 145 MM | ||
| 903 | A 1008000482 | LINE |
| Repalced by: A 1234207028 | ||
| 903 | A 1234207028 | LINE |
| RED | ||
| 1475 MM | ||
| 905 | A 1008000582 | LINE |
| Repalced by: A 1234206628 | ||
| 905 | A 1234206628 | LINE |
| LEFT FRONT SIDE MEMBER,RED | ||
| 1130 MM | ||
| A 1008000682 | LINE | |
| Repalced by: A 1234206628 | ||
| A 1234206628 | LINE | |
| RIGHT FRONT SIDE MEMBER;RED | ||
| 1130 MM | ||
| 907 | A 1008000782 | LINE |
| Repalced by: A 1234206528 | ||
| 907 | A 1234206528 | LINE |
| RED | ||
| 1030 MM | ||
| A 1008002882 | LINE | |
| Repalced by: A 1234206728 | ||
| A 1234206728 | LINE | |
| RED | ||
| 1175 MM | ||
| 909 | A 1008000882 | LINE |
| Repalced by: A 1234209628 | ||
| 909 | A 1234209628 | LINE |
| RED | ||
| 1040 MM | ||
| A 1008002982 | LINE | |
| Repalced by: A 1234206428 | ||
| A 1234206428 | LINE | |
| RED | ||
| 865 MM | ||
| 911 | A 1008000982 | LINE |
| Repalced by: A 1234205928 | ||
| 911 | A 1234205928 | LINE |
| BLUE | ||
| 510 MM | ||
| 913 | A 1008001082 | LINE |
| Repalced by: A 1234205928 | ||
| 913 | A 1234205928 | LINE |
| BLUE | ||
| 510 MM | ||
| 915 | A 1008001182 | LINE |
| Repalced by: A 1234209228 | ||
| 915 | A 1234209228 | LINE |
| BLUE | ||
| 150 MM | ||
| 917 | A 1008001282 | LINE |
| Repalced by: A 1234200029 | ||
| 917 | A 1234200029 | LINE |
| BLUE | ||
| 2000 MM | ||
| 919 | A 1008001382 | LINE |
| Repalced by: A 1234206628 | ||
| 919 | A 1234206628 | LINE |
| LEFT FRONT SIDE MEMBER,BLUE | ||
| 1130 MM | ||
| A 1008001482 | LINE | |
| RIGHT FRONT SIDE MEMBER;BLUE | ||
| 1130 MM | ||
| A 1008003582 | LINE | |
| Repalced by: A 1234209828 | ||
| A 1234209828 | LINE | |
| LEFT REAR SIDE MEMBER,BLUE | ||
| 1850 MM | ||
| A 1008003882 | LINE | |
| Repalced by: A 1234209828 | ||
| A 1234209828 | LINE | |
| RIGHT REAR SIDE MEMBER,BLUE | ||
| 1850 MM | ||
| 921 | A 1008001582 | LINE |
| Repalced by: A 1234200029 | ||
| 921 | A 1234200029 | LINE |
| BLUE | ||
| 1950 MM | ||
| 923 | A 1008001682 | LINE |
| Repalced by: A 1234206528 | ||
| 923 | A 1234206528 | LINE |
| BLUE | ||
| 970 MM | ||
| A 1008002682 | LINE | |
| Repalced by: A 1234206628 | ||
| A 1234206628 | LINE | |
| BLUE | ||
| 1110 MM | ||
| 925 | A 1008001782 | LINE |
| Repalced by: A 1234206528 | ||
| 925 | A 1234206528 | LINE |
| BLUE | ||
| 960 MM | ||
| A 1008002782 | LINE | |
| Repalced by: A 1234206328 | ||
| A 1234206328 | LINE | |
| BLUE | ||
| 785 MM | ||
| A 1008001882 | LINE | |
| FOLDING TOP;RED | ||
| 927 | A 1008004082 | LINE |
| Repalced by: A 1234209428 | ||
| 927 | A 1234209428 | LINE |
| RED | ||
| 830 MM | ||
| A 1008002582 | LINE | |
| Repalced by: A 1234206328 | ||
| A 1234206328 | LINE | |
| RED | ||
| 775 MM | ||
| 930 | A 1008003182 | LINE |
| Repalced by: A 1234209428 | ||
| 930 | A 1234209428 | LINE |
| RED | ||
| 820 MM | ||
| 932 | A 1008004682 | LINE |
| Repalced by: A 1234206028 | ||
| 932 | A 1234206028 | LINE |
| RED | ||
| A 1008004782 | LINE | |
| FOLDING TOP OPERATION; GREEN/YELLOW/WHITE/YELLOW | ||
| 810 MM | ||
| A 1008004882 | LINE | |
| FOLDING TOP OPERATION; GREEN/YELLOW/WHITE/YELLOW | ||
| 1290 MM | ||
| N 072571002020 | CLAMP | |
| N 007985004136 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 934 | A 0009881678 | CLIP |
| 936 | A 0009881878 | CLIP |
| 938 | A 0009877170 | RUBBER SECTION |
| 15 MM | ||
| N 040621006200 | INSULATING HOSE | |
| SEAT HEIGHT ADJUSTMENT | ||
| 940 | A 0009870227 | PLASTIC PIPE |
| 700 MM | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| PROTECTIVE HOSE TO FRONT SEAT ADJUSTMENT | ||
| N 000091005138 | SCREW | |
| PROTECTIVE HOSE TO FRONT SEAT ADJUSTMENT | ||
| N 006797005132 | TOOTHED WASHER | |
| PROTECTIVE HOSE TO FRONT SEAT ADJUSTMENT | ||
| N 000934005008 | NUT | |
| PROTECTIVE HOSE TO FRONT SEAT ADJUSTMENT | ||
| 942 | A 0009971681 | GROMMET |
| Repalced by: A 3179970281 | ||
| 942 | A 3179970281 | GROMMET |
| 944 | A 1109971181 | GROMMET |
| A 1869970681 | GROMMET | |
| ON REAR DOOR,BOTTOM | ||
| 946 | A 1008050025 | CLIP |
| A 0009877170 | RUBBER SECTION | |
| LINES TO REAR WHEELHOUSE, INSIDE,15 MM | ||
| 948 | A 0009903533 | SCREW |
| LINES TO REAR WHEELHOUSE,INSIDE | ||
| N 072573003006 | CLAMP | |
| LINES TO REAR WHEELHOUSE,INSIDE | ||
| N 000934004006 | NUT | |
| LINES TO REAR WHEELHOUSE,INSIDE | ||
| N 006797004132 | TOOTHED WASHER | |
| LINES TO REAR WHEELHOUSE,INSIDE | ||
| A 0009877170 | RUBBER SECTION | |
| LINES TO REAR BODY PANEL, BOTTOM,15 MM | ||
| A 0009903533 | SCREW | |
| LINES TO REAR BODY PANEL,BOTTOM | ||
| N 072573003006 | CLAMP | |
| LINES TO REAR BODY PANEL,BOTTOM | ||
| N 006797004132 | TOOTHED WASHER | |
| LINES TO REAR BODY PANEL,BOTTOM | ||
| N 000934004006 | NUT | |
| LINES TO REAR BODY PANEL,BOTTOM | ||
| N 071434004321 | CLAMP | |
| Repalced by: A 1009950122 | ||
| 951 | A 1009950122 | CLAMP |
| LINES TO REAR DOOR INTERIOR PLATE | ||
| N 007985004136 | SCREW | |
| LINES TO REAR DOOR INTERIOR PLATE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| LINES TO REAR DOOR INTERIOR PLATE | ||
| N 000934004006 | NUT | |
| LINES TO REAR DOOR INTERIOR PLATE | ||
| A 0009877170 | RUBBER SECTION | |
| LINES TO REAR DOOR INTERIOR PLATE,15 MM | ||
| N 072571001000 | CLAMP | |
| N 007981004318 | SHEET METAL SCREW | |
| 953 | A 0009903333 | SCREW |
| LINES TO LEFT REAR WHEELHOUSE | ||
| N 006797004132 | TOOTHED WASHER | |
| LINES TO LEFT REAR WHEELHOUSE | ||
| N 000934004006 | NUT | |
| LINES TO LEFT REAR WHEELHOUSE | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| LINES TO LEFT REAR WHEELHOUSE | ||
| N 072571002020 | CLAMP | |
| 955 | A 0009881678 | CLIP |
| N 072571002015 | CLAMP | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 072573003008 | CLAMP | |
| 957 | A 0009877270 | RUBBER SECTION |
| 15 MM | ||
| N 072573003006 | CLAMP | |
| 959 | A 0009871033 | RUBBER SECTION |
| Repalced by: A 4047520198 | ||
| 959 | A 4047520198 | SEAL |
| 35 MM | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1009950042 | ||
| 961 | A 1009950042 | CLAMP |
| Repalced by: A 1119950042 | ||
| 961 | A 1119950042 | CLAMP |
| Repalced by: A 1409950222 | ||
| 961 | A 1409950222 | CLAMP |
| 963 | A 1114760081 | RUBBER PAD |
| N 007981004322 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| 965 | A 1009950022 | CLAMP |
| A 0009871033 | RUBBER SECTION | |
| Repalced by: A 4047520198 | ||
| A 0009877170 | RUBBER SECTION | |
| 15 MM | ||
| A 1369950601 | CLAMP | |
| Repalced by: A 0009881878 | ||
| N 000933004042 | SCREW | |
| Repalced by: A 0009881878 | ||
| N 000934004006 | NUT | |
| Repalced by: A 0009881878 | ||
| A 0009881878 | CLIP | |
| 966 | A 0009972381 | GROMMET |
| 968 | A 0009970381 | GROMMET |
| 970 | A 0009970781 | GROMMET |
| 971 | A 0019974190 | LOOM TIE |
| 973 | A 1009870043 | RUBBER SLEEVE |
| N 040621020207 | INSULATING HOSE | |
| 180 MM | ||
| 974 | A 1879950037 | CLAMP |
| 975 | A 0009870332 | HOSE |
| 20 MM | ||
| N 007985006128 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| A 0009881878 | CLIP | |
| 977 | A 0029975982 | HOSE |
| 38 MM | ||
| A 0009972181 | GROMMET | |
| Repalced by: A 0009972081 | ||
| A 0009972081 | GROMMET | |
| A 0009972081 | GROMMET | |
| A 1119971481 | GROMMET | |
| 979 | A 0009972281 | GROMMET |
| A 1009970381 | GROMMET | |
| FIRE WALL,LEFT,IN ENGINE COMPARTMENT | ||
| 981 | A 0009972981 | GROMMET |
| 983 | A 1009970881 | GROMMET |
| 985 | A 0059977682 | HOSE |
| Repalced by: A 0004295135 | ||
| 985 | A 0004295135 | BRAKE HOSE |
| TOP 200 MM | ||
| 987 | A 0059977782 | HOSE |
| BOTTOM | ||
| 250 MM | ||
| N 900269008100 | CLAMP | |
| N 900269015100 | CLAMP | |
| A 0019876825 | PLASTIC SECTION | |
| Repalced by: A 0019877625 | ||
| 990 | A 0019877625 | PLASTIC SECTION |
| 200 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
