Transporto priemonė: 600; VIN numerio dalis: 100012
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

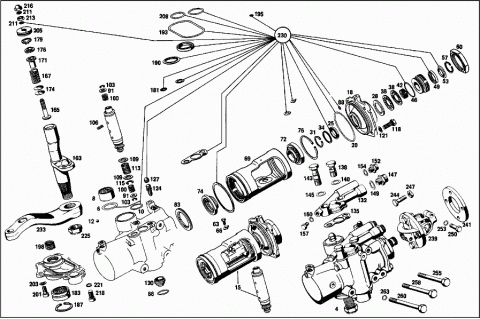

| 004 | A 1004602001 | STEERING BOX ASSEMBLY |
| A 1004602101 | STEERING BOX ASSEMBLY | |
| 006 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 006 | A 0139973748 | SEAL RING |
| 008 | A 0019812710 | NEEDLE BEARING |
| 010 | A 0019972545 | SEAL RING |
| 012 | A 1209810085 | BALL |
| 015 | A 1004603085 | PISTON |
| A 1004603185 | PISTON | |
| 018 | A 1004601914 | STEERING BOX COVER |
| Repalced by: A 1004602014 | ||
| 018 | A 1004602014 | STEERING BOX COVER |
| A 1004602014 | STEERING BOX COVER | |
| 020 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 020 | A 0149976148 | SEAL RING |
| 025 | A 1124600061 | GASKET |
| 028 | A 1124620162 | THRUST WASHER |
| 031 | A 0009942641 | LOCK |
| 034 | A 1124610162 | THRUST WASHER |
| 038 | A 0009810418 | ROLLER BEARING |
| A 0009810818 | ROLLER BEARING | |
| 042 | A 0009816310 | NEEDLE BEARING |
| 046 | A 0009979745 | SEAL RING |
| 049 | A 0059976046 | SEAL RING |
| 053 | A 0019974040 | SEAL RING |
| 057 | A 0009942641 | LOCK |
| 060 | A 1209900551 | NUT |
| 063 | A 1209900520 | SCREW |
| 066 | A 1129940005 | LOCK |
| 069 | A 1004602685 | PISTON |
| A 1004602785 | PISTON | |
| 072 | A 0009813927 | ANGULAR CONTACT BEARING |
| 074 | A 0009814027 | ANGULAR CONTACT BEARING |
| A 0009814627 | ANGULAR CONTACT BEARING | |
| 076 | A 0019945141 | LOCK |
| 083 | A 1124660134 | SCREW COLLAR |
| A 1124661905 | COVER | |
| A 1004660060 | SEAL RING | |
| Repalced by: A 1004660260 | ||
| A 1004660260 | SEAL RING | |
| 088 | A 0049974445 | SEAL RING |
| 091 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.10 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.30 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.70 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.00 MM | ||
| 100 | A 1009937901 | SPRING |
| 103 | A 0009943841 | LOCK |
| 106 | A 1129910141 | CLAMPING PIN |
| 109 | A 1124660275 | WASHER |
| 113 | A 1009934301 | SPRING |
| 115 | A 0009945441 | LOCK |
| 118 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 118 | N 304017010019 | SCREW |
| 121 | N 000127010200 | LOCK WASHER |
| 124 | A 0004200855 | BLEEDER VALVE |
| A 1004600072 | BREATHER | |
| 127 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 127 | A 0004210887 | PROTECTIVE CAP |
| 130 | A 1124661105 | COVER |
| 132 | A 1004600914 | STEERING BOX COVER |
| A 1004601014 | STEERING BOX COVER | |
| 135 | A 1124660380 | GASKET |
| 138 | A 1009971972 | FITTING |
| 140 | N 007603016401 | SEAL RING |
| 143 | A 1009971872 | FITTING |
| A 0099977245 | SEAL RING | |
| 145 | N 007603018100 | SEAL RING |
| 147 | N 915013010001 | SCREW FITTING |
| 149 | N 007603016401 | SEAL RING |
| 152 | N 915013006002 | SCREW FITTING |
| 154 | N 007603012102 | SEAL RING |
| 157 | A 1129970030 | SCREW PLUG |
| 160 | N 007603008109 | SEAL RING |
| 163 | A 1004600111 | STEERG. WORM SECTOR SHAFT |
| 165 | A 1004620071 | SCREW |
| 167 | A 1009933301 | SPRING |
| A 1004620085 | THRUST PIECE | |
| Repalced by: A 1004620185 | ||
| 171 | A 1004620185 | THRUST PIECE |
| 174 | A 0009933126 | DISC SPRING |
| 176 | A 1004610062 | THRUST WASHER |
| 179 | A 0009949741 | LOCK |
| 181 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 181 | A 0139973748 | SEAL RING |
| 183 | A 0019812810 | NEEDLE BEARING |
| A 0039978946 | SEAL RING | |
| Repalced by: A 0059976146 | ||
| A 0029970240 | SEAL RING | |
| Repalced by: A 0059976146 | ||
| A 1004600061 | GASKET | |
| Repalced by: A 0059976146 | ||
| A 1004600161 | GASKET | |
| Repalced by: A 0059976146 | ||
| A 0059976146 | SEAL RING | |
| 187 | A 0009949841 | LOCK |
| 190 | A 0029970240 | SEAL RING |
| 193 | A 0029974745 | SEAL RING |
| 195 | A 0049974445 | SEAL RING |
| 198 | A 1129939701 | SPRING |
| 201 | N 000912008096 | SCREW |
| Repalced by: N 000912008202 | ||
| 201 | N 000912008202 | SCREW |
| 203 | N 912004008102 | LOCK WASHER |
| 205 | A 1004660072 | NUT |
| 208 | A 0049974645 | SEAL RING |
| 211 | N 007603010100 | SEAL RING |
| 213 | A 1089900051 | NUT |
| 216 | N 001587010001 | CAP NUT |
| 218 | N 000912010002 | SCREW |
| 221 | N 007603010100 | SEAL RING |
| A 0059974445 | SEAL RING | |
| N 007603008109 | SEAL RING | |
| N 007603010404 | SEAL RING | |
| N 007603012110 | SEAL RING | |
| 225 | N 000937024002 | NUT |
| 230 | A 1005860046 | REPAIR KIT |
| 233 | A 1004630701 | PITMAN ARM |
| A 1004630801 | PITMAN ARM | |
| N 000094005035 | COTTER PIN | |
| 239 | A 1004602257 | UNIVERSAL JOINT |
| BOTTOM | ||
| 241 | A 1004620246 | FLEXIBLE JOINT DISC |
| 244 | N 000933008195 | SCREW |
| Repalced by: N 000933008302 | ||
| 244 | N 000933008302 | SCREW |
| 247 | N 000979008000 | NUT |
| N 000094002077 | COTTER PIN | |
| 250 | A 1009900312 | SCREW |
| 253 | N 912004008102 | LOCK WASHER |
| 255 | N 000931010238 | SCREW |
| 258 | N 000931010154 | SCREW |
| 260 | N 000931010244 | SCREW |
| Repalced by: N 304014010013 | ||
| 260 | N 304014010013 | SCREW |
| 263 | N 912004010102 | LOCK WASHER |
| A 1004603416 | STEER. COLUMN JACKET TUBE | |
| 270 | A 1004603816 | STEER. COLUMN JACKET TUBE |
| 273 | A 1004604416 | STEER. COLUMN JACKET TUBE |
| A 1004603516 | STEER. COLUMN JACKET TUBE | |
| A 1004603916 | STEER. COLUMN JACKET TUBE | |
| A 1004604516 | STEER. COLUMN JACKET TUBE | |
| N 000931006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 276 | A 1003230328 | SWITCH |
| A 1003230928 | VALVE | |
| A 1003230428 | SWITCH | |
| A 1003231028 | VALVE | |
| 279 | A 1008001177 | CONNECTOR |
| 282 | N 000931005002 | SCREW |
| 285 | N 000137005100 | SPRING WASHER |
| 288 | N 000125005303 | WASHER |
| 290 | N 000912004006 | SCREW |
| 293 | N 000137004202 | SPRING WASHER |
| 296 | A 1008062749 | CONTROL LINE |
| GREEN/WHITE | ||
| A 1008062649 | CONTROL LINE | |
| GREEN/WHITE | ||
| A 1008062749 | CONTROL LINE | |
| GREEN/WHITE | ||
| A 1008062649 | CONTROL LINE | |
| GREEN/WHITE | ||
| 298 | A 1008062749 | CONTROL LINE |
| RED | ||
| A 1008062649 | CONTROL LINE | |
| RED | ||
| A 1008062749 | CONTROL LINE | |
| RED | ||
| A 1008062649 | CONTROL LINE | |
| RED | ||
| 301 | A 1008062749 | CONTROL LINE |
| BLUE | ||
| A 1008062649 | CONTROL LINE | |
| BLUE | ||
| A 1008062749 | CONTROL LINE | |
| BLUE | ||
| A 1008062649 | CONTROL LINE | |
| BLUE | ||
| 304 | A 1009971982 | HOSE |
| Repalced by: A 0069976882 | ||
| 304 | A 0069976882 | HOSE |
| A 1003230184 | SHIM | |
| 307 | A 1008050025 | CLIP |
| 310 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 310 | A 0189816110 | NEEDLE BEARING |

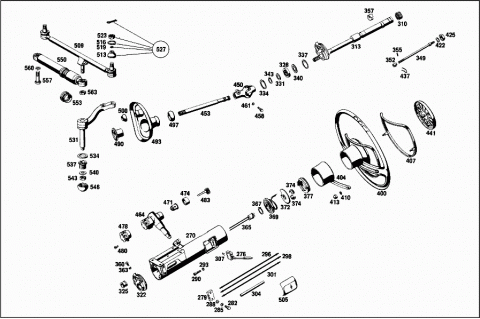

| 313 | A 1004602009 | STEERING SHAFT |
| TOP | ||

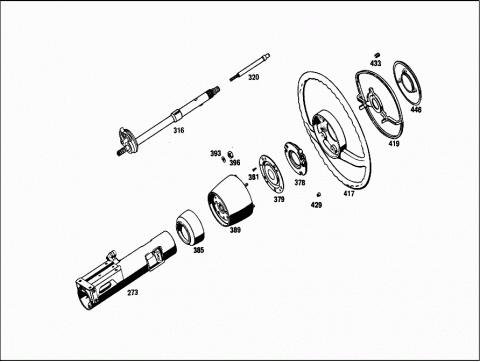

| 316 | A 1004603509 | STEERING SHAFT |
| TOP | ||
| A 1004602109 | STEERING SHAFT | |
| TOP | ||
| A 1004603609 | STEERING SHAFT | |
| TOP | ||
| 320 | A 1004600476 | PIN |
| 322 | A 1002600995 | BEARING |
| A 1002601095 | BEARING | |
| 325 | A 1002680450 | BUSHING |
| 328 | N 000625126004 | GROOVED BALL BEARING |
| 331 | N 000988020014 | FITTED WASHER |
| 334 | N 000472042001 | LOCK RING |
| 337 | N 900055042210 | LOCK RING |
| 340 | N 000988030001 | FITTED WASHER |
| 343 | N 900055020201 | LOCK RING |
| 349 | A 1004600276 | PIN |
| 352 | A 1004600086 | CLAMPING NUT |
| 355 | N 001481003001 | CLAMPING SLEEVE |
| 357 | A 1004600258 | CLAMP |
| 360 | N 000912006014 | SCREW |
| 363 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 363 | N 000137006204 | SPRING WASHER |
| 365 | A 0004640343 | CONTACT PIECE |
| 367 | N 000471028000 | LOCK RING |
| 369 | A 1004640117 | CONTACT PLATE |
| A 1004640217 | CONTACT PLATE | |
| 372 | A 1004640134 | BRACKET |
| 374 | A 1004620017 | CONICAL SLEEVE |
| 377 | A 1004640128 | CONTACT RING |
| 378 | A 0004640928 | CONTACT RING |
| 379 | A 1154640134 | BRACKET |
| 381 | N 007987003122 | SCREW |
| 385 | A 1004600095 | COVERING |
| 389 | A 1004600297 | PROTECTIVE SLEEVE |
| 393 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 393 | N 000137008212 | SPRING WASHER |
| 396 | N 000934008013 | NUT |
| 400 | A 1004600803 | STEERING WHEEL |
| 404 | A 1004640536 | HUB |
| 407 | A 1004640115 | SIGNAL RING |
| 410 | A 1114640073 | LOCK |
| 413 | A 1114640172 | NUT |
| 417 | A 1004640901 | STEERING WHEEL |
| 419 | A 1154640415 | SIGNAL RING |
| N 000137018202 | SPRING WASHER | |
| 422 | N 000137022201 | SPRING WASHER |
| N 000936018000 | NUT | |
| 425 | N 000936022001 | NUT |
| 429 | A 1154640024 | INSULATING PART |
| 433 | A 1154640035 | GUIDE PIN |
| 437 | A 1009930125 | SPRING |
| A 1009930425 | SPRING | |
| 441 | A 1004600742 | COVER PLATE |
| 446 | A 1004601142 | COVER PLATE |
| 450 | A 1004602057 | UNIVERSAL JOINT |
| A 1004601109 | STEERING SHAFT | |
| Repalced by: A 1004603109 | ||
| A 1004601109 | STEERING SHAFT | |
| Repalced by: A 1004603109 | ||
| 453 | A 1004603109 | STEERING SHAFT |
| BOTTOM | ||
| 458 | A 1009900312 | SCREW |
| 461 | N 912004008102 | LOCK WASHER |
| 464 | A 0004623330 | STEERING LOCK |
| Repalced by: A 0004622830 | ||
| 464 | A 0004622830 | STEERING LOCK |
| A 0004624130 | STEERING LOCK | |
| A 0004627030 | STEERING LOCK | |
| A 0004623430 | STEERING LOCK | |
| A 0004624230 | STEERING LOCK | |
| A 0004627130 | STEERING LOCK | |
| A 0004623830 | STEERING LOCK | |
| Repalced by: A 0004627530 | ||
| A 0004623830 | STEERING LOCK | |
| 471 | A 0004627530 | TUMBLER |
| 471 | A 1004600604 | TUMBLER |
| WITHOUT LOCK UNDEFINED | ||
| A 0004620423 | COVER | |
| A 0004620423 | COVER | |
| 474 | A 0004621123 | COVER |
| 478 | A 0004620693 | IGNITION SWITCH |
| A 1164620093 | IGNITION SWITCH | |
| 480 | N 000084004139 | SCREW |
| 483 | A 0007661206 | KEY |
| MASTER KEY | ||
| A 0007661306 | KEY | |
| A 1007600206 | KEY | |
| N 009046020000 | SPLIT RING | |
| N 009046020000 | SPLIT RING | |
| N 007985004123 | SCREW | |
| N 000127004200 | LOCK WASHER | |
| A 1004620396 | BOOT | |
| Repalced by: A 1004621296 | ||
| 490 | A 1004621296 | BOOT |
| A 1004600096 | BOOT | |
| Repalced by: A 1004600396 | ||
| 493 | A 1004600396 | BOOT |
| A 1004600296 | BOOT | |
| Repalced by: A 1004600496 | ||
| A 1004600496 | BOOT | |
| 497 | A 1004620696 | BOOT |
| 500 | A 1004620796 | BOOT |
| N 000931007019 | SCREW | |
| N 000931007014 | SCREW | |
| N 000931007015 | SCREW | |
| N 000931007016 | SCREW | |
| N 912004007100 | LOCK WASHER | |
| N 009021007200 | WASHER | |
| 505 | A 1004621096 | BOOT |
| 509 | A 1004600805 | DRAG LINK |
| 513 | A 0003380597 | BOOT |
| Repalced by: A 1005860033 | ||
| 513 | A 1005860033 | REPAIR KIT |
| 516 | A 0003380863 | CLAMPING RING |
| TOP | ||
| 519 | A 0003380963 | CLAMPING RING |
| BOTTOM | ||
| 523 | A 1839900055 | NUT |
| N 000094003219 | COTTER PIN | |
| 527 | A 1005860033 | REPAIR KIT |
| 531 | A 1004601019 | INTERMEDIATE LEVER |
| A 1004601119 | INTERMEDIATE LEVER | |
| 534 | A 1003330080 | SEAL RING |
| 537 | A 1004630650 | BUSHING |
| 540 | A 1009900240 | WASHER |
| 543 | N 913002012002 | NUT |
| 546 | A 1004630856 | DUST CAP |
| N 916026036000 | CLAMP | |
| Repalced by: A 0069970590 | ||
| A 0069970590 | LOOM TIE | |
| 550 | A 0004634632 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 553 | A 0004630196 | BOOT |
| 557 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 557 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 557 | N 308676012011 | SCREW |
| 560 | N 912004012100 | LOCK WASHER |
| 563 | N 913002012002 | NUT |

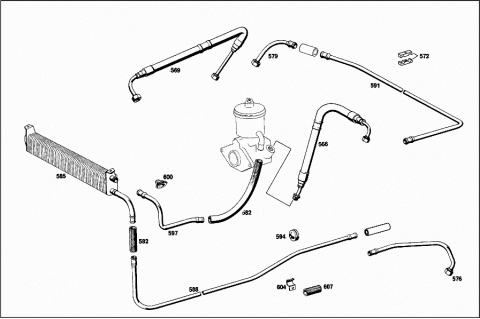

| A 0059976582 | HOSE | |
| Repalced by: A 0069976982 | ||
| 566 | A 0069976982 | HOSE |
| FROM HYDRAULIC PUMP TO STEERING | ||
| 569 | A 0059978782 | HOSE |
| FROM HYDRAULIC PUMP TO STEERING | ||
| 572 | A 1004660040 | BRACKET |
| N 000933005035 | SCREW | |
| N 912004005103 | LOCK WASHER | |
| N 000934005008 | NUT | |
| A 1004600424 | LINE | |
| Repalced by: A 1004600924 | ||
| 576 | A 1004600924 | LINE |
| RETURN LINE | ||
| A 1004600524 | LINE | |
| Repalced by: A 1004601024 | ||
| 579 | A 1004601024 | LINE |
| RETURN LINE | ||
| 582 | A 0069970982 | HOSE |
| N 912004006102 | LOCK WASHER | |
| N 900263009000 | STRAP | |
| 210 MM | ||
| 585 | A 1004660007 | OIL COOLER |
| N 000933006102 | SCREW | |
| N 000433006405 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| A 1004660265 | LINE | |
| FROM STEERING TO COOLING PIPE | ||
| 588 | A 1004660665 | LINE |
| FROM STEERING TO COOLING PIPE | ||
| A 1004660465 | LINE | |
| Repalced by: A 1004601424 | ||
| A 1004601424 | LINE | |
| FROM STEERING TO COOLING PIPE | ||
| A 1004600724 | LINE | |
| Repalced by: A 1004600924 | ||
| A 1004600924 | LINE | |
| FROM STEERING TO COOLING PIPE | ||
| 591 | A 1004601424 | LINE |
| FROM STEERING TO COOLING PIPE | ||
| 594 | A 1869970481 | GROMMET |
| Repalced by: A 1109970481 | ||
| 594 | A 1109970481 | GROMMET |
| 597 | A 1004601324 | LINE |
| FROM OIL COOLER TO OIL TANK | ||
| 600 | A 0079975881 | GROMMET |
| 604 | A 1129950120 | CLAMP |
| 607 | A 0009978482 | HOSE |
| N 007976004205 | SHEET METAL SCREW | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
