Transporto priemonė: 600; VIN numerio dalis: 100012

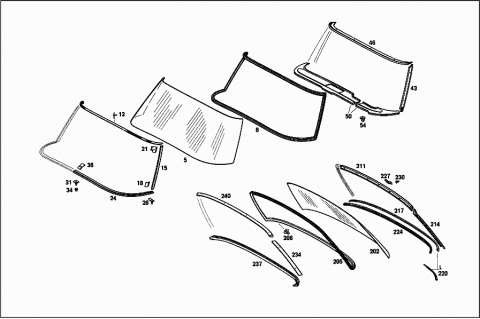

Grupė: 67 WINDOWS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1006710110 | WINDSHIELD | |
| Repalced by: A 1006710410 | ||
| 005 | A 1006710410 | WINDSHIELD |
| A 1006710339 | LOCK | |
| Repalced by: A 1006700439 | ||
| 008 | A 1006700439 | SEALING FRAME |
| 012 | A 1006710030 | OUTER MOULDING |
| 015 | A 1006710130 | OUTER MOULDING |
| LEFT | ||
| A 1006710230 | OUTER MOULDING | |
| RIGHT | ||
| 018 | A 1116710136 | COVERING |
| Repalced by: A 1116780137 | ||
| 018 | A 1116780137 | JOINT COVER |
| LEFT | ||
| A 1116710236 | COVERING | |
| Repalced by: A 1116780237 | ||
| A 1116780237 | JOINT COVER | |
| RIGHT | ||
| 021 | A 1006710436 | COVERING |
| A 1006700916 | OUTER MOULDING | |
| Repalced by: A 1006700516 | ||
| 024 | A 1006700516 | OUTER MOULDING |
| LEFT | ||
| A 1006701016 | OUTER MOULDING | |
| Repalced by: A 1006700616 | ||
| A 1006700616 | OUTER MOULDING | |
| RIGHT | ||
| 028 | A 1007200094 | SCREW |
| 031 | A 0009880981 | FASTENER BUTTON |
| 034 | A 0009881081 | FASTENER BUTTON |
| N 000137004202 | SPRING WASHER | |
| N 000934004006 | NUT | |
| A 1006710536 | COVERING | |
| Repalced by: A 1006710336 | ||
| 038 | A 1006710336 | COVERING |
| 043 | A 1006700151 | INNER MOULDING |
| LEFT | ||
| A 1006700251 | INNER MOULDING | |
| RIGHT | ||
| 046 | A 1006700351 | INNER MOULDING |
| N 007983003210 | SHEET METAL SCREW | |
| A 0009851062 | WASHER | |
| 050 | A 1006700551 | INNER MOULDING |
| A 1006706351 | INNER MOULDING | |
| A 1006701851 | INNER MOULDING | |
| A 0009833810 | STRIP | |
| Repalced by: A 0009830892 | ||
| A 0009830892 | FELT | |
| Repalced by: A 0009833092 | ||
| A 0009833092 | FELT | |
| 430 MM | ||
| 054 | A 0009900650 | NUT |
| Repalced by: A 0009900550 | ||
| 054 | A 0009900550 | NUT |
| 057 | A 1006730310 | GLASS PANE |
| LEFT | ||
| A 1006730410 | GLASS PANE | |
| RIGHT | ||
| 060 | A 0009876657 | RUBBER MOULDING |
| 610 MM | ||
| 063 | A 1006700146 | WINDOW REGULATOR RAIL |
| LEFT | ||
| A 1006700246 | WINDOW REGULATOR RAIL | |
| RIGHT | ||
| 067 | A 1006700030 | WINDOW RUN |
| 070 | A 0009851630 | SEALING SECTION |
| 2450 MM | ||
| 073 | A 1006730047 | ADAPTER |
| N 007976004213 | SHEET METAL SCREW | |
| 076 | A 0029882378 | CLIP |
| A 1087250098 | SEAL | |
| Repalced by: A 1157251298 | ||
| 080 | A 1157251298 | SEAL |
| Repalced by: A 1167250198 | ||
| 080 | A 1167250198 | SEAL |
| WINDOW RUN | ||
| 084 | A 1007200146 | WINDOW REGULATOR |
| LEFT | ||
| A 1007200246 | WINDOW REGULATOR | |
| RIGHT | ||
| 087 | A 1007250015 | PIN |
| 090 | A 1009910440 | SPACER TUBE |
| N 912002010001 | LOCK | |
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| 094 | A 1007250115 | PIN |
| 097 | N 912002008001 | LOCK |
| Repalced by: N 912002008003 | ||
| 097 | N 912002008003 | LOCK |
| 100 | N 900055008002 | SPRING WASHER |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 1007250147 | ADAPTER | |
| 2 MM | ||
| A 1007250247 | ADAPTER | |
| 1 MM | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1209840137 | SLIDE | |
| Repalced by: A 1155860072 | ||
| A 0009842456 | WASHER | |
| Repalced by: A 1155860072 | ||
| A 0009900548 | WASHER | |
| Repalced by: A 1155860072 | ||
| A 0009940360 | LOCK | |
| Repalced by: A 1155860072 | ||
| 106 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 106 | A 1237200114 | REPAIR KIT |
| 110 | A 1006731930 | FRAME |
| LEFT | ||
| A 1006732030 | FRAME | |
| RIGHT | ||
| 113 | A 1006730024 | SEAL |
| N 007981003243 | SHEET METAL SCREW | |
| 116 | A 0009850330 | SEALING SECTION |
| Repalced by: A 1157250965 | ||
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| A 1157250965 | SEALING RAIL | |
| SIDE WINDOW | ||
| 2200 MM | ||
| 123 | A 0019881778 | CLIP |
| 126 | A 0019882378 | CLIP |
| 129 | A 1006730135 | FRAME |
| LEFT | ||
| A 1006730235 | FRAME | |
| RIGHT | ||
| N 007983002200 | SHEET METAL SCREW | |
| 132 | A 1006705951 | INNER MOULDING |
| LEFT | ||
| A 1006706051 | INNER MOULDING | |
| RIGHT | ||
| 136 | A 1006704151 | INNER MOULDING |
| LEFT | ||
| A 1006704251 | INNER MOULDING | |
| RIGHT | ||
| 139 | A 1006704351 | INNER MOULDING |
| LEFT | ||
| A 1006704451 | INNER MOULDING | |
| RIGHT | ||
| 142 | A 1006704551 | INNER MOULDING |
| LEFT | ||
| A 1006704651 | INNER MOULDING | |
| RIGHT | ||
| N 007983002211 | SHEET METAL SCREW | |
| A 0009850962 | WASHER | |
| 147 | A 1006740910 | GLASS PANE |
| LEFT | ||
| A 1006741010 | GLASS PANE | |
| RIGHT | ||
| 150 | A 1006740130 | FRAME |
| LEFT | ||
| A 1006740230 | FRAME | |
| RIGHT | ||
| 153 | A 1006740122 | GARNISH MOULDING |
| LEFT | ||
| A 1006740222 | GARNISH MOULDING | |
| RIGHT | ||
| N 007981003246 | SHEET METAL SCREW | |
| FRAME TO SIDE PANEL | ||
| N 007983002200 | SHEET METAL SCREW | |
| GARNISH MOULDING TO WINDOW FRAME | ||
| N 007983002203 | SHEET METAL SCREW | |
| GARNISH MOULDING TO REAR PILLAR | ||
| 156 | A 1006740720 | FRAME |
| LEFT OUTSIDE | ||
| A 1006740820 | FRAME | |
| RIGHT OUTSIDE | ||
| 159 | A 1006740920 | FRAME |
| LEFT INSIDE | ||
| A 1006741020 | FRAME | |
| RIGHT INSIDE | ||
| 163 | A 1006740783 | GARNISH MOULDING |
| LEFT | ||
| A 1006740883 | GARNISH MOULDING | |
| RIGHT | ||
| 167 | A 0009882681 | FASTENER BUTTON |
| 170 | A 0009881581 | FASTENER BUTTON |
| Repalced by: A 0019882081 | ||
| 170 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 170 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 170 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 170 | A 0019887681 | FASTENER BUTTON |
| 173 | A 1006701951 | INNER MOULDING |
| LEFT | ||
| A 1006702051 | INNER MOULDING | |
| RIGHT | ||
| 177 | A 0019882878 | CLIP |
| Repalced by: A 0029884578 | ||
| 177 | A 0029884578 | CLIP |
| 179 | A 1006703351 | INNER MOULDING |
| LEFT | ||
| A 1006703451 | INNER MOULDING | |
| RIGHT | ||
| 183 | A 1006703551 | INNER MOULDING |
| LEFT | ||
| A 1006703651 | INNER MOULDING | |
| RIGHT | ||
| N 007983003207 | SHEET METAL SCREW | |
| A 0009851262 | WASHER | |
| N 007997003508 | WOOD SCREW | |
| 186 | A 1006703151 | INNER MOULDING |
| LEFT | ||
| A 1006703251 | INNER MOULDING | |
| RIGHT | ||
| 190 | A 1006703751 | INNER MOULDING |
| LEFT | ||
| A 1006703851 | INNER MOULDING | |
| RIGHT | ||
| N 007983003230 | SHEET METAL SCREW | |
| 194 | A 1006730047 | ADAPTER |
| 2 MM | ||
| 197 | A 1117255147 | ADAPTER |
| 0.5 MM | ||
| A 1117255247 | ADAPTER | |
| 1 MM | ||
| A 1006780410 | GLASS PANE | |
| Repalced by: A 1006780810 | ||
| A 1006780610 | GLASS PANE | |
| Repalced by: A 1006780810 | ||
| 202 | A 1006780810 | GLASS PANE |
| 205 | A 1006780420 | SEALING FRAME |
| A 0009976581 | GROMMET | |
| Repalced by: A 1089880027 | ||
| A 0009880227 | GROMMET | |
| Repalced by: A 1089880027 | ||
| 208 | A 1089880027 | GROMMET |
| A 1006780083 | GARNISH MOULDING | |
| Repalced by: A 1006780483 | ||
| 211 | A 1006780483 | GARNISH MOULDING |
| A 1006780183 | GARNISH MOULDING | |
| Repalced by: A 1006780583 | ||
| 214 | A 1006780583 | GARNISH MOULDING |
| LEFT | ||
| A 1006780283 | GARNISH MOULDING | |
| Repalced by: A 1006780683 | ||
| A 1006780683 | GARNISH MOULDING | |
| RIGHT | ||
| A 1006780383 | GARNISH MOULDING | |
| Repalced by: A 1006780783 | ||
| 217 | A 1006780783 | GARNISH MOULDING |
| 220 | A 0009877370 | RUBBER SECTION |
| 1700 MM | ||
| 224 | A 1006700026 | RAIL |
| 227 | A 0019885478 | CLIP |
| A 0009903097 | RIVET | |
| Repalced by: N 910001003100 | ||
| 230 | N 910001003100 | RIVET |
| 234 | A 1006700381 | INNER MOULDING |
| LEFT | ||
| A 1006700481 | INNER MOULDING | |
| RIGHT | ||
| 237 | A 1006700681 | INNER MOULDING |
| 240 | A 1006700181 | INNER MOULDING |
| N 007983003210 | SHEET METAL SCREW | |
| A 0009851062 | WASHER | |
| N 000096004037 | WOOD SCREW | |
