Transporto priemonė: 600; VIN numerio dalis: 100015
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

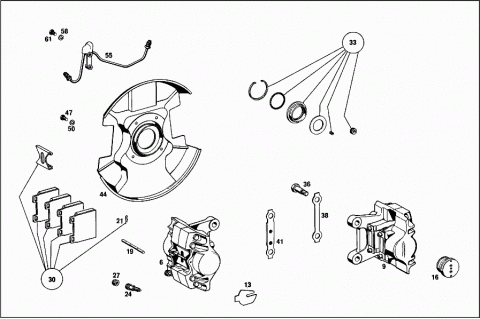

| A 0004213898 | CALIPER | |
| Repalced by: A 0004217798 | ||
| 006 | A 0004217798 | CALIPER |
| LEFT FRONT | ||
| A 0004213798 | CALIPER | |
| Repalced by: A 0004217698 | ||
| 009 | A 0004217698 | CALIPER |
| Repalced by: A 0084214998 | ||
| 009 | A 0084214998 | CALIPER |
| LEFT REAR | ||
| A 0004213798 | CALIPER | |
| Repalced by: A 0004217898 | ||
| A 0004217898 | CALIPER | |
| Repalced by: A 0084215198 | ||
| A 0084215198 | CALIPER | |
| RIGHT FRONT | ||
| A 0004213898 | CALIPER | |
| Repalced by: A 0004217998 | ||
| A 0004217998 | CALIPER | |
| Repalced by: A 0084215298 | ||
| A 0084215298 | CALIPER | |
| RIGHT REAR | ||
| 013 | A 1004210096 | SHIM |
| A 0004213783 | PISTON | |
| 016 | A 0004213783 | PISTON |
| 019 | A 0009910460 | DOWEL PIN |
| 021 | A 0004210573 | LOCK |
| 024 | A 0004200055 | BLEEDER VALVE |
| 027 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 027 | A 0004210887 | PROTECTIVE CAP |
| 030 | A 0004207820 | BRAKE PAD |
| Repalced by: A 0024201120 | ||
| 030 | A 0024201120 | BRAKE PAD |
| PARTS KIT | ||
| A 0005869742 | REPAIR KIT | |
| CALIPER | ||
| 033 | A 0005861643 | REPAIR KIT |
| CALIPER | ||
| 036 | A 1004210271 | SCREW |
| 038 | A 1009940132 | LOCK |
| 041 | A 1004200289 | SHACKLE |
| 044 | A 1004200844 | PROTECTIVE PLATE |
| FRONT | ||
| 047 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 047 | N 304017006034 | SCREW |
| 050 | N 912004006102 | LOCK WASHER |
| 055 | A 1004202428 | LINE |
| LEFT | ||
| A 1004202528 | LINE | |
| RIGHT | ||
| 058 | N 912004006102 | LOCK WASHER |
| 061 | N 000933006127 | SCREW |

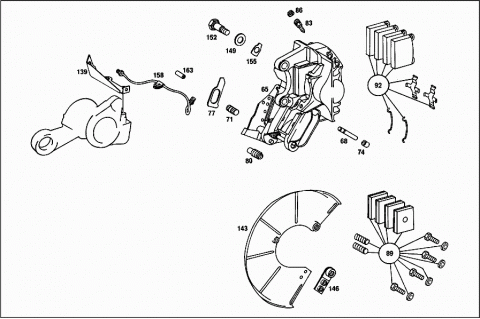

| 065 | A 0004201783 | CALIPER |
| Repalced by: A 0014201683 | ||
| 065 | A 0014201683 | CALIPER |
| LEFT | ||
| A 0004201883 | CALIPER | |
| Repalced by: A 0014201783 | ||
| A 0014201783 | CALIPER | |
| RIGHT | ||
| 068 | A 0004231171 | SCREW |
| 071 | A 0004230053 | SPACER TUBE |
| 074 | A 0004230450 | BUSHING |
| 077 | A 0004230080 | GASKET |
| 080 | A 0004232186 | CUP |
| 083 | A 0004201755 | BLEEDER VALVE |
| 086 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 086 | A 0004210887 | PROTECTIVE CAP |
| 089 | A 0004207720 | BRAKE PAD |
| Repalced by: A 0024201020 | ||
| 089 | A 0024201020 | BRAKE PAD |
| PARTS KIT | ||
| 092 | A 0004207220 | BRAKE PAD |
| Repalced by: A 0024200920 | ||
| 092 | A 0024200920 | BRAKE PAD |
| PARTS KIT | ||
| A 0005869842 | REPAIR KIT | |
| CALIPER | ||
| 139 | A 1004201786 | BRACKET |
| LEFT | ||
| A 1004201686 | BRACKET | |
| RIGHT | ||
| 143 | A 1004200244 | PROTECTIVE PLATE |
| LEFT | ||
| A 1004200344 | PROTECTIVE PLATE | |
| RIGHT | ||
| N 000933006180 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 146 | A 1004201186 | BRACKET |
| 149 | A 1004230452 | SPACER WASHER |
| AS REQUIRED | ||
| 1 MM | ||
| A 1004230152 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| A 1004230552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1004230252 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1004230352 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.5 MM | ||
| 152 | A 1009900114 | SCREW |
| 155 | A 1003580073 | LOCK |
| 158 | A 1234205628 | LINE |
| LEFT | ||
| A 1234205628 | LINE | |
| RIGHT | ||
| 163 | A 1124280081 | RUBBER PAD |

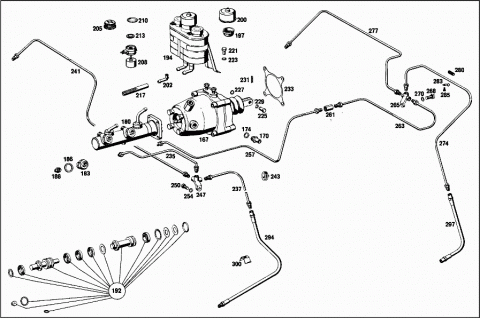

| A 0014305401 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024303501 | ||
| A 0014307001 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024303501 | ||
| A 0024303501 | BRAKE MASTER CYLINDER | |
| Repalced by: A 1005860043 | ||
| A 0024303501 | BRAKE MASTER CYLINDER | |
| Repalced by: A 1005860143 | ||
| 167 | A 0024300301 | BRAKE BOOSTER |
| 170 | A 1009972072 | FITTING |
| 174 | N 007603014101 | SEAL RING |
| A 0069970282 | HOSE | |
| Repalced by: A 1094760926 | ||
| A 1094760926 | HOSE | |
| N 007603014101 | SEAL RING | |
| N 007623008101 | HOLLOW SCREW | |
| A 1005860043 | REPAIR KIT | |
| MASTER CYLINDER CONVERSION | ||
| A 1005860143 | REPAIR KIT | |
| MASTER CYLINDER CONVERSION | ||
| 180 | A 0024300501 | BRAKE MASTER CYLINDER |
| 183 | A 0004310622 | THREADED UNION |
| 186 | N 007603022100 | SEAL RING |
| 188 | A 0004303881 | VALVE |
| 192 | A 0005861443 | REPAIR KIT |
| A 0004314302 | RESERVOIR | |
| 194 | A 0004315502 | RESERVOIR |
| 197 | A 0004314334 | STRAINER |
| 200 | A 0004311133 | FILLER CAP |
| 202 | A 0004310835 | CONNECTOR |
| 205 | A 0004311633 | FILLER CAP |
| 208 | A 0015426217 | SENDER UNIT |
| 210 | A 0004317560 | SEAL RING |
| 213 | A 0004318260 | SEAL RING |
| 217 | A 0029976782 | HOSE |
| 90 MM | ||
| 221 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 221 | N 304017008021 | SCREW |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 223 | N 000127008203 | LOCK WASHER |
| N 900269014100 | CLAMP | |
| 225 | N 001434010009 | PIN |
| 227 | N 000433010505 | WASHER |
| 229 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 229 | N 000137010205 | SPRING WASHER |
| 231 | A 1009940060 | LOCK |
| 233 | A 1004310080 | GASKET |
| 235 | A 1234205228 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234205628 | LINE | |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234205528 | LINE | |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234205328 | LINE | |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234205628 | LINE | |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 237 | A 1234205528 | LINE |
| LEFT FRONT | ||
| A 1234207128 | LINE | |
| LEFT FRONT | ||
| A 1234207128 | LINE | |
| LEFT FRONT | ||
| 241 | A 1234207128 | LINE |
| RIGHT FRONT | ||
| A 1234205528 | LINE | |
| RIGHT FRONT | ||
| A 1234205428 | LINE | |
| RIGHT FRONT | ||
| 243 | A 1869970681 | GROMMET |
| 247 | A 0004283524 | DISTRIBUTOR |
| 250 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 250 | N 304017008021 | SCREW |
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| 254 | N 000127008203 | LOCK WASHER |
| A 3479915040 | SPACER TUBE | |
| 257 | A 1234207128 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| A 1234207428 | LINE | |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 261 | A 1214290134 | ADAPTER FITTING |
| 263 | A 1234207628 | LINE |
| FROM CONNECTOR TO REAR AXLE | ||
| A 1234208328 | LINE | |
| FROM CONNECTOR TO REAR AXLE | ||
| 265 | A 0004283624 | DISTRIBUTOR |
| FRAME FLOOR UNIT,REAR | ||
| 268 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 268 | N 304017008021 | SCREW |
| 270 | N 000127008203 | LOCK WASHER |
| 274 | A 1234206428 | LINE |
| LEFT | ||
| 277 | A 1234206428 | LINE |
| RIGHT | ||
| 280 | A 1109970182 | HOSE |
| Repalced by: A 2014761126 | ||
| 280 | A 2014761126 | HOSE |
| SIDE MEMBER,FRONT | ||
| 283 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 283 | A 1279950020 | CLAMP |
| SIDE MEMBER,FRONT | ||
| 285 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 285 | N 000000002062 | SCREW |
| SIDE MEMBER,FRONT | ||
| N 072571001024 | CLAMP | |
| AT FIRE WALL | ||
| A 1109970182 | HOSE | |
| Repalced by: A 2014761126 | ||
| A 2014761126 | HOSE | |
| AT FIRE WALL | ||
| N 007981003247 | SHEET METAL SCREW | |
| AT FIRE WALL | ||
| A 1009910840 | SPACER TUBE | |
| AT FIRE WALL | ||
| A 1009950042 | CLAMP | |
| Repalced by: A 1119950042 | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| AT FIRE WALL | ||
| A 1114760081 | RUBBER PAD | |
| AT FIRE WALL | ||
| A 1809950022 | CLAMP | |
| AT FIRE WALL | ||
| A 1124760184 | DAMPING STRIP | |
| AT FIRE WALL | ||
| N 007976004211 | SHEET METAL SCREW | |
| AT FIRE WALL | ||
| A 1009910840 | SPACER TUBE | |
| AT FIRE WALL | ||
| N 072571001024 | CLAMP | |
| AT FRAME FLOOR UNIT,REAR | ||
| A 1109970182 | HOSE | |
| Repalced by: A 2014761126 | ||
| A 2014761126 | HOSE | |
| AT FRAME FLOOR UNIT,REAR | ||
| N 007981004245 | SHEET METAL SCREW | |
| Repalced by: N 007981004339 | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| AT FRAME FLOOR UNIT,REAR | ||
| 294 | A 1234280535 | BRAKE HOSE |
| FRONT WHEEL BRAKE | ||
| 297 | A 1164280235 | BRAKE HOSE |
| REAR WHEEL BRAKE | ||
| 300 | A 0004280673 | RETAINING SPRING |

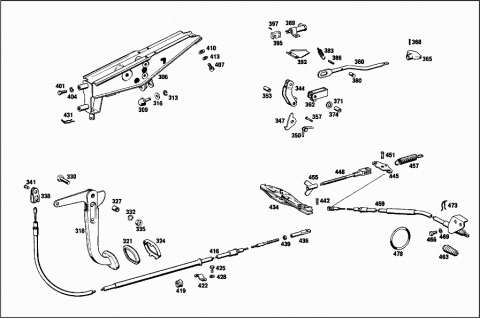

| A 1004200484 | PARKING BRAKE | |
| 306 | A 1004200368 | SUPPORT |
| 309 | A 1004270186 | DAMPING RING |
| 313 | N 006799004001 | LOCK PLATE |
| 316 | A 1004270276 | WASHER |
| 318 | A 1004201712 | BRAKE LEVER |
| 321 | A 1004270182 | PAD |
| 324 | A 1004270077 | THIMBLE |
| 327 | A 1004270553 | SPACER TUBE |
| 16 MM AS REQUIRED | ||
| A 1004270653 | SPACER TUBE | |
| 15.9 MM AS REQUIRED | ||
| 330 | N 000960010025 | SCREW |
| PEDAL TO SUPPORT | ||
| 332 | N 000127010200 | LOCK WASHER |
| PEDAL TO SUPPORT | ||
| 335 | N 000936010010 | NUT |
| PEDAL TO SUPPORT | ||
| 338 | A 1004270389 | CONNECTOR |
| 341 | N 001434008034 | PIN |
| N 000094002002 | COTTER PIN | |
| 344 | A 1004202081 | LEVER |
| 347 | A 1004270115 | PAWL |
| 350 | A 1009930222 | SPRING |
| 353 | A 1004270453 | SPACER TUBE |
| N 000931006118 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 357 | N 001434004011 | PIN |
| N 000094001000 | COTTER PIN | |
| 360 | A 1004270725 | LEVER |
| 362 | A 1004200781 | LEVER |
| 365 | A 1004270520 | HANDLE |
| 368 | N 001481003025 | CLAMPING SLEEVE |
| 371 | A 1004270252 | SPACER WASHER |
| 374 | A 1004270453 | SPACER TUBE |
| N 000931006118 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 380 | A 1004270374 | PIN |
| 383 | A 1009930510 | SPRING |
| 386 | N 007346004009 | CLAMPING SLEEVE |
| Repalced by: N 001481004023 | ||
| 386 | N 001481004023 | CLAMPING SLEEVE |
| 389 | A 1008002275 | ELEMENT |
| 392 | A 1004200944 | PROTECTIVE PLATE |
| 395 | A 1004270239 | END PIECE |
| 397 | N 001481002004 | CLAMPING SLEEVE |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| ELEMENT TO SUPPORT | ||
| N 000137006204 | SPRING WASHER | |
| ELEMENT TO SUPPORT | ||
| N 000934006007 | NUT | |
| ELEMENT TO SUPPORT | ||
| 401 | N 000933008145 | SCREW |
| 404 | N 000127008203 | LOCK WASHER |
| 407 | N 000912008089 | SCREW |
| 410 | N 000125008407 | WASHER |
| 413 | N 000127008203 | LOCK WASHER |
| 416 | A 1004200885 | BRAKE CABLE |
| FRONT | ||
| A 1004201585 | BRAKE CABLE | |
| FRONT | ||
| A 1004201885 | BRAKE CABLE | |
| FRONT | ||
| A 1004201985 | BRAKE CABLE | |
| FRONT | ||
| 419 | A 1004270391 | GROMMET |
| 422 | A 1009950010 | CLAMP |
| 425 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 425 | N 304017006018 | SCREW |
| 428 | N 912004006102 | LOCK WASHER |
| 431 | A 1009930025 | SPRING |
| 434 | A 1004200342 | BRAKE LEVER |
| 436 | A 1004270039 | END PIECE |
| 439 | N 000934006007 | NUT |
| 442 | N 001434006051 | PIN |
| N 000094001510 | COTTER PIN | |
| 445 | A 1104270113 | LEVER |
| 448 | A 1004200873 | SCREW |
| 451 | N 001434008033 | PIN |
| N 000094002059 | COTTER PIN | |
| 455 | A 1004270019 | HANDWHEEL |
| 457 | A 1009930710 | SPRING |
| 459 | A 1004201685 | BRAKE CABLE |
| REAR LEFT | ||
| A 1004201785 | BRAKE CABLE | |
| REAR RIGHT | ||
| 463 | A 1804200176 | END PIECE |
| REPAIR SIZE | ||
| 466 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 466 | N 304017008016 | SCREW |
| 469 | N 000127008203 | LOCK WASHER |
| 473 | A 1009930025 | SPRING |
| 478 | A 1004270286 | DAMPING RING |
| LEFT | ||
| A 1004270386 | DAMPING RING | |
| RIGHT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
