Transporto priemonė: 600; VIN numerio dalis: 100015

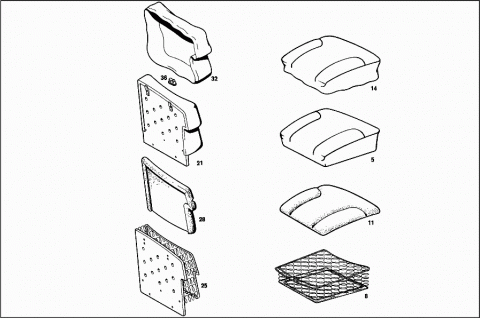

Grupė: 93 CENTRAL SEATS - 001 SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1009300121 | SEAT CUSHION |
| DRALON-VELOURS | ||
| A 1009300721 | SEAT CUSHION | |
| WOOL-VELOURS | ||
| A 1009300321 | SEAT CUSHION | |
| LEFT; LEATHER | ||
| A 1009300421 | SEAT CUSHION | |
| LEFT; LEATHER | ||
| 008 | A 1009300325 | SEAT CUSHION FRAME |
| 011 | A 1009340014 | PAD |
| A 1009340414 | PAD | |
| A 0009842061 | CLIP | |
| 014 | A 1009300546 | COVER |
| DRALON-VELOURS | ||
| A 1009302346 | COVER | |
| WOOL-VELOURS | ||
| A 1009301946 | COVER | |
| LEFT; LEATHER | ||
| A 1009302046 | COVER | |
| RIGHT; LEATHER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| N 912004008101 | LOCK WASHER | |
| 021 | A 1009300731 | BACKREST |
| LEFT; DRALON-VELOURS | ||
| A 1009300831 | BACKREST | |
| RIGHT; DRALON-VELOURS | ||
| A 1009300931 | BACKREST | |
| LEFT; WOOL-VELOURS | ||
| A 1009301031 | BACKREST | |
| RIGHT; WOOL-VELOURS | ||
| A 1009300331 | BACKREST | |
| LEFT; LEATHER | ||
| A 1009300431 | BACKREST | |
| RIGHT; LEATHER | ||
| 025 | A 1009300132 | BACKREST FRAME |
| LEFT | ||
| A 1009300232 | BACKREST FRAME | |
| RIGHT | ||
| A 1009341716 | PAD | |
| Repalced by: A 1009342116 | ||
| 028 | A 1009342116 | PAD |
| LEFT | ||
| A 1009341816 | PAD | |
| Repalced by: A 1009342216 | ||
| A 1009342216 | PAD | |
| RIGHT | ||
| A 1009341516 | PAD | |
| LEFT | ||
| A 1009341616 | PAD | |
| RIGHT | ||
| A 0009842061 | CLIP | |
| 032 | A 1009302347 | COVER |
| LEFT; DRALON-VELOURS | ||
| A 1009302447 | COVER | |
| RIGHT; DRALON-VELOURS | ||
| A 1009303347 | COVER | |
| LEFT; WOOL-VELOURS | ||
| A 1009303447 | COVER | |
| RIGHT; WOOL-VELOURS | ||
| A 1009300747 | COVER | |
| RIGHT; LEATHER | ||
| A 1009300847 | COVER | |
| RIGHT; LEATHER | ||
| 036 | A 1009970681 | GROMMET |
| N 000931006187 | SCREW | |
| Repalced by: N 304014006005 | ||
| N 304014006005 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |

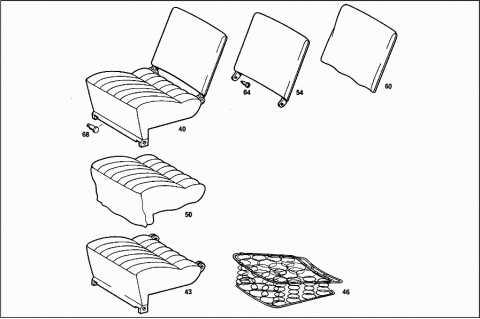

| 040 | A 1009300005 | FOLDING SEAT |
| 043 | A 1009300061 | SEAT CUSHION |
| 046 | A 1009300080 | SPRING CORE |
| A 1009380014 | PAD | |
| 050 | A 1009300286 | COVER |
| DRALON-VELOURS | ||
| A 0009830284 | LEATHER | |
| Repalced by: A 1009300386 | ||
| A 1009300386 | COVER | |
| LEATHER | ||
| 054 | A 1009300071 | BACKREST |
| A 1009380016 | PAD | |
| A 1009380075 | PADDING | |
| FRONT | ||
| A 1009380275 | PADDING | |
| REAR | ||
| 060 | A 1009300287 | COVER |
| 064 | A 1009840931 | SCREW |
| 068 | A 1009840233 | SCREW |
