Transporto priemonė: 600; VIN numerio dalis: 100015

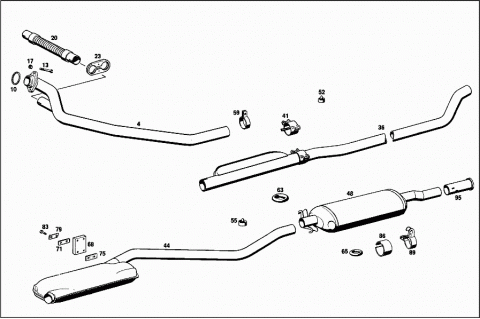

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1004900820 | EXHAUST PIPE |
| FRONT LEFT | ||
| A 1004900920 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1004901020 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| A 1004901120 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| 010 | A 0039974440 | SEAL RING |
| Repalced by: A 0049979940 | ||
| 010 | A 0049979940 | SEAL RING |
| 013 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 013 | N 304017008043 | SCREW |
| 017 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 017 | A 0009903250 | NUT |
| 020 | A 0004921059 | FLEXIBLE METAL TUBE |
| 023 | A 1104920040 | CLAMP |
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 036 | A 1004900222 | EXHAUST PIPE |
| LEFT | ||
| A 1004900322 | EXHAUST PIPE | |
| RIGHT | ||
| A 1004900422 | EXHAUST PIPE | |
| LEFT | ||
| A 1004900522 | EXHAUST PIPE | |
| RIGHT | ||
| 041 | A 1004920140 | CLAMP |
| 044 | A 1004900821 | EXHAUST PIPE |
| LEFT | ||
| A 1004900921 | EXHAUST PIPE | |
| RIGHT | ||
| 048 | A 1004912101 | MUFFLER |
| LEFT | ||
| A 1004912001 | MUFFLER | |
| RIGHT | ||
| 052 | A 1009870240 | RUBBER BUFFER |
| Repalced by: A 1009870140 | ||
| 052 | A 1009870140 | RUBBER BUFFER |
| 055 | A 1009870140 | RUBBER BUFFER |
| 059 | N 071555053502 | CLAMP |
| N 000933010105 | SCREW | |
| Repalced by: N 304017010019 | ||
| N 304017010019 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| 063 | A 1134920082 | DAMPING PAD |
| 065 | A 1074920082 | DAMPING PAD |
| 068 | A 1834920282 | DAMPING PAD |
| 071 | A 1834920018 | BASE PLATE |
| 075 | A 1004920083 | INSULATION |
| Repalced by: A 0004921383 | ||
| 075 | A 0004921383 | INSULATION |
| 079 | A 6360740073 | LOCK |
| 083 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 083 | N 304017006012 | SCREW |
| A 1134920082 | DAMPING PAD | |
| 086 | A 1004920283 | INSULATION |
| Repalced by: A 0004921483 | ||
| 086 | A 0004921483 | INSULATION |
| 089 | A 1004900040 | BRACKET |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 095 | A 1234920714 | END PIECE |
