Transporto priemonė: 600; VIN numerio dalis: 100015

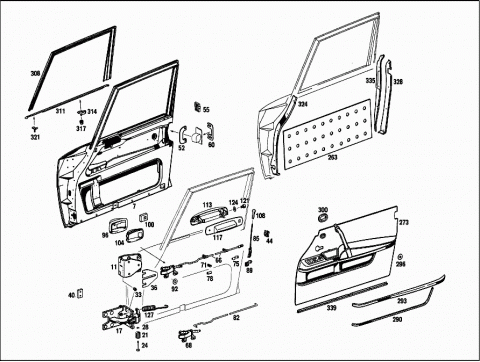

Grupė: 72 FRONT DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1007200305 | DOOR SHELL | |
| Repalced by: A 1007202305 | ||
| A 1007200905 | DOOR SHELL | |
| Repalced by: A 1007202305 | ||
| A 1007201305 | DOOR SHELL | |
| Repalced by: A 1007202305 | ||
| A 1007202305 | DOOR SHELL | |
| LEFT | ||
| A 1007202705 | DOOR SHELL | |
| LEFT | ||
| A 1007200405 | DOOR SHELL | |
| Repalced by: A 1007202405 | ||
| A 1007201005 | DOOR SHELL | |
| Repalced by: A 1007202405 | ||
| A 1007201405 | DOOR SHELL | |
| Repalced by: A 1007202405 | ||
| 007 | A 1007202405 | DOOR SHELL |
| RIGHT | ||
| A 1007202805 | DOOR SHELL | |
| RIGHT | ||
| A 1007200337 | HINGE | |
| Repalced by: A 1007201137 | ||
| A 1007201137 | HINGE | |
| TOP LEFT | ||
| A 1007200437 | HINGE | |
| Repalced by: A 1007201237 | ||
| 011 | A 1007201237 | HINGE |
| TOP RIGHT | ||
| A 1007200538 | HINGE | |
| Repalced by: A 1007201138 | ||
| A 1007200738 | HINGE | |
| Repalced by: A 1007201138 | ||
| A 1007201138 | HINGE | |
| BOTTOM LEFT | ||
| A 1007200638 | HINGE | |
| Repalced by: A 1007201238 | ||
| A 1007200838 | HINGE | |
| Repalced by: A 1007201238 | ||
| 017 | A 1007201238 | HINGE |
| BOTTOM RIGHT | ||
| 021 | A 1007230168 | ROLLER |
| 024 | A 1007230038 | PIN |
| 028 | N 006799004001 | LOCK PLATE |
| 033 | A 0009970488 | GREASE NIPPLE |
| N 000965008008 | SCREW | |
| A 1007230005 | PAD | |
| Repalced by: A 1007230105 | ||
| 036 | A 1007230105 | PAD |
| N 000931008180 | SCREW | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| A 1369903940 | WASHER | |
| Repalced by: A 1809900640 | ||
| A 1809900640 | WASHER | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| N 000127008203 | LOCK WASHER | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| A 1089900122 | SCREW | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| 040 | A 1007230411 | PLATE |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| N 000965008008 | SCREW | |
| FRONT DOOR TO FRONT PANEL PILLAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR DOOR LOCK AND STRIKER,SEE GROUP 80 | ||
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009904891 | ||
| 044 | A 0009904891 | NUT RETAINER |
| Repalced by: A 0009909991 | ||
| 044 | A 0009909991 | NUT RETAINER |
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| A 0009903330 | SCREW | |
| A 0009901930 | SCREW | |
| Repalced by: A 0009902030 | ||
| A 0009902030 | SCREW | |
| A 1007230124 | EDGING | |
| LEFT | ||
| 052 | A 1007230224 | EDGING |
| RIGHT | ||
| N 000966004005 | SCREW | |
| A 1007230324 | EDGING | |
| LEFT | ||
| A 1007230424 | EDGING | |
| RIGHT | ||
| N 007988004106 | SCREW | |
| N 007988004110 | SCREW | |
| 055 | A 1007230811 | PLATE |
| 060 | A 1007230211 | PLATE |
| A 1007230311 | PLATE | |
| N 007987006145 | SCREW | |
| A 0009903330 | SCREW | |
| A 1007230611 | PLATE | |
| Repalced by: A 1007231011 | ||
| A 1007231011 | PLATE | |
| A 1007230711 | PLATE | |
| Repalced by: A 1007231111 | ||
| A 1007231111 | PLATE | |
| A 1007600761 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 066 | A 1007600861 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| A 1007601761 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| A 1007601861 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT | ||
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 068 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| A 1209870137 | MOLDED PIECE | |
| Repalced by: A 0029888378 | ||
| 071 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 071 | A 0069886378 | CLIP |
| H 101807230055 | LOCK | |
| Repalced by: A 1009940160 | ||
| 075 | A 1009940160 | LOCK |
| 078 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 078 | A 0069886378 | CLIP |
| A 1007200392 | ROD | |
| Repalced by: A 1007230369 | ||
| 082 | A 1007230369 | PULL ROD |
| A 1007200293 | DOOR LOCKING DEVICE | |
| L.H.D. ON THE LEFT; R.H.D., ON THE RIGHT | ||
| A 1007230339 | LOCKING ROD | |
| LEFT | ||
| 085 | A 1007230139 | LOCKING ROD |
| L.H.D., ON THE RIGHT: R.H.D., ON THE LEFT | ||
| A 1007230439 | LOCKING ROD | |
| RIGHT | ||
| A 0009940460 | LOCK | |
| Repalced by: A 1009940160 | ||
| 089 | A 1009940160 | LOCK |
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| 092 | N 914129006001 | SCREW |
| A 1107660511 | ESCUTCHEON | |
| LEFT | ||
| A 1107660611 | ESCUTCHEON | |
| RIGHT | ||
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| 096 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| 100 | A 1157660098 | SEAL |
| A 1107660690 | INSERT | |
| A 1087660390 | INSERT | |
| LEFT | ||
| 104 | A 1087660490 | INSERT |
| RIGHT | ||
| N 007987004119 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| 108 | A 1107600565 | KNOB |
| A 1007600159 | DOOR HANDLE | |
| LEFT | ||
| A 1007600359 | DOOR HANDLE | |
| LEFT | ||
| 113 | A 1007600259 | DOOR HANDLE |
| RIGHT | ||
| A 1007600459 | DOOR HANDLE | |
| RIGHT | ||
| A 1007660105 | PAD | |
| LEFT | ||
| 117 | A 1007660205 | PAD |
| RIGHT | ||
| 121 | N 000912006095 | SCREW |
| N 000137006204 | SPRING WASHER | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 124 | A 1119930026 | DISC SPRING |
| 127 | A 1007230034 | SPRING |

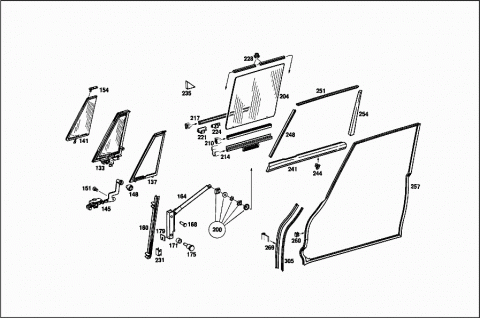

| A 1007200555 | VENTILATOR WINDOW | |
| Repalced by: A 1007201555 | ||
| A 1007201555 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1007200655 | VENTILATOR WINDOW | |
| Repalced by: A 1007201655 | ||
| 133 | A 1007201655 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1007200955 | VENTILATOR WINDOW | |
| Repalced by: A 1007201555 | ||
| A 1007201555 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1007201055 | VENTILATOR WINDOW | |
| Repalced by: A 1007201655 | ||
| A 1007201655 | VENTILATOR WINDOW | |
| RIGHT | ||
| A 1007250124 | SEAL | |
| LEFT | ||
| 137 | A 1007250224 | SEAL |
| RIGHT | ||
| A 1007200355 | VENTILATOR WINDOW | |
| Repalced by: A 1007201155 | ||
| A 1007200455 | VENTILATOR WINDOW | |
| Repalced by: A 1007201255 | ||
| A 1007201155 | VENTILATOR WINDOW | |
| LEFT | ||
| 141 | A 1007201255 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1007200966 | FASTENER | |
| Repalced by: A 1007201566 | ||
| A 1007201566 | FASTENER | |
| LEFT | ||
| A 1007201066 | FASTENER | |
| Repalced by: A 1007201666 | ||
| 145 | A 1007201666 | FASTENER |
| RIGHT | ||
| A 1007250064 | SPRING | |
| A 1007250264 | SPRING | |
| A 1007250078 | KNOB | |
| 148 | A 1087200066 | FASTENER |
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| N 007987006129 | SCREW | |
| N 006797006342 | TOOTHED WASHER | |
| 151 | A 1007250315 | PIN |
| N 900055008002 | SPRING WASHER | |
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| A 1007250180 | MOUNTING | |
| TOP LEFT | ||
| 154 | A 1007250280 | MOUNTING |
| TOP RIGHT | ||
| N 007987004118 | SCREW | |
| VENTILATOR WINDOW TO RETAINING FRAME, TOP AND BOTTOM | ||
| N 000091006126 | SCREW | |
| N 007985004140 | SCREW | |
| VENTILATOR WINDOW TO FRONT DOOR,TOP AND BOTTOM | ||
| N 000137004202 | SPRING WASHER | |
| VENTILATOR WINDOW TO FRONT DOOR,TOP AND BOTTOM | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| VENTILATOR WINDOW TO FRONT DOOR,TOP AND BOTTOM | ||
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| VENTILATOR WINDOW TO FRONT DOOR,TOP AND BOTTOM | ||
| A 1007200115 | GUIDE RAIL | |
| LEFT FRONT | ||
| 160 | A 1007200215 | GUIDE RAIL |
| RIGHT FRONT | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009940510 | LOCK | |
| A 1007200146 | WINDOW REGULATOR | |
| LEFT | ||
| 164 | A 1007200246 | WINDOW REGULATOR |
| RIGHT | ||
| 168 | A 1007250015 | PIN |
| 171 | A 1009910440 | SPACER TUBE |
| N 912002010001 | LOCK | |
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| 175 | A 1007250115 | PIN |
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| N 900055008002 | SPRING WASHER | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| WINDOW REGULATOR TO FRONT DOOR CONSOLE | ||
| N 912004006102 | LOCK WASHER | |
| WINDOW REGULATOR TO FRONT DOOR CONSOLE | ||
| A 1117255147 | ADAPTER | |
| Repalced by: A 1007250147 | ||
| 179 | A 1007250147 | ADAPTER |
| 2 MM WINDOW REGULATOR TO CONSOLE AT FRONT DOOR | ||
| A 1117255247 | ADAPTER | |
| Repalced by: A 1007250247 | ||
| A 1007250247 | ADAPTER | |
| 1 MM WINDOW REGULATOR TO CONSOLE AT FRONT DOOR | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1209840137 | SLIDE | |
| Repalced by: A 1139840037 | ||
| A 1139840037 | SLIDE | |
| Repalced by: A 1155860072 | ||
| A 1155860072 | REPAIR KIT | |
| Repalced by: A 1237200114 | ||
| A 1237200114 | REPAIR KIT | |
| A 0009842456 | WASHER | |
| A 0009900548 | WASHER | |
| N 912002010001 | LOCK | |
| 200 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 200 | A 1237200114 | REPAIR KIT |
| A 1007251310 | GLASS PANE | |
| LEFT | ||
| 204 | A 1007251410 | GLASS PANE |
| RIGHT | ||
| 210 | A 0009876657 | RUBBER MOULDING |
| 408 MM | ||
| A 1007200345 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 214 | A 1007200445 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| A 0009850330 | SEALING SECTION | |
| Repalced by: A 1157250965 | ||
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| 217 | A 1157250965 | SEALING RAIL |
| 400 MM | ||
| 221 | A 0019881778 | CLIP |
| 224 | A 0019882378 | CLIP |
| 228 | A 0009851630 | SEALING SECTION |
| 2260 MM | ||
| A 0019880878 | CLIP | |
| Repalced by: A 0029882378 | ||
| 231 | A 0029882378 | CLIP |
| A 1087250098 | SEAL | |
| Repalced by: A 1157251298 | ||
| 235 | A 1157251298 | SEAL |
| Repalced by: A 1167250198 | ||
| 235 | A 1167250198 | SEAL |
| A 1007200151 | PANELLING | |
| LEFT | ||
| 241 | A 1007200251 | PANELLING |
| RIGHT | ||
| 244 | A 0019882878 | CLIP |
| Repalced by: A 0029884578 | ||
| 244 | A 0029884578 | CLIP |
| A 1007200551 | PANELLING | |
| FRONT LEFT | ||
| 248 | A 1007200651 | PANELLING |
| FRONT RIGHT | ||
| N 007983002319 | SHEET METAL SCREW | |
| A 1007200751 | PANELLING | |
| TOP LEFT | ||
| 251 | A 1007200851 | PANELLING |
| TOP RIGHT | ||
| N 007983002303 | SHEET METAL SCREW | |
| A 0009850962 | WASHER | |
| A 1007200951 | PANELLING | |
| REAR LEFT | ||
| 254 | A 1007201051 | PANELLING |
| REAR RIGHT | ||
| N 007995003018 | WOOD SCREW | |
| N 007995003025 | WOOD SCREW | |
| A 1007270135 | RAIL | |
| A 1007200378 | WEATHERSTRIP | |
| Repalced by: A 1007200578 | ||
| A 1007200578 | WEATHERSTRIP | |
| LEFT | ||
| A 1007200478 | WEATHERSTRIP | |
| Repalced by: A 1007200678 | ||
| 257 | A 1007200678 | WEATHERSTRIP |
| RIGHT | ||
| 260 | A 0019882478 | CLIP |
| N 007981003246 | SHEET METAL SCREW | |
| 263 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 263 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 263 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 263 | A 2106820008 | INSULATION |
| Repalced by: A 1686820308 | ||
| 263 | A 1686820308 | INSULATION |
| 269 | A 0009877830 | WELT |
| A 0009870933 | RUBBER SECTION | |
| A 1007200570 | PANELLING | |
| LEFT | ||
| A 1007202570 | PANELLING | |
| LEFT | ||
| A 1007204170 | PANELLING | |
| LEFT | ||
| A 1007204570 | PANELLING | |
| LEFT | ||
| A 1007208770 | PANELLING | |
| LEFT | ||
| A 1007204370 | PANELLING | |
| LEFT | ||
| A 1007208570 | PANELLING | |
| LEFT | ||
| 273 | A 1007200670 | PANELLING |
| RIGHT | ||
| A 1007202670 | PANELLING | |
| RIGHT | ||
| A 1007204270 | PANELLING | |
| RIGHT | ||
| A 1007204670 | PANELLING | |
| RIGHT | ||
| A 1007208870 | PANELLING | |
| RIGHT | ||
| A 1007204470 | PANELLING | |
| RIGHT | ||
| A 1007208670 | PANELLING | |
| RIGHT | ||
| A 1007201170 | PANELLING | |
| LEFT | ||
| A 1007203970 | PANELLING | |
| LEFT | ||
| A 1007205570 | PANELLING | |
| LEFT | ||
| A 1007209170 | PANELLING | |
| LEFT | ||
| A 1007205370 | PANELLING | |
| LEFT | ||
| A 1007208970 | PANELLING | |
| LEFT | ||
| A 1007201270 | PANELLING | |
| RIGHT | ||
| A 1007204070 | PANELLING | |
| RIGHT | ||
| A 1007205670 | PANELLING | |
| RIGHT | ||
| A 1007209270 | PANELLING | |
| RIGHT | ||
| A 1007205470 | PANELLING | |
| RIGHT | ||
| A 1007209070 | PANELLING | |
| RIGHT | ||
| A 1007270182 | GARNISH MOULDING | |
| Repalced by: A 1007270382 | ||
| A 1007270382 | GARNISH MOULDING | |
| LEFT | ||
| A 1007270282 | GARNISH MOULDING | |
| Repalced by: A 1007270482 | ||
| A 1007270482 | GARNISH MOULDING | |
| Repalced by: A 1007270682 | ||
| 290 | A 1007270682 | GARNISH MOULDING |
| RIGHT | ||
| N 007331004145 | RIVET | |
| A 1007200122 | GARNISH MOULDING | |
| LEFT | ||
| A 1007200381 | GARNISH MOULDING | |
| LEFT | ||
| 293 | A 1007200222 | GARNISH MOULDING |
| RIGHT | ||
| A 1007200481 | GARNISH MOULDING | |
| RIGHT | ||
| N 007981003214 | SHEET METAL SCREW | |
| N 007981003337 | SHEET METAL SCREW | |
| Repalced by: N 007981003214 | ||
| N 007981003214 | SHEET METAL SCREW | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR ARMRESTS ON FRONT DOORS, SEE GROUP 97 | ||
| 296 | A 1139900042 | WASHER |
| Repalced by: A 1129900042 | ||
| 296 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 296 | A 3019900042 | WASHER |
| ARMREST TO DOOR LINING | ||
| N 000087005111 | SCREW | |
| ARMREST TO DOOR LINING | ||
| N 000933005075 | SCREW | |
| Repalced by: N 304017005002 | ||
| N 304017005002 | SCREW | |
| ARMREST TO DOOR LINING | ||
| N 000439005201 | NUT | |
| ARMREST TO DOOR LINING | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| ARMREST TO DOOR LINING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR GRAB HANDLES AND ASH-TRAYS ON FRONT DOORS,SEE GROUP 81 | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| 300 | A 1007270059 | ESCUTCHEON |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| ORNAMENTAL COVER TO DOOR LINING | ||
| N 000934004006 | NUT | |
| ORNAMENTAL COVER TO DOOR LINING | ||
| N 007983002216 | SHEET METAL SCREW | |
| A 0009850562 | WASHER | |
| A 1007270172 | RAIL | |
| LEFT BOTTOM | ||
| 305 | A 1007270272 | RAIL |
| RIGHT BOTTOM | ||
| N 007983002203 | SHEET METAL SCREW | |
| A 1007280731 | GARNISH MOULDING | |
| LEFT | ||
| 308 | A 1007280831 | GARNISH MOULDING |
| RIGHT | ||
| A 0009900736 | SCREW | |
| A 1007280130 | GARNISH MOULDING | |
| LEFT | ||
| 311 | A 1007280230 | GARNISH MOULDING |
| RIGHT | ||
| 314 | A 0009882681 | FASTENER BUTTON |
| 317 | A 0009881581 | FASTENER BUTTON |
| Repalced by: A 0019882081 | ||
| 317 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 317 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 317 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 317 | A 0019887681 | FASTENER BUTTON |
| 321 | A 1007200094 | SCREW |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| A 1007280121 | ORNAMENTAL COVER | |
| LEFT | ||
| 324 | A 1007280221 | ORNAMENTAL COVER |
| RIGHT | ||
| A 1007280321 | ORNAMENTAL COVER | |
| LEFT | ||
| 328 | A 1007280421 | ORNAMENTAL COVER |
| RIGHT | ||
| A 1007281721 | ORNAMENTAL COVER | |
| LEFT | ||
| A 1007281821 | ORNAMENTAL COVER | |
| RIGHT | ||
| A 1007280521 | ORNAMENTAL COVER | |
| Repalced by: A 1007281321 | ||
| A 1007281321 | ORNAMENTAL COVER | |
| OUTSIDE LEFT | ||
| A 1007280621 | ORNAMENTAL COVER | |
| Repalced by: A 1007281421 | ||
| A 1007281421 | ORNAMENTAL COVER | |
| OUTSIDE RIGHT | ||
| A 1007281521 | ORNAMENTAL COVER | |
| Repalced by: A 1007281321 | ||
| A 1007281321 | ORNAMENTAL COVER | |
| OUTSIDE LEFT | ||
| A 1007281621 | ORNAMENTAL COVER | |
| Repalced by: A 1007281421 | ||
| 335 | A 1007281421 | ORNAMENTAL COVER |
| OUTSIDE RIGHT | ||
| A 0009900536 | SCREW | |
| 339 | A 1007280024 | COVER RAIL |
| N 007982002312 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
