Transporto priemonė: 600; VIN numerio dalis: 100015

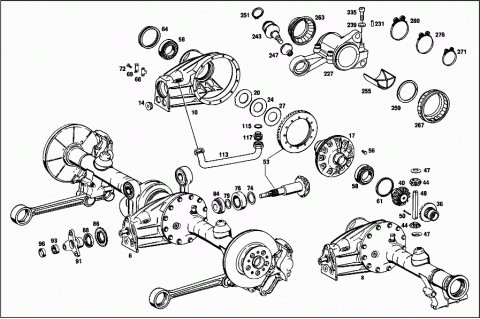

Grupė: 35 REAR AXLE

#	Kodas	Pavadinimas
006	A 1003501000	REAR AXLE
		RATIO:
		1:3.23
008	A 1003500103	AXLE HOUSING
	A 1003510601	AXLE CASING
	Repalced by: A 1003511101
010	A 1003511101	AXLE CASING
014	N 000906036000	SCREW PLUG
	A 1003501223	DIFFERENTIAL GEAR
	Repalced by: A 1003501623
	A 1003501523	DIFFERENTIAL GEAR
	Repalced by: A 1003501623
017	A 1003501623	DIFFERENTIAL GEAR
		LESS RING GEAR AND PINION
020	A 1003531962	THRUST WASHER
		AS REQUIRED
		1.3 MM
024	A 1003534662	THRUST WASHER
		AS REQUIRED
		2.5 MM
027	A 1003534862	THRUST WASHER
		AS REQUIRED
		3.3 MM
	A 1003534962	THRUST WASHER
		AS REQUIRED
		3.4 MM
	A 1003535062	THRUST WASHER
		AS REQUIRED
		3.5 MM
	A 1003535162	THRUST WASHER
		AS REQUIRED
		3.6 MM
	A 1003535262	THRUST WASHER
		AS REQUIRED
		3.7 MM
	A 1003535362	THRUST WASHER
		AS REQUIRED
		3.8 MM
	A 1003535462	THRUST WASHER
		AS REQUIRED
		3.9 MM
	A 1003535562	THRUST WASHER
		AS REQUIRED
		4.0 MM
036	A 1003531615	SIDE GEAR
		LEFT
040	A 1003501140	DIFFERENTIAL PINION
		RIGHT
044	A 1003530814	DIFFERENTIAL PINION
047	A 1003530824	SPHERICAL WASHER
049	A 1003530421	PIN
050	A 1003530174	PIN
053	A 1003500639	RING GEAR AND PINION
		RATIO:
		1:3.23
056	A 1009902801	SCREW
056	A 1009902801	SCREW
	A 1093570071	SCREW
058	A 0009800702	TAPERED ROLLER BEARING
061	A 1003532252	SPACER WASHER
		AS REQUIRED
		1.8 MM
	A 1003532352	SPACER WASHER
		AS REQUIRED
		1.9 MM
	A 1003532452	SPACER WASHER
		AS REQUIRED
		2.0 MM
	A 1003532552	SPACER WASHER
		AS REQUIRED
		2.1 MM
	A 1003532652	SPACER WASHER
		AS REQUIRED
		2.2 MM
064	A 1003530125	SCREW COLLAR
066	A 1803530173	LOCK
		AS REQUIRED
	A 1803530273	LOCK
		AS REQUIRED
	A 1803530373	LOCK
		AS REQUIRED
	A 1803530573	LOCK
		AS REQUIRED
	A 1803530673	LOCK
		AS REQUIRED
069	A 1809940030	LOCK
072	N 000933006122	SCREW
	Repalced by: N 304017006034
072	N 304017006034	SCREW
074	A 1003530252	SPACER WASHER
		AS REQUIRED
		0.90 MM
	A 1003530452	SPACER WASHER
		AS REQUIRED
		1.00 MM
	A 1003530652	SPACER WASHER
		AS REQUIRED
		1.10 MM
	A 1003530852	SPACER WASHER
		AS REQUIRED
		1.20 MM
	A 1003531052	SPACER WASHER
		AS REQUIRED
		1.30 MM
	A 1003531252	SPACER WASHER
		AS REQUIRED
		1.40 MM
	A 1003531452	SPACER WASHER
		AS REQUIRED
		1.50 MM
076	A 0009800902	TAPERED ROLLER BEARING
079	A 1003530151	SPACER RING
		AS REQUIRED
		3.1 MM
	A 1003530251	SPACER RING
		AS REQUIRED
		3.2 MM
	A 1003530351	SPACER RING
		AS REQUIRED
		3.3 MM
	A 1003530451	SPACER RING
		AS REQUIRED
		3.4 MM
	A 1003530551	SPACER RING
		AS REQUIRED
		3.5 MM
	A 1003530651	SPACER RING
		AS REQUIRED
		3.6 MM
	A 1003530751	SPACER RING
		AS REQUIRED
		3.7 MM
	A 1003530851	SPACER RING
		AS REQUIRED
		3.8 MM
	A 1003530951	SPACER RING
		AS REQUIRED
		3.9 MM
	A 1003531051	SPACER RING
		AS REQUIRED
		4.0 MM
084	A 0009800802	TAPERED ROLLER BEARING
086	A 1003500043	SET COLLAR
088	A 0049975446	SEAL RING
091	A 1003500645	FLANGE
093	A 1003500266	GROOVED NUT
096	A 1009940144	LOCK
	A 1003501619	REAR AXLE TUBE
	Repalced by: A 1003502519
099	A 1003502519	REAR AXLE TUBE
		LEFT
103	A 1003501719	REAR AXLE TUBE
		RIGHT
106	A 1153500290	VALVE
108	A 1003570585	RUBBER MOUNTING
110	A 1869970032	SCREW PLUG
113	A 1003500480	LINE
115	N 007603030109	SEAL RING
117	N 915013025000	SCREW FITTING
120	N 000933010105	SCREW
	Repalced by: N 304017010019
120	N 304017010019	SCREW
122	N 900087010000	PLUG
125	A 1003500413	JOINT
127	A 1003500613	JOINT
129	A 0009949041	LOCK
132	A 1809810086	ROLLER
134	A 1003570052	SPACER WASHER
136	N 000472055000	LOCK RING
138	A 1003570250	BUSHING
141	A 1003570252	SPACER WASHER
		AS REQUIRED
		0.5 MM
	A 1003570352	SPACER WASHER
		AS REQUIRED
		0.6 MM
	A 1003570452	SPACER WASHER
		AS REQUIRED
		0.7 MM
	A 1003570552	SPACER WASHER
		AS REQUIRED
		0.8 MM
	A 1003570652	SPACER WASHER
		AS REQUIRED
		0.9 MM
	A 1003570752	SPACER WASHER
		AS REQUIRED
		1.0 MM
	A 1003570852	SPACER WASHER
		AS REQUIRED
		1.1 MM
	A 1003570952	SPACER WASHER
		AS REQUIRED
		1.2 MM
	A 1003571052	SPACER WASHER
		AS REQUIRED
		1.3 MM
	A 1003571152	SPACER WASHER
		AS REQUIRED
		1.4 MM
	A 1003571252	SPACER WASHER
		AS REQUIRED
		1.5 MM
145	N 000931010234	SCREW
147	N 912004010102	LOCK WASHER
149	A 1003570791	BOOT
	N 900288088003	CLAMP
		REAR AXLE TUBE
	N 900288142000	CLAMP
		REAR AXLE HOUSING
153	A 1003570901	REAR AXLE SHAFT
		LEFT
155	A 1003571101	REAR AXLE SHAFT
		RIGHT
157	A 1003570074	PIN
160	A 1809933101	SPRING
162	N 006799003202	LOCK PLATE
164	N 000635022210	SELF-ALGN. ROLLER BEARING
166	A 1003570073	LOCK
168	A 1003570026	GROOVED NUT
170	A 0029979646	SEAL RING
		INSIDE
172	A 1004230179	GASKET
174	A 1004201086	BRACKET
176	A 0029979546	SEAL RING
		OUTSIDE
179	N 000933008147	SCREW
	Repalced by: N 304017008021
179	N 304017008021	SCREW
181	N 912004008102	LOCK WASHER
183	A 1004230512	BRAKE DISC
186	A 1003570208	FLANGE
188	N 000912014008	SCREW
190	N 007980014002	LOCK WASHER
193	A 1003500155	PIN
195	A 1883510086	RUBBER RING
198	A 1889900035	SCREW
200	N 912004008102	LOCK WASHER
203	N 000934008010	NUT
	Repalced by: N 304032008006
203	N 304032008006	NUT
206	A 1003510153	SPACER TUBE
208	A 1003501532	SUPPORT
210	A 1003510242	RUBBER MOUNTING
213	A 1003510248	RUBBER MOUNTING
215	A 1883510151	SPACER RING
218	A 1883510353	SPACER TUBE
221	A 1883510073	LOCK
223	N 070852035000	NUT
227	A 1003501442	BEARING HOUSING
		LEFT
	A 1003501542	BEARING HOUSING
		RIGHT
231	N 000007006206	CYLINDRICAL PIN
235	N 000912010051	SCREW
239	N 000137010201	SPRING WASHER
243	A 0003520029	JOINT
247	A 0003380597	BOOT
	Repalced by: A 1005860033
247	A 1005860033	REPAIR KIT
251	N 000471038002	LOCK RING
255	A 1003581422	BEARING SHELL
259	A 1123570462	THRUST WASHER
		AS REQUIRED
		2.9 MM
	A 1123570562	THRUST WASHER
		AS REQUIRED
		3.0 MM
	A 1123570662	THRUST WASHER
		AS REQUIRED
		3.1 MM
	A 1123571162	THRUST WASHER
		AS REQUIRED
		3.2 MM
263	A 1003570291	BOOT
267	A 1003570491	BOOT
271	A 0009977390	LOOM TIE
		69 MM
276	A 0009977490	LOOM TIE
		88 MM
280	A 0009977590	LOOM TIE
		105 MM
	N 000084002105	SCREW
283	A 1003500406	CONTROL ARM
		LEFT
	A 1003500506	CONTROL ARM
		RIGHT
287	A 0003520029	JOINT
291	A 0003380597	BOOT
	Repalced by: A 1005860033
291	A 1005860033	REPAIR KIT
295	N 000471038002	LOCK RING
300	A 1003521165	RUBBER MOUNTING
304	N 000960020069	SCREW
307	N 000935020001	NUT
	N 000094004061	COTTER PIN
311	A 1003520028	SHACKLE
314	N 000979014001	NUT
	N 000094003226	COTTER PIN
319	A 1009900701	SCREW
323	N 912004014100	LOCK WASHER
326	N 000960020069	SCREW
330	A 1003521365	RUBBER MOUNTING
333	A 1003520267	RETAINER
337	N 000935020001	NUT
	N 000094004061	COTTER PIN
341	A 1003500193	ROD
345	N 000439016203	NUT
349	A 1003520229	JOINT
354	A 1103510743	CUP
359	A 1113510444	RUBBER BUFFER
363	A 1103510643	CUP
367	N 000936012005	NUT
	Repalced by: N 308675012000
367	N 308675012000	NUT
372	N 000934012023	NUT
	Repalced by: N 308673012002
372	N 308673012002	NUT
377	A 1009900101	SCREW
381	N 000137014201	SPRING WASHER
385	N 000936014010	NUT
	Repalced by: N 308675014000
385	N 308675014000	NUT
	Repalced by: N 308675014002
385	N 308675014002	NUT
