Transporto priemonė: A 190; VIN numerio dalis: 168032

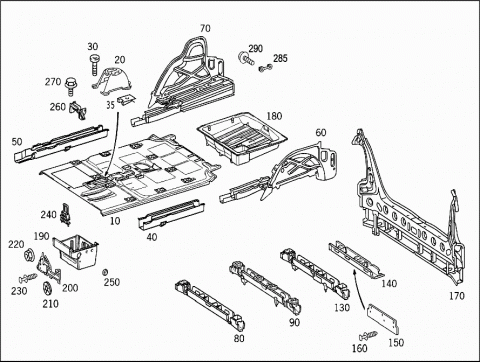

Grupė: 61 SUBSTRUCTURE - 015 FRONT FLOOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1686100160 | BOTTOM |
| Repalced by: A 1686100760 | ||
| 010 | A 1686100760 | BOTTOM |
| 010 | A 1686101060 | BOTTOM |
| 020 | A 1686103531 | CONSOLE |
| CENTER ARMREST | ||
| 030 | A 0029904212 | BOLT |
| Repalced by: N 000000001151 | ||
| 030 | N 000000001151 | HEXALOBULAR BOLT |
| MBN 10226-M8X12-8.8 | ||
| 035 | A 0049941845 | LOCK NUT |
| M8 | ||
| 040 | A 1686102510 | SIDE MEMBER |
| FLOOR,LEFT | ||
| 040 | A 1686100510 | SIDE MEMBER |
| FLOOR,LEFT | ||
| Repalced by: A 1686101710 | ||
| 040 | A 1686101710 | SIDE MEMBER |
| FLOOR,LEFT | ||
| Repalced by: A 1686102510 | ||
| 040 | A 1686101910 | SIDE MEMBER |
| FLOOR,LEFT | ||
| 050 | A 1686102610 | SIDE MEMBER |
| MAIN FLOOR,ON THE RIGHT | ||
| 050 | A 1686100610 | SIDE MEMBER |
| MAIN FLOOR,ON THE RIGHT | ||
| Repalced by: A 1686101810 | ||
| 050 | A 1686101810 | SIDE MEMBER |
| MAIN FLOOR,ON THE RIGHT | ||
| Repalced by: A 1686102610 | ||
| 050 | A 1686102310 | SIDE MEMBER |
| MAIN FLOOR,ON THE RIGHT | ||
| 060 | A 1686101561 | BOTTOM |
| LATERAL REAR LEFT | ||
| Repalced by: A 1686101961 | ||
| 060 | A 1686101961 | BOTTOM |
| LATERAL REAR LEFT | ||
| 070 | A 1686101661 | BOTTOM |
| LATERAL REAR RIGHT | ||
| Repalced by: A 1686102061 | ||
| 070 | A 1686102061 | BOTTOM |
| LATERAL REAR RIGHT | ||
| 080 | A 1686101820 | CROSS MEMBER |
| NO.1 | ||
| Repalced by: A 1686103820 | ||
| 080 | A 1686103820 | CROSS MEMBER |
| NO.1 | ||
| Repalced by: A 1686104820 | ||
| 080 | A 1686104820 | CROSS MEMBER |
| NO.1 | ||
| 090 | A 1686103920 | CROSS MEMBER |
| NO. 2 | ||
| 090 | A 1686104420 | CROSS MEMBER |
| NO. 2 | ||
| 090 | A 1686100320 | CROSS MEMBER |
| NO. 2 | ||
| Repalced by: A 1686103920 | ||
| 090 | A 1686104320 | CROSS MEMBER |
| NO. 2 | ||
| 130 | A 1686104020 | CROSS MEMBER |
| NO. 3 | ||
| 130 | A 1686100620 | CROSS MEMBER |
| NO. 3 | ||
| Repalced by: A 1686104020 | ||
| 140 | A 1686100520 | CROSS MEMBER |
| NO. 4 | ||
| Repalced by: A 1686100216 | ||
| 140 | A 1686100216 | CROSS MEMBER |
| NO. 4 | ||
| 150 | A 1686820040 | INSULATION |
| AT CROSS MEMBER, REAR AXLE | ||
| 160 | A 2309900092 | RIVET |
| 170 | A 1686102820 | CROSS MEMBER |
| REAR,INCLUDING REAR CENTER PANEL | ||
| Repalced by: A 1686103620 | ||
| 170 | A 1686103620 | CROSS MEMBER |
| REAR,INCLUDING REAR CENTER PANEL | ||
| 170 | A 1686100420 | CROSS MEMBER |
| REAR,INCLUDING REAR CENTER PANEL | ||
| Repalced by: A 1686102820 | ||
| 180 | A 1686190008 | PART NAME MISSING |
| Repalced by: A 1686190808 | ||
| 180 | A 1686190808 | SPARE WHEEL WELL |
| 190 | A 1686100194 | RECESS |
| BATTERY | ||
| Repalced by: A 1686100594 | ||
| 190 | A 1686100594 | BATTERY RECESS |
| BATTERY | ||
| Repalced by: A 1686100694 | ||
| 190 | A 1686100694 | RECESS |
| BATTERY | ||
| 200 | A 1686160074 | PARTITION PANEL |
| IN FRONT OF BATTERY CASE | ||
| 210 | A 0009940648 | FUSE |
| MOUNTING PARTITION PANEL | ||
| Repalced by: N 912010006000 | ||
| 210 | N 912010006000 | CIRCLIP |
| MOUNTING PARTITION PANEL | ||
| 6 MM | ||
| 220 | A 2019900050 | PLASTIC NUT |
| MOUNTING PARTITION PANEL | ||
| 230 | A 2309900092 | RIVET |
| MOUNTING PARTITION PANEL | ||
| 240 | A 1686103436 | BRACKET |
| BATTERY | ||
| 250 | A 0009973620 | EXPANSION PLUG |
| BATTERY | ||
| 25 MM | ||
| 260 | A 1686200132 | CLAMP |
| CENTRAL CONSOLE | ||
| 260 | A 1686200232 | CLAMP |
| CENTRAL CONSOLE | ||
| 270 | N 000000000276 | HEXALOBULAR BOLT |
| CLAMP TO SUBSTRUCTURE | ||
| M8X20 | ||
| 270 | N 000000000276 | HEXALOBULAR BOLT |
| CLAMP TO SUBSTRUCTURE | ||
| M8X20 | ||
| 285 | A 1683100060 | SHACKLE |
| CROSSBEAM TO REAR LONGITUDINAL MEMB. | ||
| 290 | N 910105010011 | HEXAGON HEAD BOLT |
| CROSSBEAM TO REAR LONGITUDINAL MEMB. | ||
| M10X40 | ||
| 310 | A 1686190138 | COVER |
| BELOW FRONT AND REAR DOORS,LEFT | ||
| 310 | A 1686193938 | COVER |
| BELOW FRONT AND REAR DOORS,LEFT | ||
| 310 | A 1686100208 | COVER |
| BELOW RIGHT FRONT AND REAR DOORS | ||
| 310 | A 1686101608 | COVER |
| BELOW RIGHT FRONT AND REAR DOORS | ||
| 320 | A 0009887725 | TREENAIL |
| COVERING TO CROSS MEMBER | ||
| 320 | A 0009887725 | TREENAIL |
| COVERING TO CROSS MEMBER | ||
| 325 | A 0029948045 | FUSE |
| COVERING TO CROSS MEMBER | ||
| 330 | A 1249900492 | EXPANSION RIVET |
| COVER TRIM AT SIDE WALL, LEFT | ||
| 6.5X18 | ||
| 330 | A 1249900492 | EXPANSION RIVET |
| COVER TRIM AT SIDE WALL RIGHT | ||
| 6.5X18 | ||
| 340 | A 0049944545 | CLIP-TYPE NUT |
| COVER SIDE PANEL ON FRONT WHEELHOUSE COVER LEFT | ||
| 340 | A 0029943945 | SHEET METAL NUT |
| COVER SIDE PANEL ON FRONT WHELLHOUSE COVER RIGHT | ||
| 340 | A 0049944545 | CLIP-TYPE NUT |
| COVER SIDE PANEL ON FRONT WHEELHOUSE COVER LEFT | ||
| 350 | A 1686191138 | COVER |
| (BOLT COVER, DOOR-SILL PANEL, LEFT) | ||
| 350 | A 1686191138 | COVER |
| (BOLT COVER, DOOR-SILL PANEL, LEFT) | ||
| 350 | A 1686191138 | COVER |
| (BOLT COVER, DOOR-SILL PANEL, RIGHT) | ||
| 350 | A 1686191138 | COVER |
| (BOLT COVER, DOOR-SILL PANEL, RIGHT) | ||
| 355 | A 1689900136 | BOLT |
| COVERING TO BRACKET | ||
| 4.8X19 | ||
| 355 | A 1239900136 | BOLT |
| AT COVERING | ||
| 4.8X19 | ||
| 360 | A 1686100636 | BRACKET |
| COVERING TO CROSS MEMBER | ||
| Repalced by: A 1686190814 | ||
| 360 | A 1686190814 | BRACKET |
| COVERING TO CROSS MEMBER | ||
| 365 | A 1686190096 | EDGE GUARD |
| BRAKE CABLE TO CROSS MEMBER | ||
| 370 | A 0009887725 | TREENAIL |
| COVERING TO CROSS MEMBER | ||
| 380 | A 1686190938 | COVER |
| REAR LEFT FLOOR | ||
| 380 | A 1686191338 | COVER |
| REAR | ||
| 390 | A 1686191038 | COVER |
| REAR RIGHT FLOOR | ||
| 410 | A 2019900050 | PLASTIC NUT |
| COVERING TO SIDE MEMBER LEFT | ||
| 410 | A 2019900050 | PLASTIC NUT |
| COVER TO LONGITUDINAL MEMBER, RIGHT | ||
| 420 | A 1686100108 | COVER |
| LATERAL INSIDE LEFT | ||
| 420 | A 1686100308 | COVER |
| LATERAL INSIDE LEFT | ||
| 420 | A 1686101708 | COVER |
| LATERAL INSIDE LEFT | ||
| 420 | A 1686101908 | COVER |
| LATERAL INSIDE LEFT | ||
| 425 | A 1089870540 | RUBBER BUMPER |
| AT COVERING | ||
| 430 | A 1686100808 | COVER |
| RIGHT FRONT FLOOR | ||
| 430 | A 1686101508 | COVER |
| RIGHT FRONT FLOOR | ||
| 440 | A 0039947245 | FUSE |
| 450 | A 1686100008 | COVER |
| REAR RIGHT FLOOR | ||
| 460 | A 0009887725 | TREENAIL |
| REAR LEFT FLOOR | ||
| 470 | A 1689900136 | BOLT |
| FRONT COVERING TO REAR COVERING | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVER TRIM AT SIDE WALL, LEFT | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVER TRIM AT SIDE WALL RIGHT | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVERING TO SPARE WHEEL WELL,FRONT | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVER TRIM AT FRONT LEFT FENDER BRACKET | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVER TRIM AT FRONT RIGHT FENDER BRACKET | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| BRACKET TO CROSS MEMBER | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVERING TO CROSS MEMBER | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVERING TO BATTERY RECESS | ||
| 4.8X19 | ||
| 470 | A 1689900136 | BOLT |
| COVERING TO COVERING | ||
| 4.8X19 | ||
| 480 | A 0009887725 | TREENAIL |
| COVER TRIM AT SIDE WALL, LEFT | ||
| 480 | A 0009887725 | TREENAIL |
| COVER TRIM AT SIDE WALL RIGHT | ||
| 480 | A 0009887725 | TREENAIL |
| COVER TRIM AT FRONT RIGHT FENDER BRACKET | ||
| 480 | A 0009887725 | TREENAIL |
| COVER TRIM AT FRONT LEFT FENDER BRACKET | ||
| 480 | A 0009887725 | TREENAIL |
| BRACKET TO CROSS MEMBER | ||
| 480 | A 0009887725 | TREENAIL |
| COVERING TO CROSS MEMBER | ||
| 490 | A 0009887725 | TREENAIL |
| COVER SIDE PANEL ON FRONT WHELLHOUSE COVER | ||
| 500 | A 1686102108 | COVER |
| JACK TUBE REAR LEFT | ||
| 500 | A 1686102208 | COVER |
| JACK TUBE REAR RIGHT | ||
