Transporto priemonė: A 190; VIN numerio dalis: 168132

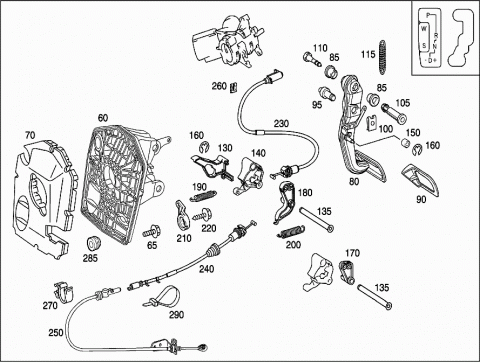

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 060 | A 1682900249 | PEDAL PLATE |
| Repalced by: A 1682900649 | ||
| 060 | A 1682900649 | PLATE |
| 065 | N 910105006035 | HEXAGON HEAD BOLT |
| PEDAL PLATE | ||
| M6X30-10.9 | ||
| 070 | A 1682940015 | SOUNDPROOFING |
| 080 | A 1682901718 | BRAKE PEDAL |
| 085 | A 1242920050 | BUSHING |
| 090 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 090 | A 1702900182 | PAD |
| BRAKE PEDAL | ||
| 090 | A 1702900182 | PAD |
| BRAKE PEDAL | ||
| 090 | A 1683000182 | PAD |
| BRAKE PEDAL | ||
| 090 | A 1683000182 | PAD |
| BRAKE PEDAL | ||
| 095 | A 1682920174 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 100 | N 912002008003 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 8 MM | ||
| 105 | A 1682910374 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | A 1682910055 | PLUG |
| 115 | A 1689930010 | SPRING |
| BRAKE PEDAL | ||
| 130 | A 1682920031 | LEVER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 130 | A 1682920331 | LEVER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 135 | A 1682940074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 140 | A 1682920040 | BRACKET |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 140 | A 1682920340 | BRACKET |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 150 | A 1242920235 | ROLLER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 150 | A 1242920235 | ROLLER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 160 | N 006799005002 | CIRCLIP |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 160 | N 006799005002 | CIRCLIP |
| SHIFT LOCK LEVER TO BRACKET | ||
| 170 | A 1682920131 | LEVER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 180 | A 1682920431 | LEVER |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 190 | A 2109930610 | SPRING |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 190 | A 2109930610 | SPRING |
| BRAKE PEDAL SENSITIVE PARKING SHIFT LOCK | ||
| 200 | A 1682920187 | SPRING |
| FROM LOCKING TO RELEASE LEVER | ||
| 210 | A 1682920140 | BRACKET |
| TENSION SPRING TO PEDAL BEARING BRACKET | ||
| 220 | A 2029900236 | SHEET METAL SCREW |
| TENSION SPRING TO PEDAL BEARING BRACKET | ||
| 5X16 | ||
| 230 | A 1682900585 | CABLE |
| PEDAL ASSEMBLY TO STEERING LOCK | ||
| 230 | A 1682902085 | CABLE |
| PEDAL ASSEMBLY TO STEERING LOCK | ||
| 240 | A 1682901185 | CABLE |
| TO PEDALS | ||
| 250 | A 1682900885 | CABLE |
| TO TRANSMISSION | ||
| 250 | A 1682901985 | CABLE |
| TO TRANSMISSION | ||
| 260 | N 912007006001 | CLIP |
| CONTROL CABLE TO STEERING LOCK | ||
| 270 | A 1689880678 | CLIP |
| CABLE TO OIL FILLER PIPE | ||
| 285 | A 1689870445 | PLUG |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 290 | A 0049979890 | CABLE TIE |
| 3.4 X 375 MM | ||
