Transporto priemonė: A 200 TURBO; VIN numerio dalis: 169334

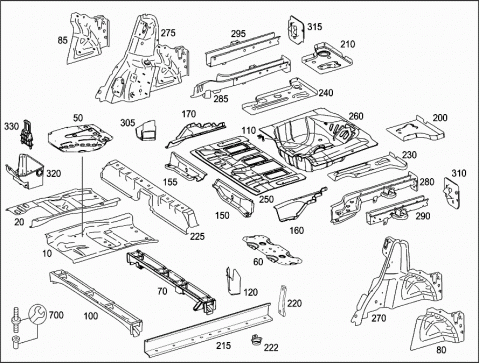

Grupė: 61 SUBSTRUCTURE - 015 FRONT FLOOR

#	Kodas	Pavadinimas
010	A 1696101360	MAIN FLOOR
		FRONT LEFT
020	A 1696101460	MAIN FLOOR
		FRONT RIGHT
050	A 1696160816	REINFORCEMENT
		DRIVER'S SEAT
060	A 1696160916	REINFORCEMENT
		REAR SEAT BENCH
070	A 1696101020	CROSS MEMBER
		BEHIND DRIVER'S SEAT
	Repalced by: A 1696103520
070	A 1696103520	CROSS MEMBER
		BEHIND DRIVER'S SEAT
080	A 1696300769	WHEELHOUSE
		LEFT
085	A 1696300869	WHEELHOUSE
		RIGHT
100	A 1696102220	CROSS MEMBER
		BELOW FRONT SEATS
110	A 1246183331	CONSOLE
		SPARE WHEEL
120	A 1696100036	BRACKET
		FUEL TANK
150	A 1696120325	REINFORCEMENT
		LEFT
155	A 1696120425	REINFORCEMENT
		RIGHT
160	A 1696180530	END PIECE
		LEFT
170	A 1696180630	END PIECE
		RIGHT
200	A 1696180330	END PIECE
		LEFT
210	A 1696180430	END PIECE
		RIGHT
215	A 1696103110	SIDE MEMBER
		CENTRAL LEFT
215	A 1696103210	SIDE MEMBER
		CENTRAL RIGHT
220	A 1696110139	END PIECE
		LEFT
220	A 1696110239	END PIECE
		RIGHT
222	A 1696300031	CONSOLE
		JACK TAKE-UP DEVICE
225	A 1696102320	CROSS MEMBER
		UNDERNEATH REAR SEAT
230	A 1696100159	BOTTOM
		LEFT OUTSIDE REAR
240	A 1696100259	BOTTOM
		RIGHT OUTSIDE REAR
250	A 1696101461	BOTTOM
		REAR
260	A 1696100375	SPARE WHEEL WELL
270	A 1696104731	CONSOLE
		REAR INSIDE LEFT WHEELHOUSE
275	A 1696104831	CONSOLE
		REAR INSIDE RIGHT WHEELHOUSE
280	A 1696102910	SIDE MEMBER
		LEFT
285	A 1696103010	SIDE MEMBER
		RIGHT
290	A 1696100515	SIDE MEMBER
		LEFT
295	A 1696100615	SIDE MEMBER
		RIGHT
305	A 1696100636	BRACKET
		FUEL TANK
310	A 1696103931	CONSOLE
		LEFT
315	A 1696104031	CONSOLE
		RIGHT
320	A 1696100275	BATTERY RECESS
330	A 1696102136	BRACKET
		CROSS MEMBER
400	A 1696100114	CROSS MEMBER
		REAR END,WITH SEALS
400	A 1693100037	CROSS MEMBER
		WITH DETACHABLE BALL HEAD
	Repalced by: A 1693100137
400	A 1693100137	CROSS MEMBER
		WITH DETACHABLE BALL HEAD
	Repalced by: A 1693100237
400	A 1693100237	CROSS MEMBER
		WITH DETACHABLE BALL HEAD
400	A 1693100337	CROSS MEMBER
		WITH PIVOTING BALL HEAD
410	N 000000003275	NUT
		CROSS MEMBER
		M10
420	N 910105010009	HEXAGON HEAD BOLT
		CROSS MEMBER
		M10X25
450	A 2019900050	PLASTIC NUT
		MOUNTING, UNDER-BODY PANEL
460	A 0019846529	HEX. ROUND SCREWS
		MOUNTING, UNDER-BODY PANEL
		M5X20
460	A 1684920171	BOLT
		MOUNTING, UNDER-BODY PANEL
		M8X24
480	A 1696103308	COVER
		TUNNEL
500	A 1696100508	COVER
		FLOOR
500	A 1696100508	COVER
		FLOOR
500	A 1696103508	COVER
		FLOOR
510	A 0009887725	TREENAIL
		COVERING TO FLOOR
520	A 2019900050	PLASTIC NUT
		MOUNTING, UNDER-BODY PANEL
530	A 0019846529	HEX. ROUND SCREWS
		ON RIGHT COVERING
		M5X20
540	A 0019846529	HEX. ROUND SCREWS
		SPARE WHEEL WELL COVERING
		M5X20
545	A 1159904640	WASHER
		SPARE WHEEL WELL COVERING
550	A 1696100408	COVER
		BELOW MAIN FLOOR, FRONT RIGHT
560	A 2019900050	PLASTIC NUT
		COVERING FRONT RIGHT
560	A 2019900050	PLASTIC NUT
		SPARE WHEEL WELL COVERING
562	A 2109900150	HEXAGON NUT W COLLAR
		SPARE WHEEL WELL COVERING
		5 MM
565	A 1696103608	COVER
		SPARE WHEEL WELL
565	A 1696103608	COVER
		SPARE WHEEL WELL
565	A 1696103808	COVER
		SPARE WHEEL WELL
565	A 1696103808	COVER
		SPARE WHEEL WELL
570	A 0009887725	TREENAIL
		SPARE WHEEL WELL COVERING
575	A 0019846529	HEX. ROUND SCREWS
		SPARE WHEEL WELL COVERING
		M5X20
580	A 1159904640	WASHER
		SPARE WHEEL WELL COVERING
590	A 1684920171	BOLT
		SPARE WHEEL WELL COVERING
		M8X24
600	A 1696191438	COVER
		SPARE WHEEL WELL
605	A 0019906036	SHEET METAL SCREW
		FASTENING FOR LINING
		4.8X19
640	A 1696190114	BRACKET
650	A 2019900050	PLASTIC NUT
		BRACKET
660	A 0019846529	HEX. ROUND SCREWS
		BRACKET
		M5X20
665	A 1159904640	WASHER
		BRACKET
670	A 1696103108	COVER
		LEFT
	Repalced by: A 1696180178
670	A 1696180178	COVER
		LEFT
670	A 1696103208	COVER
		LEFT AND RIGHT REAR SIDE MEMBERS
680	A 0009982321	CAP
		COVER AT SPARE WHEEL RECESS
700	A 0009901210	BOLT
		REPAIR SOLUTION FOR RUPTURED WELDED PINS
