Transporto priemonė: CLK 200 KOMPRESSOR; VIN numerio dalis: 209441

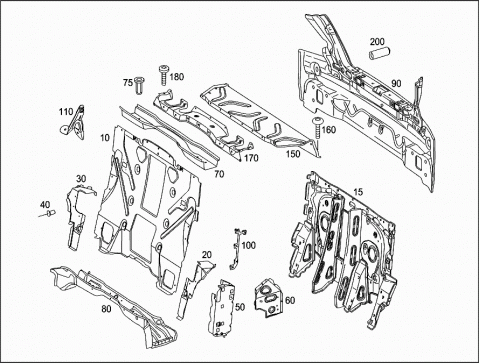

Grupė: 64 REAR END - 030 FOLDING TOP CASE,REAR BODY PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2096400560 | REAR PANEL |
| 015 | A 2096400760 | REAR PANEL |
| TOP | ||
| 020 | A 2096400931 | CONSOLE |
| LEFT | ||
| 030 | A 2096401031 | CONSOLE |
| RIGHT | ||
| 040 | A 0039903697 | RIVET |
| CONSOLE MOUNTING, LEFT | ||
| 040 | A 0039903697 | RIVET |
| CONSOLE MOUNTING, RIGHT | ||
| 050 | A 2096400548 | END PIECE |
| LEFT | ||
| 050 | A 2096400648 | END PIECE |
| RIGHT | ||
| 060 | A 2096400948 | END PIECE |
| LEFT | ||
| 060 | A 2096401048 | END PIECE |
| RIGHT | ||
| 070 | A 2096460301 | CENTRAL PART |
| TOP INSIDE | ||
| 075 | A 0019909858 | NUT |
| 075 | N 000000003627 | RIVET NUT |
| 6X23,5 | ||
| 080 | A 2096400114 | CROSS MEMBER |
| 090 | A 2096400671 | REAR END CENTER ASSEMBLY |
| BOTTOM | ||
| 090 | A 2096400571 | PANELLING |
| REAR BODY PANEL,BOTTOM | ||
| Repalced by: A 2096400671 | ||
| 100 | A 2096400151 | BRACKET |
| LEFT | ||
| 100 | A 2096400251 | BRACKET |
| RIGHT | ||
| 110 | A 2096401731 | CONSOLE |
| LEFT | ||
| 110 | A 2096401831 | CONSOLE |
| RIGHT | ||
| 150 | A 2096460232 | COVER |
| 160 | N 000000001476 | HEXALOBULAR BOLT |
| AT COVERING | ||
| M6X16 | ||
| 170 | A 2096462516 | REINFORCEMENT |
| 180 | N 000000001146 | HEXALOBULAR BOLT |
| AT REINFORCEMENT | ||
| M6X16 | ||
| Repalced by: N 000000001475 | ||
| 180 | N 000000001475 | HEXALOBULAR BOLT |
| AT REINFORCEMENT | ||
| M6X12 | ||
| 180 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 200 | A 2097780333 | COVER |
| PIN TO PANEL | ||
| 200 | A 2097780333 | COVER |
| PIN TO PANEL | ||
