Transporto priemonė: CLK 200 KOMPRESSOR; VIN numerio dalis: 209441

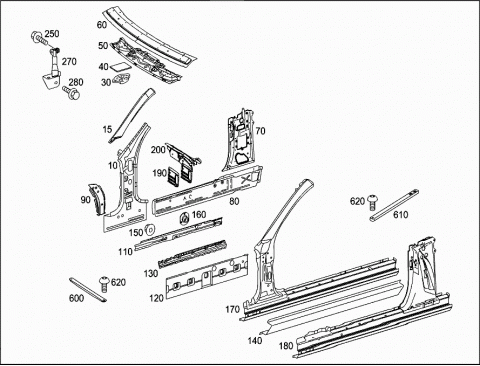

Grupė: 63 SIDE PANELS - 080 ROOF FRONT RAIL & SIDE PANELS ON CABRIO (CONVERTIBLE)
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2096301110 | PILLAR |
| LEFT | ||
| 010 | A 2096301210 | PILLAR |
| RIGHT | ||
| 015 | A 2096372109 | PANELLING |
| ON LEFT A-PILLAR | ||
| 015 | A 2096372209 | PANELLING |
| ON RIGHT A-PILLAR | ||
| 030 | A 2026260711 | PLATE |
| LEFT | ||
| 030 | A 2026260711 | PLATE |
| RIGHT | ||
| 040 | A 2206390497 | SEAL |
| LEFT | ||
| 040 | A 2206390497 | SEAL |
| RIGHT | ||
| 050 | A 2096500001 | ROOF RAIL |
| FRONT INSIDE | ||
| 060 | A 2096510701 | ROOF RAIL |
| FRONT OUTSIDE | ||
| 070 | A 2096300911 | PILLAR |
| B-PILLAR,INSIDE LEFT | ||
| 070 | A 2096300811 | PILLAR |
| B-PILLAR,INSIDE RIGHT | ||
| 080 | A 2096300140 | SUPPORT |
| LEFT | ||
| 080 | A 2096300240 | SUPPORT |
| RIGHT | ||
| 090 | A 2036360138 | SUPPORT |
| LEFT | ||
| 090 | A 2036360238 | SUPPORT |
| RIGHT | ||
| 110 | A 2096304116 | REINFORCEMENT |
| SIDE MEMBER,INSIDE LEFT | ||
| 110 | A 2096304216 | REINFORCEMENT |
| SIDE MEMBER,INSIDE RIGHT | ||
| 120 | A 2096376116 | REINFORCEMENT |
| LEFT SIDE MEMBER | ||
| 120 | A 2096376216 | REINFORCEMENT |
| RIGHT SIDE MEMBER | ||
| 130 | A 2096371309 | PANELLING |
| LEFT | ||
| 130 | A 2096371409 | PANELLING |
| RIGHT | ||
| 140 | A 2096376416 | REINFORCEMENT |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 150 | A 0009844121 | RIVETED NUT |
| M6 | ||
| 160 | A 2029840122 | SHEET METAL NUT |
| SIDE MEMBER,INSIDE LEFT | ||
| 7/16-20 UNF-2B | ||
| 160 | A 2029840122 | SHEET METAL NUT |
| AT SIDE MEMBER INTERIOR RIGHT | ||
| 7/16-20 UNF-2B | ||
| 170 | A 2096301310 | PILLAR |
| OUTSIDE LEFT A-PILLAR | ||
| 170 | A 2096301410 | PILLAR |
| OUTSIDE RIGHT A-PILLAR | ||
| 180 | A 2096301311 | PILLAR |
| B-PILLAR OUSIDE LEFT | ||
| 180 | A 2096301411 | PILLAR |
| B-PILLAR OUTSIDE RIGHT | ||
| 190 | A 2096364516 | REINFORCEMENT |
| B-PILLAR ON THE LEFT | ||
| 190 | A 2096364616 | REINFORCEMENT |
| B-PILLAR ON THE RIGHT | ||
| 200 | A 2096300128 | STRUT |
| LEFT | ||
| 200 | A 2096300228 | STRUT |
| RIGHT | ||
| 250 | N 000000001479 | HEXALOBULAR BOLT |
| AT REINFORCEMENT | ||
| M6X30 | ||
| 270 | A 2096303916 | REINFORCEMENT |
| LEFT | ||
| 270 | A 2096304016 | REINFORCEMENT |
| RIGHT | ||
| 280 | N 000000001476 | HEXALOBULAR BOLT |
| REINFORCEMENT TO STRUT | ||
| M6X16 | ||
| Repalced by: N 000000001475 | ||
| 280 | N 000000001475 | HEXALOBULAR BOLT |
| REINFORCEMENT TO STRUT | ||
| M6X12 | ||
| 290 | A 0039895885 | SEALING CORD |
| ON LEFT REAR FENDER | ||
| 290 | A 0039895885 | SEALING CORD |
| TO FENDER REAR RIGHT | ||
| 300 | A 2096301521 | REAR FENDER |
| LEFT | ||
| Repalced by: A 2096301721 | ||
| 300 | A 2096301721 | REAR FENDER |
| LEFT | ||
| 300 | A 2096301621 | REAR FENDER |
| RIGHT | ||
| Repalced by: A 2096301821 | ||
| 300 | A 2096301821 | REAR FENDER |
| RIGHT | ||
| 310 | A 2096300560 | BOTTOM |
| REAR LEFT | ||
| Repalced by: A 2096300760 | ||
| 310 | A 2096300760 | BOTTOM |
| REAR LEFT | ||
| 310 | A 2096300060 | BOTTOM |
| REAR RIGHT | ||
| 320 | A 2036371514 | BRACKET |
| REAR LEFT AND RIGHT | ||
| 330 | A 2096300369 | WHEELHOUSE |
| REAR LEFT | ||
| 330 | A 2096300569 | WHEELHOUSE |
| REAR OUTSIDE LEFT | ||
| 330 | A 2096300469 | WHEELHOUSE |
| REAR RIGHT | ||
| 330 | A 2096300669 | WHEELHOUSE |
| REAR OUTSIDE RIGHT | ||
| 340 | A 2036372936 | END PIECE |
| REAR LEFT | ||
| 340 | A 2096371636 | STRIKING PLATE |
| REAR RIGHT | ||
| 350 | A 2038300142 | FLAP |
| BREATHER TO REAR FENDER IN BUMPER AREA LEFT | ||
| 350 | A 2038300142 | FLAP |
| BREATHER TO REAR FENDER IN BUMPER AREA RIGHT | ||
| 360 | A 1718200975 | ANTENNA |
| 360 | A 1718201075 | ANTENNA |
| REAR FLOOR ASSEMBLY RIGHT | ||
| 370 | A 2096300928 | STRUT |
| LEFT | ||
| 370 | A 2096301028 | STRUT |
| RIGHT | ||
| 400 | A 2096900330 | COVER |
| LEFT REAR WHEELHOUSE | ||
| 400 | A 2096900430 | COVER |
| RIGHT REAR WHEELHOUSE | ||
| 400 | A 2096980630 | COVER |
| RIGHT REAR WHEELHOUSE | ||
| Repalced by: A 2096900430 | ||
| 410 | A 2036982130 | COVER |
| REAR LEFT | ||
| 410 | A 2036982230 | COVER |
| REAR BOTTOM RIGHT | ||
| 410 | A 2096980730 | COVER |
| REAR RIGHT | ||
| 420 | A 2096910192 | INSULATION |
| REAR LEFT | ||
| Repalced by: A 2096980022 | ||
| 420 | A 2096980022 | SOUNDPROOFING |
| REAR LEFT | ||
| 420 | A 2096910192 | INSULATION |
| REAR RIGHT | ||
| Repalced by: A 2096980022 | ||
| 420 | A 2096980022 | SOUNDPROOFING |
| REAR RIGHT | ||
| 430 | A 1249900492 | EXPANSION RIVET |
| TO BUMPER LEFT | ||
| 6.5X18 | ||
| 430 | A 1249900492 | EXPANSION RIVET |
| TO BUMPER RIGHT | ||
| 6.5X18 | ||
| 440 | A 2036980128 | SPACER |
| TO COVER LEFT, REAR | ||
| 440 | A 2036980128 | SPACER |
| TO COVER RIGHT, REAR | ||
| 500 | A 0009956144 | CLAMP |
| TANK FRONT BRACING | ||
| 6.5 X 14.5 MM | ||
| 510 | A 2097500406 | FLAP |
| FUEL FILLER NECK | ||
| 515 | A 1239910007 | PIN |
| BEARING AT REINFORCEMENT | ||
| 520 | A 0009949645 | CLIP |
| BEARING AT REINFORCEMENT | ||
| 525 | A 1699910070 | SPRING CLAMP |
| FILLER NECK FLAP | ||
| 530 | N 000000001475 | HEXALOBULAR BOLT |
| FLAP TO RIGHT REAR FENDER | ||
| M6X12 | ||
| 530 | N 910143006000 | HEXALOBULAR BOLT |
| FLAP TO RIGHT REAR FENDER | ||
| M6X12 | ||
| 535 | A 2106390194 | HOSE |
| TANK FILLER NECK DRAIN PIPE | ||
| 540 | A 0004760440 | CLAMP |
| TANK FILLER NECK DRAIN PIPE | ||
| 18 MM | ||
| 550 | A 2038201997 | ENGINE |
| TANK FLAP | ||
| 560 | A 2038200034 | GUIDE SLEEVE |
| Repalced by: A 2108000079 | ||
| 560 | A 2108000079 | GUIDE |
| 570 | A 2098200914 | BRACKET |
| REAR RIGHT | ||
| 580 | A 0019846329 | HEXALOBULAR BOLT |
| AT BRACKET | ||
| M5X12 | ||
| 600 | A 2096190134 | STRUT |
| FRONT LEFT AND RIGHT | ||
| 610 | A 2096190334 | STRUT |
| REAR LEFT | ||
| 610 | A 2096190934 | STRUT |
| REAR LEFT | ||
| 620 | A 0019904312 | BOLT |
| FASTENING STRUT | ||
| Repalced by: A 0079905504 | ||
| 620 | A 0079905504 | BOLT |
| FASTENING STRUT | ||
| 755 | A 2105458328 | PLUG HOUSING |
| MOTOR CENTER LOCKING TANK FLAP | ||
| 2-PIN JPT;M14/10 | ||
| 953 | A 0115458126 | CONTACT SPRING |
| 0.5-1.0 MM2 JPT | ||
