Transporto priemonė: CLK 320 USA; VIN numerio dalis: 208365

Grupė: 30 CONTROL

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FOR KICK-DOWN SWITCH, SEE GROUP:
		54

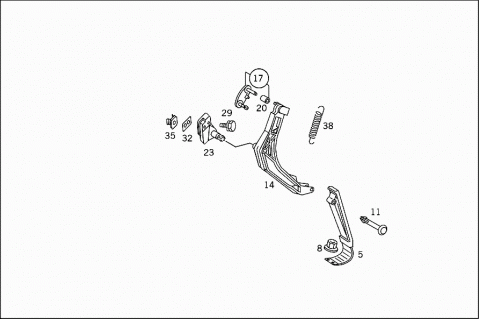

005	A 1293000004	ACCELERATOR PEDAL
	Repalced by: A 2203000204
005	A 2203000204	ACCELERATOR PEDAL
008	A 2103010072	NUT
		ACCELERATOR PEDAL TO FIRE WALL
011	A 1403010374	PIN
		ACCELERATOR PEDAL TO LEVER
014	A 2023011520	LEVER
		ACCELERATOR PEDAL
017	A 1243001625	LEVER
020	N 040621005200	INSULATING HOSE
		5 MM
023	A 1293010218	BEARING
		ACCELERATOR PEDAL BEARING
029	N 914005006046	COMBINATION BOLT
		BEARING TO FIRE WALL
032	A 1243010080	GASKET
		BEARING TO FIRE WALL
035	A 0019906791	NUT RETAINER
		BEARING TO FIRE WALL
038	A 2029931410	SPRING
		ACCELERATOR PEDAL

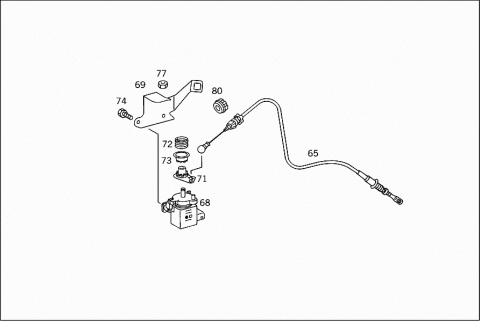

065	A 2083000230	WIRE CABLE
	Repalced by: A 2083000430
065	A 2083000430	WIRE CABLE
065	A 2083000330	WIRE CABLE
	Repalced by: A 2083000530
065	A 2083000530	WIRE CABLE
065	A 2023001530	WIRE CABLE
065	A 2023001630	WIRE CABLE
068	A 0115428717	SENDER UNIT
	Repalced by: A 0125423317
068	A 0125423317	SENDER UNIT
069	A 2083010140	BRACKET
	Repalced by: A 2103011540
069	A 2103011540	BRACKET
071	A 2083000228	LEVER
	Repalced by: A 2103001128
071	A 2103001128	LEVER
072	A 1409930620	SPRING
	Repalced by: A 1689930320
072	A 1689930320	SPRING
073	A 1683010043	CLAMPING PIECE
	Repalced by: A 1403010043
073	A 1403010043	CLAMPING PIECE
074	N 304017006016	SCREW
077	N 913023006001	NUT
080	A 2013010285	RUBBER BUFFER
		WIRE CABLE TO FIRE WALL
