Transporto priemonė: CLK 320 USA; VIN numerio dalis: 208365

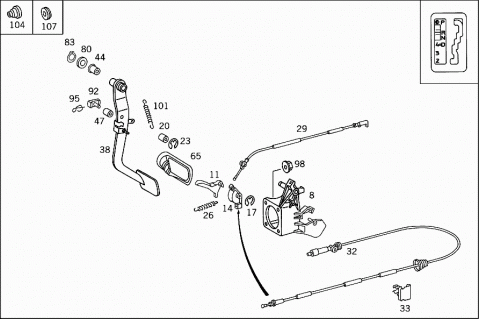

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 2102900619 | BEARING BRACKET |
| 008 | A 2022901619 | BEARING BRACKET |
| 011 | A 2022920231 | LEVER |
| 014 | A 2022920331 | LEVER |
| 017 | N 006799005002 | LOCK PLATE |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 020 | A 1242920235 | ROLLER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 023 | N 006799005002 | LOCK PLATE |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 026 | A 2109930610 | SPRING |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 029 | A 2102900785 | CABLE |
| STEERING LOCK | ||
| 032 | A 2022900685 | CABLE |
| TRANSMISSION | ||
| 033 | A 2029883378 | CLIP |
| CABLE ON TUNNEL | ||
| 038 | A 2022902318 | BRAKE PEDAL |
| 038 | A 2022902318 | BRAKE PEDAL |
| 044 | A 1242920050 | BUSHING |
| 047 | A 1262920050 | BUSHING |
| 065 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 080 | A 1152910076 | WASHER |
| PEDAL TO BEARING BRACKET | ||
| 083 | N 000471016001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 092 | A 1242920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 092 | A 2102920474 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| TO A 0054304430 | ||
| 095 | N 912011008000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 098 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 101 | A 1409930510 | SPRING |
| BRAKE PEDAL | ||
| 104 | A 0009973620 | EXPANSION PLUG |
| PIPE LINE THRU FIRE WALL | ||
| 107 | A 1109870744 | EXPANSION PLUG |
