Transporto priemonė: CLK 320 USA; VIN numerio dalis: 208365

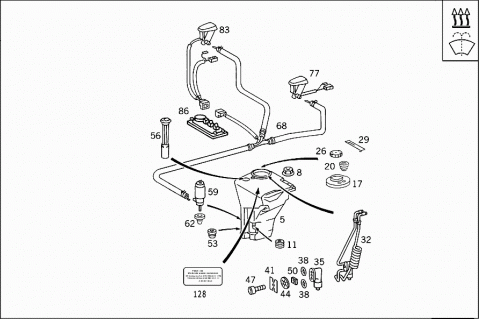

Grupė: 86 WINDSHIELD WASHER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2088690120 | RESERVOIR |
| PANE WASHER,HEADLAMP WIPER/WASHER | ||
| 008 | A 2019900050 | PLASTIC NUT |
| LIQUID TANK TO WHEELHOUSE | ||
| 011 | A 1159970681 | GROMMET |
| LIQUID TANK TO WHEELHOUSE | ||
| 017 | A 2028690008 | COVERING |
| Repalced by: A 2108690308 | ||
| 017 | A 2108690308 | COVERING |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 020 | A 1249975081 | GROMMET |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 026 | A 1238690172 | FILLER CAP |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 029 | A 1268690214 | HOLDER |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 032 | A 2028300261 | HEATER UNIT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 035 | A 1268300784 | VALVE |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 038 | A 1409970645 | SEAL RING |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 041 | A 1248350132 | CONNECTION |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 044 | N 006797006247 | TOOTHED WASHER |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 047 | N 000912006126 | SCREW |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 050 | A 1269901152 | NUT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 053 | A 2109870045 | LOCKING CAP |
| TO PLUG THE HOLE FOR HEADLAMP CLEANING DEVICE IN RESERVOIR | ||
| 056 | A 2105400045 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 059 | A 2108690821 | PUMP |
| PANE WASHER | ||
| 059 | A 2108690921 | PUMP |
| PANE WASHER | ||
| 062 | A 1239973681 | GROMMET |
| PANE WASHER | ||
| 068 | A 2088600292 | HOSE |
| PANE WASHER; HEATED | ||
| 077 | A 2088601047 | NOZZLE |
| Repalced by: A 2088601247 | ||
| 077 | A 2088601247 | NOZZLE |
| ENGINE HOOD, LEFT | ||
| 083 | A 2088600147 | NOZZLE |
| Repalced by: A 2088601147 | ||
| 083 | A 2088601147 | NOZZLE |
| ENGINE HOOD,RIGHT | ||
| 086 | A 1268201111 | PLATE |
| ENGINE HOOD BRACKET,REAR | ||
| 087 | A 2108690321 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 087 | A 2108690621 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 087 | A 2108691121 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 088 | A 2109970081 | GROMMET |
| HEADLAMP WIPER/WASHER | ||
| 089 | A 2088600547 | DRIVE |
| LEFT | ||
| 092 | A 2088600647 | DRIVE |
| RIGHT | ||
| 095 | A 2088600347 | NOZZLE |
| LEFT | ||
| 098 | A 2088600447 | NOZZLE |
| RIGHT | ||
| 101 | A 2029900121 | OVAL HEAD SCREW W.COLLAR |
| HEADLAMP WIPER/WASHER | ||
| 104 | N 914138004006 | SCREW |
| HEADLAMP WIPER/WASHER | ||
| 107 | A 1708690094 | HOSE |
| LEFT | ||
| 110 | A 2108690794 | HOSE |
| Repalced by: A 2108690594 | ||
| 110 | A 2108690594 | HOSE |
| CENTRAL | ||
| 113 | A 1708690094 | HOSE |
| RIGHT | ||
| 116 | A 0008691222 | DISTRIBUTOR |
| 117 | A 2108690224 | CONNECTOR |
| 119 | A 2088690024 | CONNECTOR |
| 122 | A 0059974990 | HOSE CLAMP |
| 125 | A 0059976090 | LOOM TIE |
| Repalced by: A 0059976290 | ||
| 125 | A 0059976290 | CABLE STRAP |
| HEADLAMP WIPER/WASHER | ||
| 128 | A 2028176820 | GUIDE SIGN |
| PANE WASHER RESERVOIR | ||
