Transporto priemonė: CL 500; VIN numerio dalis: 215375

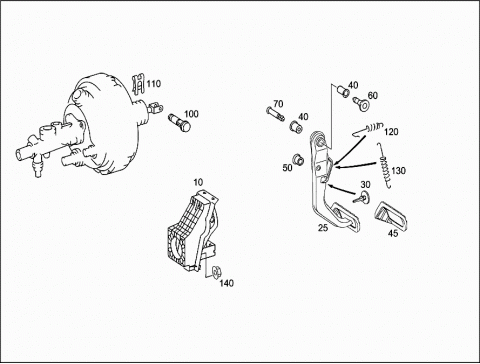

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2202901119 | BEARING BRACKET |
| 025 | A 2202902718 | BRAKE PEDAL |
| Repalced by: A 2202902918 | ||
| 025 | A 2202902918 | PEDAL |
| 025 | A 2202902918 | PEDAL |
| 025 | A 2202904018 | BRAKE PEDAL |
| 025 | A 2202904018 | BRAKE PEDAL |
| 030 | A 2112920086 | BUFFER |
| BRAKE PEDAL | ||
| 040 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 045 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 045 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 050 | A 2102920150 | BUSHING |
| 060 | A 1682910055 | PLUG |
| 070 | A 1682910374 | PIN |
| 100 | A 2102920474 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| Repalced by: A 2032920174 | ||
| 100 | A 2032920174 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 110 | N 912011008000 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 110 | N 912002008003 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 8 MM | ||
| 120 | A 2209930510 | SPRING |
| BRAKE PEDAL | ||
| 130 | A 2209930010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 140 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
