Transporto priemonė: CL 500 BlueEFFICIENCY; VIN numerio dalis: 216373

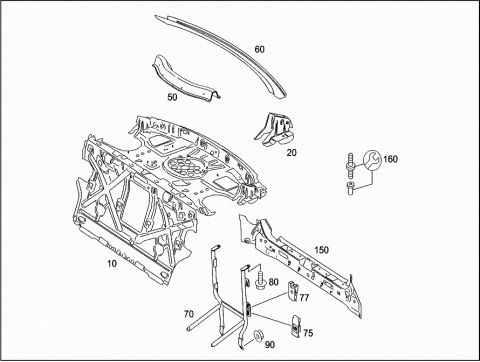

Grupė: 64 REAR END
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2166400260 | REAR PANEL |
| 020 | A 2166460026 | BEARING |
| REAR LEFT AND RIGHT | ||
| 050 | A 2166400214 | CROSS MEMBER |
| ON REAR PANEL | ||
| 060 | A 2166470001 | REAR END CENTER ASSEMBLY |
| REAR PANEL,TOP OUTSIDE | ||
| 070 | A 2216400319 | STIFFENING |
| REAR END PANEL, CENTER | ||
| 070 | A 2216400619 | STIFFENING |
| REAR END PANEL, CENTER | ||
| 075 | A 0009907191 | NUT RETAINER |
| TO REINFORCEMENT | ||
| 077 | A 0039948545 | LOCK NUT |
| TO REINFORCEMENT | ||
| 4.8/0.5-2.5 MM | ||
| 080 | N 000000003853 | HEXALOBULAR BOLT |
| REINFORCEMENT TO REAR END PLATE | ||
| M8X16 | ||
| 090 | N 910112008000 | HEXAGON NUT |
| REINFORCEMENT TO FLOOR | ||
| M8 | ||
| 150 | A 2166400071 | REAR END CENTER ASSEMBLY |
| BOTTOM | ||
| 160 | A 0009901210 | BOLT |
| REPAIR SOLUTION FOR RUPTURED WELDED PINS |
