Transporto priemonė: C 180; VIN numerio dalis: 204231

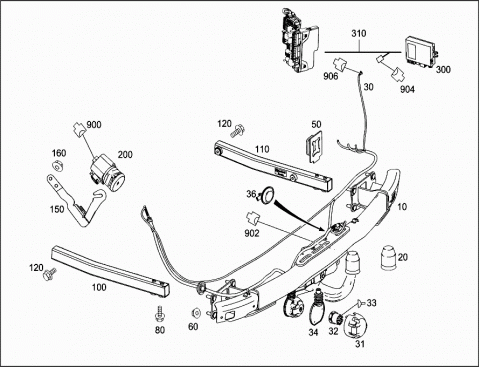

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2043101004 | TRAILER HITCH |
| 010 | A 2043101204 | TRAILER HITCH |
| 020 | A 0003151029 | CAP |
| 030 | A 2045408713 | ELECTRICAL WIRING HARNESS |
| 031 | A 0245450226 | PLUG SOCKET |
| HITCHING MECHANISM | ||
| X58 | ||
| 032 | A 0305452628 | PLUG HOUSING |
| 13-PIN RK3.5;X58 | ||
| 033 | A 0075451526 | FEMALE CONTACT |
| 0.75-2.5 MM2 RK3.5 | ||
| 034 | A 0055464437 | GROMMET |
| 036 | A 0019981401 | GROMMET |
| 050 | A 1693150180 | GASKET |
| 060 | N 000000003275 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M10 | ||
| 080 | N 000000001081 | HEXAGON HEAD BOLT |
| CROSSBEAM TO REAR LONGITUDINAL MEMB. | ||
| M12X35 | ||
| 100 | A 2046100525 | REINFORCEMENT |
| LEFT | ||
| 110 | A 2046100625 | REINFORCEMENT |
| RIGHT | ||
| 120 | N 000000001556 | SCREW-AND-WASHER ASSEMBLY |
| REINFORCEMENT TO SIDE MEMBER | ||
| M10X25 | ||
| 150 | A 2043100158 | CONSOLE |
| 160 | N 910112006003 | HEXAGON NUT |
| M6 | ||
| 200 | A 2045400083 | HANDLE |
| 300 | Q 0000000001 | IMPORTANT INFORMATION |
| FOR PARTS,SEE: | ||
| 54/077 | ||
| 310 | A 2045408113 | ELECTRICAL WIRING HARNESS |
| ELECTRICAL CENTER AT TRAILER CONTROL U NIT | ||
| 900 | A 0255454126 | CLUTCH |
| RELEASE FOR TRAILER HITCH | ||
| 6-PIN MQS;A63 | ||
| 902 | A 2105402081 | PIN BUSHING HOUSING |
| LOCKING UNIT SWITCH FOR TRAILER HITCH | ||
| 2-PIN MQS;S142 | ||
| 904 | A 0375451428 | HOUSING |
| INTERIOR/TRAILER HITCH CONNECTING POINT | ||
| 2-PIN SLK2.8;X58/33 | ||
| 906 | A 2205455528 | PIN BUSHING HOUSING |
| INTERIOR/TRAILER HITCH CONNECTING POINT | ||
| 2-PIN SLK2.8;X58/33 |
