Transporto priemonė: C 220 JAPAN; VIN numerio dalis: 202022

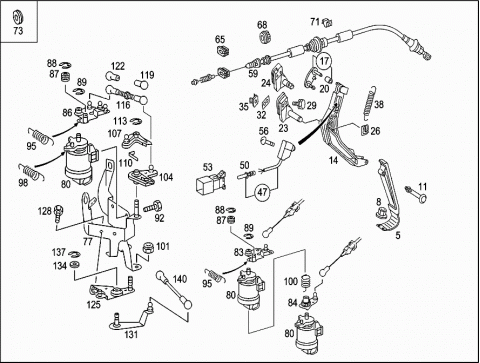

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR KICK-DOWN SWITCH, SEE GROUP: | ||
| 54 | ||
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 005 | A 2103000004 | ACCELERATOR PEDAL |
| Repalced by: A 1293000004 | ||
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| 005 | A 2103000004 | ACCELERATOR PEDAL |
| Repalced by: A 1293000004 | ||
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| 008 | A 1403010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 011 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 014 | A 2023010920 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 2023011520 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 2023011220 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 2023011420 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 2023010720 | LEVER |
| Repalced by: A 2023011620 | ||
| 014 | A 2023011620 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 2023011120 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 1243001625 | LEVER |
| 020 | N 040621005200 | INSULATING HOSE |
| 5 MM | ||
| 023 | A 1403000213 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 023 | A 1403000213 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 024 | A 1293010218 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 026 | N 912007006001 | CLIP |
| PEDAL LEVER TO BEARING | ||
| 029 | N 304017006012 | SCREW |
| BEARING TO FIRE WALL | ||
| 029 | N 914005006009 | COMBINATION BOLT |
| Repalced by: N 304017006019 | ||
| 029 | N 304017006019 | SCREW |
| BEARING TO FIRE WALL | ||
| 032 | A 1243010080 | GASKET |
| BEARING TO FIRE WALL | ||
| 035 | A 0009902291 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| 038 | A 2029931410 | SPRING |
| ACCELERATOR PEDAL | ||
| 038 | A 1119931610 | SPRING |
| ACCELERATOR PEDAL | ||
| 047 | A 1405450114 | SWITCH |
| ACCELERATION SKID CONTROL (ASR) | ||
| 050 | A 0165451428 | PLUG PIN |
| 053 | A 0185451428 | PLUG |
| 056 | A 0003010071 | SCREW |
| Repalced by: A 0049906112 | ||
| 056 | A 0049906112 | SCREW |
| SWITCH TO LEVER | ||
| 059 | A 2023000230 | WIRE CABLE |
| Repalced by: A 2023000130 | ||
| 059 | A 2023000130 | WIRE CABLE |
| 059 | A 2023000230 | WIRE CABLE |
| Repalced by: A 2023000130 | ||
| 059 | A 2023000130 | WIRE CABLE |
| 059 | A 2023000330 | WIRE CABLE |
| Repalced by: A 2023000430 | ||
| 059 | A 2023000430 | WIRE CABLE |
| 059 | A 2023000330 | WIRE CABLE |
| Repalced by: A 2023000430 | ||
| 059 | A 2023000430 | WIRE CABLE |
| 059 | A 2023000530 | WIRE CABLE |
| Repalced by: A 2023000630 | ||
| 059 | A 2023000630 | WIRE CABLE |
| 059 | A 2023000730 | WIRE CABLE |
| 059 | A 2023000830 | WIRE CABLE |
| 059 | A 2023002630 | WIRE CABLE |
| Repalced by: A 2023002530 | ||
| 059 | A 2023002530 | WIRE CABLE |
| 059 | A 2023002730 | WIRE CABLE |
| Repalced by: A 2023002830 | ||
| 059 | A 2023002830 | WIRE CABLE |
| 059 | A 2023001430 | WIRE CABLE |
| Repalced by: A 2023001330 | ||
| 059 | A 2023001330 | WIRE CABLE |
| 059 | A 2083000130 | WIRE CABLE |
| Repalced by: A 2083000030 | ||
| 059 | A 2083000030 | WIRE CABLE |
| 059 | A 2083000330 | WIRE CABLE |
| Repalced by: A 2083000230 | ||
| 059 | A 2083000230 | WIRE CABLE |
| Repalced by: A 2083000430 | ||
| 059 | A 2083000430 | WIRE CABLE |
| 059 | A 2083000330 | WIRE CABLE |
| Repalced by: A 2083000230 | ||
| 059 | A 2083000230 | WIRE CABLE |
| Repalced by: A 2083000430 | ||
| 059 | A 2083000430 | WIRE CABLE |
| 059 | A 2023001630 | WIRE CABLE |
| Repalced by: A 2023001530 | ||
| 059 | A 2023001530 | WIRE CABLE |
| 059 | A 2023001630 | WIRE CABLE |
| Repalced by: A 2023001530 | ||
| 059 | A 2023001530 | WIRE CABLE |
| 059 | A 2023001630 | WIRE CABLE |
| Repalced by: A 2023001530 | ||
| 059 | A 2023001530 | WIRE CABLE |
| 065 | A 2023010093 | GUIDE |
| 065 | A 2023010093 | GUIDE |
| 068 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 071 | A 0069881578 | CLIP |
| 073 | A 1109870744 | EXPANSION PLUG |
| 077 | A 2023001240 | BRACKET |
| 077 | A 2023010740 | BRACKET |
| 077 | A 2083010140 | BRACKET |
| Repalced by: A 2103011540 | ||
| 077 | A 2103011540 | BRACKET |
| 077 | A 2083010140 | BRACKET |
| Repalced by: A 2103011540 | ||
| 077 | A 2103011540 | BRACKET |
| 080 | A 0095428817 | SENDER UNIT |
| 080 | A 0115428717 | SENDER UNIT |
| 080 | A 0125423317 | SENDER UNIT |
| 080 | A 0125423317 | SENDER UNIT |
| 083 | A 2023001028 | LEVER |
| (REVERSING LEVER) | ||
| 084 | A 2083000228 | LEVER |
| Repalced by: A 2103001128 | ||
| 084 | A 2103001128 | LEVER |
| (REVERSING LEVER) | ||
| 086 | A 2023000628 | LEVER |
| Repalced by: A 2023000928 | ||
| 086 | A 2023000928 | LEVER |
| (REVERSING LEVER) | ||
| 087 | A 2103010011 | ROLLER |
| 088 | N 006799005009 | LOCK PLATE |
| ROLLER TO LEVER | ||
| 089 | N 006799007007 | LOCK PLATE |
| 092 | N 000933006207 | SCREW |
| 092 | N 000933006207 | SCREW |
| 095 | A 2109930310 | SPRING |
| 098 | A 6019933710 | SPRING |
| 100 | A 1409930620 | SPRING |
| BETWEEN CONTROL LEVER AND BRACKET | ||
| 100 | A 1409930620 | SPRING |
| BETWEEN CONTROL LEVER AND BRACKET | ||
| 101 | N 913023006001 | NUT |
| BRACKET TO CONSOLE | ||
| 101 | N 913023006001 | NUT |
| 104 | A 2023000428 | LEVER |
| ANGULAR LEVER | ||
| 107 | A 2023000528 | LEVER |
| (DRAG LINK) | ||
| 110 | A 1040720143 | SPRING |
| AT DRAG LINK | ||
| 113 | N 006799005009 | LOCK PLATE |
| 116 | A 1160700575 | ROD |
| FROM ANGULAR LEVER TO REVERSING LEVER | ||
| 119 | A 0009918922 | BALL SOCKET |
| 122 | A 0009919022 | BALL SOCKET |
| 125 | A 2023000640 | BRACKET |
| 128 | N 304017006018 | SCREW |
| BRACKET TO BRACKET | ||
| 131 | A 2023002525 | LEVER |
| CONTROL LEVER | ||
| 134 | N 000988010016 | FITTED WASHER |
| CONTROL LEVER TO BRACKET | ||
| 137 | N 006799007007 | LOCK PLATE |
| CONTROL LEVER TO BRACKET | ||
| 140 | A 0010708675 | ROD |
| FROM REVERSING LEVER TO CONTROL LEVER | ||
