Transporto priemonė: C 240 JAPAN; VIN numerio dalis: 202086

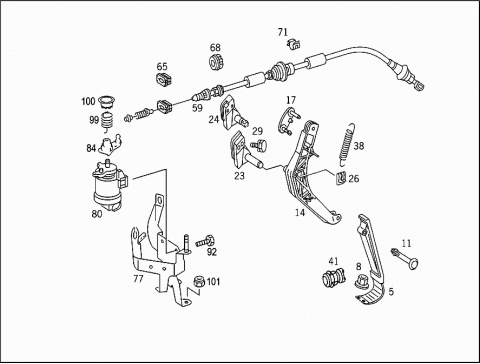

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR KICK-DOWN SWITCH, SEE GROUP: | ||
| 54 | ||
| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 008 | A 2103010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 011 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 014 | A 2023011220 | LEVER |
| Repalced by: A 2023011820 | ||
| 014 | A 2023011820 | LEVER |
| Repalced by: A 2023011420 | ||
| 014 | A 2023011420 | LEVER |
| Repalced by: A 2023011920 | ||
| 014 | A 2023011920 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 1243001625 | LEVER |
| 023 | A 1403000213 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 024 | A 1293010218 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 026 | N 912007006001 | CLIP |
| PEDAL LEVER TO BEARING | ||
| 029 | N 914005006009 | COMBINATION BOLT |
| Repalced by: N 304017006019 | ||
| 029 | N 304017006019 | SCREW |
| BEARING TO FIRE WALL | ||
| 038 | A 1029931210 | SPRING |
| ACCELERATOR PEDAL | ||
| 038 | A 1119931610 | SPRING |
| ACCELERATOR PEDAL | ||
| 041 | A 1243000141 | STOP |
| ACCELERATOR PEDAL | ||
| 059 | A 2023000230 | WIRE CABLE |
| Repalced by: A 2023000130 | ||
| 059 | A 2023000130 | WIRE CABLE |
| 059 | A 2023000330 | WIRE CABLE |
| Repalced by: A 2023000430 | ||
| 059 | A 2023000430 | WIRE CABLE |
| 059 | A 2023002630 | WIRE CABLE |
| Repalced by: A 2023002530 | ||
| 059 | A 2023002530 | WIRE CABLE |
| 059 | A 2023002730 | WIRE CABLE |
| Repalced by: A 2023002830 | ||
| 059 | A 2023002830 | WIRE CABLE |
| 059 | A 2023001630 | WIRE CABLE |
| Repalced by: A 2023001530 | ||
| 059 | A 2023001530 | WIRE CABLE |
| 059 | A 2023001530 | WIRE CABLE |
| 065 | A 2023010093 | GUIDE |
| 068 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 071 | A 0069881578 | CLIP |
| 077 | A 2083010140 | BRACKET |
| Repalced by: A 2103011540 | ||
| 077 | A 2103011540 | BRACKET |
| 077 | A 2103011540 | BRACKET |
| 080 | A 0125423317 | SENDER UNIT |
| 080 | A 0115428717 | SENDER UNIT |
| 084 | A 2103001128 | LEVER |
| (REVERSING LEVER) | ||
| 084 | A 2103001128 | LEVER |
| (REVERSING LEVER) | ||
| 092 | N 304017006016 | SCREW |
| REVERSING LEVER TO BRACKET | ||
| 099 | A 1409930620 | SPRING |
| BETWEEN CONTROL LEVER AND BRACKET | ||
| 099 | A 1689930320 | SPRING |
| BETWEEN CONTROL LEVER AND BRACKET | ||
| 100 | A 1403010043 | CLAMPING PIECE |
| BETWEEN CONTROL LEVER AND BRACKET | ||
| 101 | N 913023006001 | NUT |
| BRACKET TO CONSOLE | ||
