Transporto priemonė: C 280 4MATIC; VIN numerio dalis: 203292

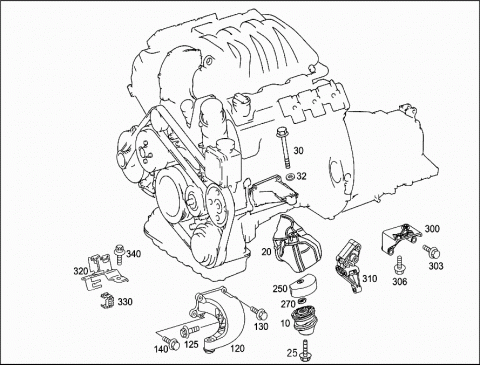

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2102400617 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2102401217 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032402517 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 010 | A 2102400617 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032402517 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032401317 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032401417 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032402117 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032402117 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032401417 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032402417 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032402017 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032402017 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2112402617 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2112402717 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2202400617 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2202400617 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032401617 | RUBBER MOUNT |
| FRONT LEFT | ||
| 010 | A 2032401617 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 010 | A 2112400017 | RUBBER MOUNT |
| FRONT LEFT | ||
| 010 | A 2112402017 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 020 | A 2032411234 | SCREENING PLATE |
| FRONT LEFT | ||
| 020 | A 2032410734 | SCREENING PLATE |
| FRONT RIGHT | ||
| 020 | A 2032410634 | SCREENING PLATE |
| FRONT LEFT | ||
| 020 | A 2032410734 | SCREENING PLATE |
| FRONT RIGHT | ||
| 020 | A 2032400045 | PROTECTIVE PLATE |
| FRONT RIGHT | ||
| 020 | A 2112411734 | SCREENING PLATE |
| FRONT RIGHT | ||
| 020 | A 1712410334 | SCREENING PLATE |
| FRONT RIGHT | ||
| 020 | A 2032411334 | SCREENING PLATE |
| FRONT RIGHT | ||
| 020 | A 2032410534 | SCREENING PLATE |
| FRONT RIGHT | ||
| 025 | A 2029902201 | BOLT |
| FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT | ||
| M8X21 | ||
| 030 | N 914007010066 | SCREW-AND-WASHER ASSEMBLY |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| Repalced by: N 304017010051 | ||
| 030 | N 304017010051 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| 030 | A 0069908304 | BOLT |
| MASS DAMPER MOUNTING | ||
| M10 X 65 | ||
| 030 | N 914007010066 | SCREW-AND-WASHER ASSEMBLY |
| ENGINE FRONT RIGHT MOUNTING | ||
| M10X60 | ||
| Repalced by: N 304017010051 | ||
| 030 | N 304017010051 | HEXAGON HEAD BOLT |
| ENGINE FRONT RIGHT MOUNTING | ||
| M10X60 | ||
| 032 | N 000125010532 | WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| Repalced by: N 000000003386 | ||
| 032 | N 000000003386 | WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 035 | A 2032420601 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032421501 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032421501 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032421601 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032420801 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032421701 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032421801 | ENGINE SUPPORT |
| REAR | ||
| 035 | A 2032420501 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2202400118 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400418 | ||
| 040 | A 2202400118 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400418 | ||
| 040 | A 2202400418 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400318 | ||
| 040 | A 2202400418 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400318 | ||
| 040 | A 2202400118 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400418 | ||
| 040 | A 2202400418 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400318 | ||
| 040 | A 2202400218 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400518 | ||
| 040 | A 2202400518 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400418 | ||
| 040 | A 2202400218 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400518 | ||
| 040 | A 2202400518 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400418 | ||
| 040 | A 2202400218 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2202400518 | ||
| 040 | A 2202400518 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400418 | ||
| 040 | A 2122400318 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2122400318 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2122400318 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 040 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 050 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO ENGINE MOUNTING | ||
| M10X35 | ||
| 060 | N 000000000276 | HEXALOBULAR BOLT |
| ENGINE MOUNT REAR TO TRANSM. CARRIER | ||
| M8X20 | ||
| 070 | A 0019907436 | BOLT |
| ENGINE SUPPORT TO FRAME | ||
| 100 | A 1402421340 | BRACKET |
| AT TRANSMISSION | ||
| 100 | A 2112420340 | BRACKET |
| AT TRANSMISSION | ||
| 110 | N 910143008003 | HEXALOBULAR BOLT |
| BRACKET TO TRANSMISSION | ||
| M8X30 | ||
| 110 | A 0049903412 | BOLT |
| BRACKET TO TRANSMISSION | ||
| M6X30 | ||
| 120 | A 1122235104 | ENGINE SUPPORT |
| LEFT | ||
| 120 | A 1122235204 | ENGINE SUPPORT |
| RIGHT | ||
| 125 | N 910143008019 | HEXALOBULAR BOLT |
| BRACKET TO ENGINE SUPPORT RIGHT | ||
| M8X60 | ||
| 130 | N 910143008019 | HEXALOBULAR BOLT |
| BRACKET TO TRANSFER CASE | ||
| M8X60 | ||
| 130 | N 910105008014 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSFER CASE | ||
| M8X35 | ||
| 140 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO OIL PAN | ||
| M8X35 | ||
| 150 | A 2032400202 | ENGINE SUPPORT |
| REAR | ||
| 150 | A 2032400502 | ENGINE SUPPORT |
| REAR | ||
| 160 | A 2032240105 | CONSOLE |
| ENGINE SUPPORT AT REAR, TOP PART | ||
| 180 | N 913023008003 | NUT |
| BRACKET ON ENGINE MOUNT, REAR | ||
| Repalced by: N 000000003175 | ||
| 180 | N 000000003175 | NUT |
| BRACKET ON ENGINE MOUNT, REAR | ||
| M8 | ||
| 200 | A 2032400218 | RUBBER MOUNT |
| REAR | ||
| 210 | N 913023010002 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10 | ||
| 220 | N 910143010011 | HEXALOBULAR BOLT |
| ENGINE MOUNT REAR TO TRANSFER CASE | ||
| M10X20-10.9 | ||
| 250 | A 2712230063 | MASS DAMPER |
| TO ENGINE SUPPORT LEFT AND RIGHT | ||
| 270 | A 0179973448 | SEAL RING |
| TO MASS DAMPER | ||
| 300 | A 2032230038 | STRUT |
| CYLINDER CRANKCASE,LEFT | ||
| 303 | N 910105008019 | HEXAGON HEAD BOLT |
| BRACKET TO LEFT OIL PAN | ||
| M8X50 | ||
| 306 | N 910105008014 | HEXAGON HEAD BOLT |
| BRACKET TO LEFT ENGINE SUPPORT | ||
| M8X35 | ||
| 310 | A 2032230040 | BRACKET |
| CYLINDER CRANKCASE,RIGHT | ||
| 320 | A 6421500273 | BRACKET |
| ON ENGINE SUPPORT | ||
| 330 | A 0009910170 | SPRING CLAMP |
| AT BRACKET | ||
| 28 X 24 MM | ||
| 340 | N 000000001114 | HEXALOBULAR BOLT |
| BRACKET TO ENGINE SUPPORT RIGHT | ||
| M6X15 | ||
