Transporto priemonė: C 280 4MATIC / C 300 4MATIC; VIN numerio dalis: 204081

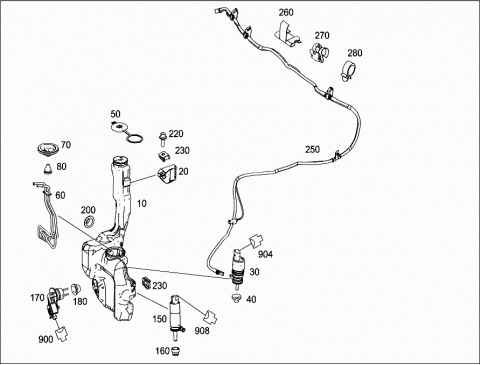

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER

#	Kodas	Pavadinimas
010	A 2048690520	DASHPOT
010	A 2048690420	DASHPOT
	Repalced by: A 2048691420
010	A 2048691420	FLUID CONTAINER
010	A 2048690720	DASHPOT
	Repalced by: A 2048691320
010	A 2048691320	FLUID CONTAINER
010	A 2048690120	DASHPOT
	Repalced by: A 2048691220
010	A 2048691220	FLUID CONTAINER
010	A 2048691620	WINDSCREEN WASH BOTTLE
010	A 2048691520	WINDSCREEN WASH BOTTLE
020	A 2048690014	BRACKET
		FOR RESERVOIR TO BODYSHELL
030	A 2218690121	PUMP
		FOR WINDSHIELD WASHER
040	A 0009989001	GROMMET
		BETWEEN RESERVOIR AND PUMP
050	A 1718690108	COVER
060	A 2048300361	HEAT EXCHANGER
070	A 2038690208	COVER
		FOR HEAT EXCHANGER
080	A 0109971381	GROMMET
		BETWEEN HEAT EXCHANGER AND COVER
150	A 2108691221	CENTRIFUGAL PUMP
		PARA HEADLAMP CLANING SYSTEM
160	A 0109971181	GROMMET
		BETWEEN RESERVOIR AND PUMP
170	A 2218209110	SWITCH
		FOR WASHING WATER STATUS
180	A 2038690098	SEAL
		BETWEEN RESERVOIR AND SWITCH
200	A 2038690198	SEAL
		BETWEEN RESERVOIR AND BODY
220	N 910105006023	HEXAGON HEAD BOLT
		FOR TANK TO BODY
		M6X16
230	A 0049941645	LOCK NUT
		FOR TANK TO BODY
		M6
250	A 2048600492	HOSE ASSY.
		WITH NOZZLES
	Repalced by: A 2048601692
250	A 2048601692	HOSE LINE
		WITH NOZZLES
250	A 2048600692	HOSE ASSY.
		WITH NOZZLES
	Repalced by: A 2048601892
250	A 2048601892	HOSE LINE
		WITH NOZZLES
250	A 2048600392	HOSE ASSY.
		WITH NOZZLES
	Repalced by: A 2048600192
250	A 2048600192	HOSE LINE
		WITH NOZZLES
250	A 2048600792	HOSE ASSY.
		WITH NOZZLES
250	A 2048601792	HOSE LINE
		WITH NOZZLES
260	A 0089886978	CLIP
		FOR HOSE TO COVER
260	A 0089886978	CLIP
		FOR HOSE TO COVER
270	A 0119889278	CLIP
		FOR HOSE TO COVER
280	A 0019951744	CLAMP
		FOR HOSE TO BODY
		20 MM

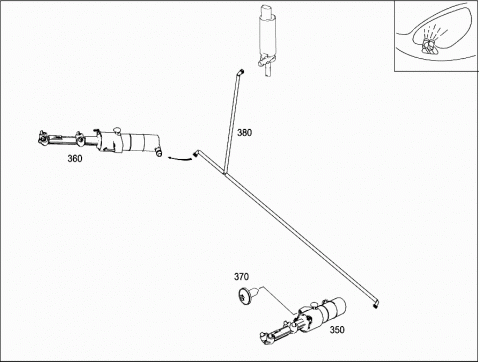

350	A 2048600347	NOZZLE
		FOR HEADLAMP CLEANING SYSTEM,LEFT
350	A 2048602747	TELESCOPIC NOZZLE
		FOR HEADLAMP CLEANING SYSTEM,LEFT
360	A 2048600447	NOZZLE
		FOR HEADLAMP CLEANING SYSTEM,RIGHT DIREITA
360	A 2048602847	TELESCOPIC NOZZLE
		FOR HEADLAMP CLEANING SYSTEM,RIGHT DIREITA
370	A 0019846429	FILLISTER HEAD SCREW
		TELESCOPIC NOZZLE TO LAMP UNIT
		M5X16
380	A 2048600292	HOSE
		BETWEEN PUMP AND NOZZLE
380	A 2048602592	HOSE ASSEMBLY
		BETWEEN PUMP AND NOZZLE
900	A 1685452928	RECEPTACLE HOUSING
		WASHER FLUID LEVEL SWITCH
		2-PIN SLK2.8;S42
904	A 0165454626	PIN BUSHING HOUSING
		WASHER PUMP
		2-PIN MCP2.8;M5/1
908	A 0185450026	PIN BUSHING HOUSING
		HEADLAMP CLEANING SYSTEM WASHER PUMP
		2-PIN MCP2.8;M5/2
