Transporto priemonė: C 43 AMG USA; VIN numerio dalis: 202033

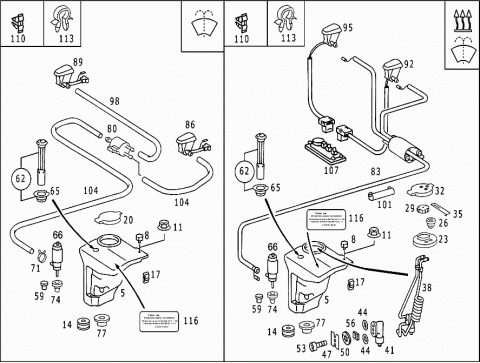

Grupė: 86 WINDSHIELD WASHER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2028690020 | RESERVOIR |
| Repalced by: A 2028690620 | ||
| 005 | A 2028690620 | RESERVOIR |
| PANE WASHER | ||
| 005 | A 2028690320 | RESERVOIR |
| Repalced by: A 2028690720 | ||
| 005 | A 2028690720 | RESERVOIR |
| PANE WASHER | ||
| 005 | A 2028690720 | RESERVOIR |
| PANE WASHER | ||
| 008 | A 2029900027 | SCREW |
| LIQUID TANK TO WHEELHOUSE | ||
| 011 | A 2019900050 | PLASTIC NUT |
| LIQUID TANK TO WHEELHOUSE | ||
| 014 | A 1159970681 | GROMMET |
| LIQUID TANK TO WHEELHOUSE | ||
| 017 | A 0079886778 | CLIP |
| RESERVOIR TO PARTITION PANEL | ||
| 020 | A 1248690272 | FILLER CAP |
| PANE WASHER; NOT HEATED | ||
| 023 | A 2028690008 | COVERING |
| Repalced by: A 2108690308 | ||
| 023 | A 2108690308 | COVERING |
| PANE WASHER HEATED, SCREWED | ||
| 023 | A 2108690308 | COVERING |
| PANE WASHER HEATED, CLIPPED | ||
| 026 | A 1249975081 | GROMMET |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 029 | A 1238690172 | FILLER CAP |
| PANE WASHER HEATED, SCREWED | ||
| 032 | A 1248690172 | FILLER CAP |
| Repalced by: A 2028609369 | ||
| 032 | A 2028609369 | FASTENER |
| PANE WASHER HEATED, CLIPPED | ||
| 035 | A 1268690214 | HOLDER |
| PANE WASHER HEATED, SCREWED | ||
| 038 | A 2028300261 | HEATER UNIT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 041 | A 1268300784 | VALVE |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 044 | A 1409970645 | SEAL RING |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 047 | A 1248350132 | CONNECTION |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 050 | N 006797006247 | TOOTHED WASHER |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 053 | N 000912006126 | SCREW |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 056 | A 1269901152 | NUT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 059 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLE FOR HEADLAMP CLEANING DEVICE IN RESERVOIR | ||
| 062 | A 1405400017 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 062 | A 2105400045 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 065 | A 1409974281 | GROMMET |
| 066 | A 2028690021 | PUMP |
| PANE WASHER | ||
| 066 | A 2028690121 | PUMP |
| PANE WASHER | ||
| 066 | A 2108690821 | PUMP |
| PANE WASHER | ||
| 066 | A 2108690921 | PUMP |
| PANE WASHER | ||
| 068 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 068 | A 2028690121 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 071 | A 0009955965 | CLAMP |
| HOSE TO PUMP | ||
| 074 | A 1239973681 | GROMMET |
| FROM PUMP INTO RESERVOIR | ||
| 074 | A 1239973681 | GROMMET |
| HEADLAMP WIPER/WASHER | ||
| 077 | A 1299971681 | GROMMET |
| RESERVOIR TO WHEELHOUSE | ||
| 080 | A 0008600862 | CHECK VALVE |
| AT HOSE TO LEFT AND RIGHT NOZZLES | ||
| 080 | A 0008600862 | VALVE |
| HEADLAMP WIPER/WASHER | ||
| 083 | A 2028600362 | CHECK VALVE |
| WITH HOSE | ||
| 086 | A 2028600947 | NOZZLE |
| ENGINE HOOD, LEFT | ||
| 089 | A 2028601047 | NOZZLE |
| ENGINE HOOD,RIGHT | ||
| 092 | A 2028601147 | NOZZLE |
| HOOD,LEFT,WINDSCREEN WASHING SYSTEM HEATED | ||
| 095 | A 2028601247 | NOZZLE |
| HOOD,RIGHT,WINDSCREEN WASHING SYSTEM HEATED | ||
| 098 | A 2028690594 | HOSE |
| FROM CHECK VALVE TO RIGHT NOZZLE | ||
| 101 | A 2028890014 | BRACKET |
| HOSE TO ENGINE HOOD HINGE | ||
| 104 | A 0109978982 | HOSE |
| 1180 MM | ||
| 107 | A 1268201111 | PLATE |
| ENGINE HOOD BRACKET,REAR | ||
| 110 | A 0069887078 | CLIP |
| ENGINE HOOD BRACKET,REAR | ||
| 113 | A 0009955244 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 113 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 116 | A 2028176820 | GUIDE SIGN |
