Transporto priemonė: E 220 CDI; VIN numerio dalis: 212002

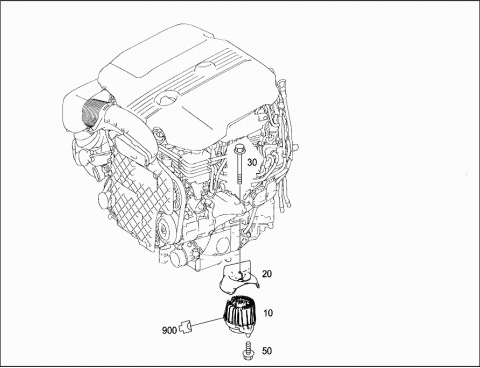

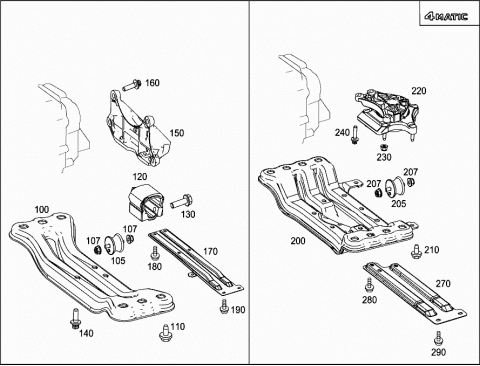

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2122401417 | ENGINE MOUNT |
| FRONT LEFT | ||
| Repalced by: A 2122404117 | ||
| 010 | A 2122404117 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2122401917 | ENGINE MOUNT |
| FRONT RIGHT | ||
| Repalced by: A 2122404217 | ||
| 010 | A 2122404217 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2122405517 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2042400417 | ENGINE MOUNT |
| FRONT LEFT | ||
| Repalced by: A 2042404817 | ||
| 010 | A 2042404817 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2042402317 | ENGINE MOUNT |
| FRONT RIGHT | ||
| Repalced by: A 2042405017 | ||
| 010 | A 2042405017 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2122403017 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2122403117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2122403117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2122402317 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2122403217 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2122402417 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 2122403317 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 020 | A 2042410334 | SCREENING PLATE |
| RIGHT | ||
| 020 | A 2042411034 | SCREENING PLATE |
| RIGHT | ||
| 020 | A 2042410434 | SCREENING PLATE |
| RIGHT | ||
| 030 | N 910105010003 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| 050 | N 910105008014 | HEXAGON HEAD BOLT |
| FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT | ||
| M8X35 | ||
| 100 | A 2122402102 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122402602 | ENGINE MOUNT |
| REAR | ||
| 100 | A 2122402102 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122402202 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122402302 | ENGINE MOUNT |
| REAR | ||
| 100 | A 2122402002 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122402802 | ENGINE MOUNT |
| REAR | ||
| 100 | A 2122422001 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122422201 | ENGINE SUPPORT |
| REAR | ||
| 100 | A 2122403802 | ENGINE MOUNT |
| REAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 105 | A 2044920244 | SUSPENSION RING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 107 | N 000000003175 | NUT |
| SUSPENSION RING FASTENING | ||
| M8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 110 | A 0019907436 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| Repalced by: A 0019903703 | ||
| 110 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 110 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 110 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 120 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 2122400818 | RUBBER BUSHING |
| REAR | ||
| 120 | A 2122401718 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 2122401818 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 2122401818 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 2202401818 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400418 | ||
| 120 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 130 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION MOUNTING | ||
| M10X35 | ||
| 140 | N 000000000276 | HEXALOBULAR BOLT |
| ENGINE MOUNT REAR TO TRANSM. CARRIER | ||
| M8X20 | ||
| 150 | A 1402421340 | BRACKET |
| AT TRANSMISSION | ||
| 150 | A 2112420340 | BRACKET |
| AT TRANSMISSION | ||
| 160 | N 910143008003 | HEXALOBULAR BOLT |
| BRACKET TO TRANSMISSION | ||
| M8X30 | ||
| 160 | A 0049903412 | BOLT |
| BRACKET TO TRANSMISSION | ||
| M6X30 | ||
| 170 | A 2122420132 | STRUT |
| 170 | A 2122420632 | STRUT |
| 170 | A 2122420332 | STRUT |
| 170 | A 2122420132 | STRUT |
| 170 | A 2122420032 | STRUT |
| 170 | A 2122420432 | STRUT |
| 180 | N 000000004036 | HEXALOBULAR BOLT |
| STRUT AT REAR ENGINE SUPPORT | ||
| M8X16 | ||
| 190 | N 000000004036 | HEXALOBULAR BOLT |
| STRUT TO SIDE MEMBER | ||
| M8X16 | ||
| 200 | A 2122401002 | ENGINE SUPPORT |
| REAR | ||
| 200 | A 2122401202 | ENGINE SUPPORT |
| REAR | ||
| 200 | A 2122401802 | ENGINE SUPPORT |
| REAR | ||
| 200 | A 2122403902 | ENGINE MOUNT |
| REAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 200 | A 2122404002 | ENGINE MOUNT |
| REAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 205 | A 2044920244 | SUSPENSION RING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 207 | N 000000003175 | NUT |
| SUSPENSION RING FASTENING | ||
| M8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 210 | A 0019907436 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| Repalced by: A 0019903703 | ||
| 210 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 210 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 210 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 220 | A 2042400618 | TRANSMISSION MOUNT |
| REAR | ||
| 230 | N 000000003175 | NUT |
| ENGINE MOUNT REAR TO TRANSM. CARRIER | ||
| M8 | ||
| 240 | N 910143008003 | HEXALOBULAR BOLT |
| BEARING TO TRANSMISSION | ||
| M8X30 | ||
| 270 | A 2122420732 | STRUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 280 | N 000000007752 | HEXALOBULAR BOLT |
| STRUT AT REAR ENGINE SUPPORT | ||
| M8X16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 290 | N 000000007752 | HEXALOBULAR BOLT |
| STRUT TO SIDE MEMBER | ||
| M8X16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 900 | A 0225451926 | CLUTCH HOUSING |
| ENGINE MOUNT LEFT | ||
| 2-PIN MLK1.2;Y123 | ||
| 900 | A 0225451926 | CLUTCH HOUSING |
| ENGINE MOUNTING,RIGHT | ||
| 2-PIN MLK1.2;Y123/1 | ||
