Transporto priemonė: E 220 CDI; VIN numerio dalis: 212002

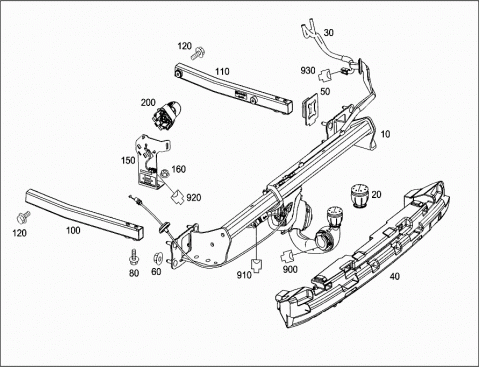

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2123100104 | TRAILER COUPLING |
| 010 | A 2123100304 | TRAILER COUPLING |
| 020 | A 0003150929 | CAP |
| 030 | A 2125408909 | WIRING HARNESS |
| 040 | A 2123150065 | MOLDED PIECE |
| ON TRAILER COUPLING CROSSMEMBER | ||
| 040 | A 2123150265 | ELASTOMER FITTING |
| ON TRAILER COUPLING CROSSMEMBER | ||
| 050 | A 2033150280 | GASKET |
| 060 | N 000000003275 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M10 | ||
| 080 | N 000000001081 | HEXAGON HEAD BOLT |
| CROSSBEAM TO REAR LONGITUDINAL MEMB. | ||
| M12X35 | ||
| 100 | A 2126100125 | REINFORCEMENT |
| LEFT | ||
| 110 | A 2126100225 | REINFORCEMENT |
| RIGHT | ||
| 120 | N 000000001556 | SCREW-AND-WASHER ASSEMBLY |
| REINFORCEMENT TO SIDE MEMBER | ||
| M10X25 | ||
| 150 | A 2123100058 | CONSOLE |
| 160 | N 000000003477 | NUT |
| M6 | ||
| 200 | A 2123100273 | OPERATING UNIT |
| 900 | A 0005406024 | SOCKET-OUTLET |
| TRAILER SOCKET HOUSING | ||
| 13-PIN KFA;X58 | ||
| 900 | A 0015457183 | CAP |
| TRAILER PLUG SOCKET | ||
| X58 | ||
| 910 | A 2205400681 | PIN BUSHING HOUSING |
| LOCKING UNIT SWITCH FOR TRAILER HITCH | ||
| 3-PIN MQS;S142 | ||
| 920 | A 0245459926 | CLUTCH |
| RELEASE FOR TRAILER HITCH | ||
| 2-PIN MQS;A63 | ||
| 930 | A 0375450928 | CLUTCH |
| PLUG CONNECTION TRAILER PLUG SOCKET | ||
| 4-PIN SLK2.8;X52 |
