Transporto priemonė: E 250 CGI; VIN numerio dalis: 207447

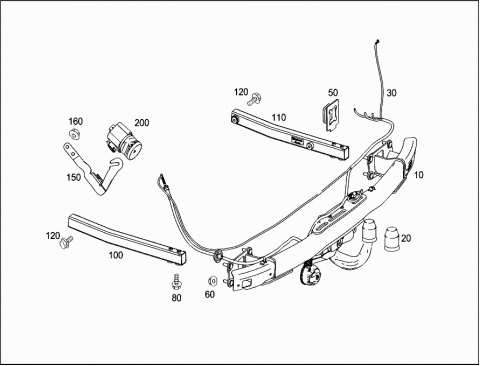

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2073100004 | TRAILER HITCH |
| 020 | A 0003151029 | CAP |
| BALL HEAD | ||
| 030 | A 2075409206 | ELECTRICAL WIRING HARNESS |
| HITCHING MECHANISM | ||
| 050 | A 1693150180 | GASKET |
| 060 | N 000000003275 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M10 | ||
| 080 | N 000000001081 | HEXAGON HEAD BOLT |
| CROSSBEAM TO REAR LONGITUDINAL MEMB. | ||
| M12X35 | ||
| 100 | A 2046100525 | REINFORCEMENT |
| LEFT | ||
| 110 | A 2046100625 | REINFORCEMENT |
| RIGHT | ||
| 120 | N 000000001556 | SCREW-AND-WASHER ASSEMBLY |
| REINFORCEMENT TO SIDE MEMBER | ||
| M10X25 | ||
| 150 | A 2073100158 | CONSOLE |
| 160 | N 910112006003 | HEXAGON NUT |
| AT CONSOLE | ||
| M6 | ||
| 200 | A 2045400083 | HANDLE |
