Transporto priemonė: E 280 4MATIC; VIN numerio dalis: 210081

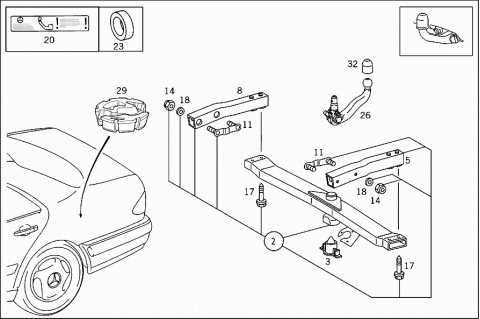

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 2103100095 | HITCH MECHAN. DELY. RANGE |
| Repalced by: A 2103100295 | ||
| 002 | A 2103100295 | HITCH MECHAN. DELY. RANGE |
| (PARTS KIT),REAR CROSS MEMBER | ||
| 002 | A 2103100295 | HITCH MECHAN. DELY. RANGE |
| (PARTS KIT),REAR CROSS MEMBER | ||
| 002 | A 2103100395 | HITCH MECHAN. DELY. RANGE |
| (PARTS KIT),REAR CROSS MEMBER | ||
| 003 | A 0003151567 | CAP |
| 005 | A 2103100491 | STIFFENING |
| LEFT | ||
| 008 | A 2103100591 | STIFFENING |
| RIGHT | ||
| 011 | A 2103100260 | SHACKLE |
| Repalced by: A 2103100360 | ||
| 011 | A 2103100360 | SHACKLE |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| 014 | N 913004010004 | NUT |
| Repalced by: N 910113010000 | ||
| 014 | N 910113010000 | NUT |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| 017 | A 1409900014 | SCREW |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| M 12 X 1.5 X 70 | ||
| 018 | N 007349010002 | WASHER |
| Repalced by: N 007349010003 | ||
| 018 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 018 | N 007349010007 | WASHER |
| STIFFENING SUPPORT TO BODY SIDE MEMBER | ||
| 020 | A 2105841917 | GUIDE SIGN |
| FOR DETACHABLE BALL HEAD; ON REAR LID OUTSIDE LEFT EDGE | ||
| 023 | A 1403150080 | GASKET |
| CROSS MEMBER FOR TRAILER COUPLING TO REAR CROSS MEMBER | ||
| 026 | A 2103100256 | BALL HEAD |
| Repalced by: A 2103100656 | ||
| 026 | A 2103100656 | BALL HEAD |
| FOR SUBSEQUENT INSTALLATION;USED FOR DETACHABLE BALL HEAD; TRAILED LOAD: | ||
| 029 | A 2108980055 | RESERVOIR |
| 032 | A 0003150629 | CAP |
| Q 000000000001 | IMPORTANT INFORMATION | |

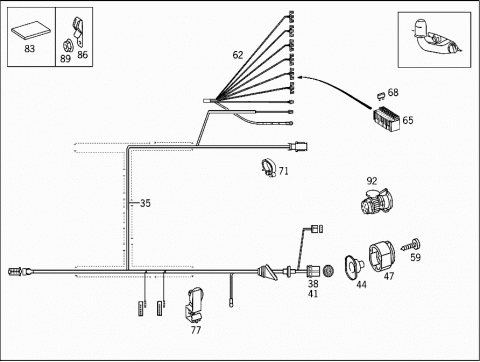

| ELECTRICAL PARTS | ||
| 035 | A 2105403808 | CABLE HARNESS |
| Repalced by: A 2105406509 | ||
| 035 | A 2105406509 | CABLE HARNESS |
| 035 | A 2105404008 | CABLE HARNESS |
| Repalced by: A 2105406609 | ||
| 035 | A 2105406609 | CABLE HARNESS |
| 038 | A 0065457426 | PIN BUSHING HOUSING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 041 | A 0025457926 | PIN BUSHING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 044 | A 1249972381 | GROMMET |
| Repalced by: A 0005455480 | ||
| 044 | A 0005455480 | GASKET |
| 047 | A 0015407581 | PLUG SOCKET |
| 13-POLE | ||
| 059 | N 007981004263 | SHEET METAL SCREW |
| 062 | A 2105409809 | CABLE HARNESS |
| FUSE BOX | ||
| 065 | A 0015459301 | FUSE BOX |
| 068 | A 0025451234 | FUSE |
| Repalced by: N 072581000307 | ||
| 068 | N 072581000307 | FUSE |
| 25 A | ||
| 071 | A 0009957244 | CLAMP |
| Repalced by: A 0009955644 | ||
| 071 | A 0009955644 | CLAMP |
| Repalced by: A 0009955244 | ||
| 071 | A 0009955244 | CLAMP |
| 077 | A 0005465943 | BRACKET |
| 077 | A 0005465943 | BRACKET |
| 083 | A 1238990097 | BASE |
| 086 | A 0009931525 | SPRING |
| 089 | A 1409900250 | NUT |
| 092 | A 0005401074 | CONNECTOR |
| ADAPTER FROM 13-PIN TO 7-PIN | ||
