Transporto priemonė: E 300 TURBODIESEL/4MATIC; VIN numerio dalis: 124393

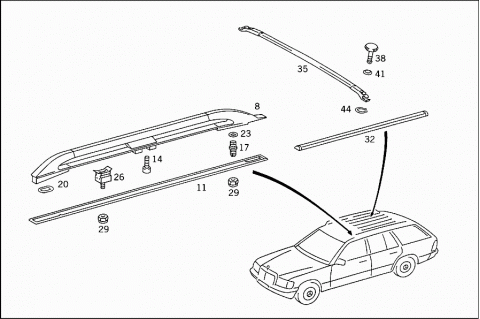

Grupė: 84 ROOF RAILING - 030 ROOF RAILING,LUGGAGE RACK INCORPORATED
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 1248400524 | SUPPORT |
| LEFT | ||
| 008 | A 1248400624 | SUPPORT |
| RIGHT | ||
| 011 | A 1246900597 | PAD |
| LEFT | ||
| 011 | A 1246900697 | PAD |
| RIGHT | ||
| 014 | A 1249900512 | SCREW |
| LOWER SUPPORT TO CENTRAL CONSOLE | ||
| 017 | A 1249840029 | SCREW |
| ROOF RAILING TO BODY | ||
| 020 | A 1249970045 | SEAL RING |
| ROOF RAILING TO BODY | ||
| 023 | A 0129973448 | SEAL RING |
| ROOF RAILING TO BODY | ||
| 026 | A 1248400014 | BRACKET |
| ROOF RAILING TO BODY | ||
| 029 | N 913023006001 | NUT |
| SUPPORT AND BRACKET ON ROOF | ||
| 032 | A 1248400040 | LEDGE |
| 035 | A 1248400218 | FIXTURE |
| 038 | A 1249900027 | SCREW |
| 041 | N 900055007001 | SPRING WASHER |
| 044 | N 000471004001 | LOCK RING |
