Transporto priemonė: E 320 4MATIC JAPAN; VIN numerio dalis: 210282

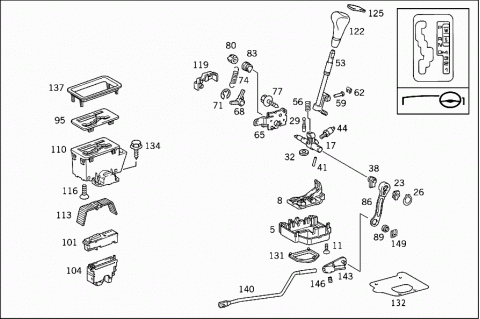

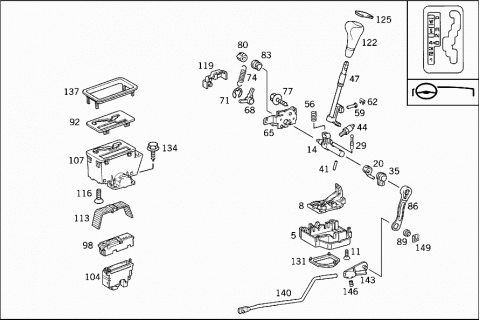

Grupė: 26 GEARSHIFT MECHANISM - 100 FLOOR SHIFT USED WITH AUTOMATIC FIVESPEED TRANSMISSION 722.6
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2022670137 | BEARING BRACKET |
| BOTTOM | ||
| 008 | A 2022670447 | SLOTTED GATE |
| 008 | A 2022670647 | SLOTTED GATE |
| 011 | A 2029901112 | SCREW |
| 014 | A 1292600338 | SHAFT |
| 017 | A 1292600438 | SHAFT |
| 020 | A 1292671430 | LEVER |
| 023 | A 1292671530 | LEVER |
| 026 | N 000471012001 | LOCK RING |
| 029 | A 2022670074 | PIN |
| 032 | N 000433005302 | WASHER |
| 035 | A 1292670350 | BUSHING |
| 038 | A 1292670550 | BUSHING |
| 041 | A 2022670174 | PIN |
| 044 | A 2022600073 | DETENT |
| 047 | A 1402601037 | LEVER |
| 053 | A 1402600937 | LEVER |
| 056 | A 1299933401 | SPRING |
| 059 | A 1292670374 | PIN |
| YOKE TO SHIFTING SHAFT | ||
| 062 | A 1299940041 | LOCK |
| YOKE TO SHIFTING SHAFT | ||
| 065 | A 2022600087 | SHIFTING LOCK |
| 068 | A 2022601537 | LEVER |
| SHIFTING LOCK | ||
| 071 | N 006799006002 | LOCK PLATE |
| Repalced by: N 006799006003 | ||
| 071 | N 006799006003 | LOCK PLATE |
| SHIFTING LOCK | ||
| 074 | A 2022670193 | SPRING |
| SHIFTING LOCK | ||
| 077 | A 1409900904 | SCREW |
| 080 | A 2022670376 | WASHER |
| (CAM PLATE) | ||
| 083 | A 1292670450 | BUSHING |
| 086 | A 2022601437 | LEVER |
| 089 | A 2029920010 | BUSHING |
| 092 | A 1402671488 | COVERING |
| 092 | A 1406800375 | SLOTTED GATE |
| WURZELNUSS | ||
| 092 | A 2106803936 | COVERING |
| WURZELNUSS | ||
| 092 | A 1406800575 | SLOTTED GATE |
| VOGELAUGENAHORN | ||
| 092 | A 2106804036 | COVERING |
| VOGELAUGENAHORN | ||
| 095 | A 1402671288 | COVERING |
| 095 | A 1402671588 | COVERING |
| 095 | A 1402671588 | COVERING |
| 095 | A 1406800475 | SLOTTED GATE |
| WURZELNUSS | ||
| 095 | A 2106803536 | COVERING |
| WURZELNUSS | ||
| 095 | A 1406800675 | SLOTTED GATE |
| VOGELAUGENAHORN | ||
| 095 | A 2106801736 | COVERING |
| VOGELAUGENAHORN | ||
| 098 | A 1405402349 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 101 | A 1405402649 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 104 | A 2105450032 | CONTROL UNIT |
| Repalced by: A 2105451332 | ||
| 104 | A 2105451332 | CONTROL UNIT |
| GEAR RECOGNITION SWITCH | ||
| 107 | A 1402600794 | BEARING BRACKET |
| TOP | ||
| 110 | A 1402600694 | BEARING BRACKET |
| Repalced by: A 1402600894 | ||
| 110 | A 1402600894 | BEARING BRACKET |
| TOP | ||
| 110 | A 1402600894 | BEARING BRACKET |
| TOP | ||
| 113 | A 1402670326 | SHUTTER |
| 116 | N 914136005002 | SCREW |
| ADJUSTING SCREW FOR SHIFTING LOCK | ||
| 119 | A 2022670006 | COVER |
| 122 | A 2102600040 | HANDLE |
| 122 | B 66818021 | HANDLE |
| SELECTOR LEVER HANDLE WITH LEATHER COVER, ANTHRACITE | ||
| 122 | B 66818023 | HANDLE |
| SELECTOR LEVER HANDLE WITH LEATHER COVER, SAFFRON | ||
| 122 | B 66818022 | HANDLE |
| SELECTOR LEVER HANDLE WITH LEATHER COVER,BLUE | ||
| 122 | B 66818029 | HANDLE |
| SELECTOR LEVER HANDLE WITH LEATHER COVER, MUSHROOM | ||
| 122 | B 66818021 | HANDLE |
| SELECTOR LEVER HANDLE WITH LEATHER COVER,GREY | ||
| 125 | B 66818094 | GUMMED LABEL |
| BADGE FOR SELECTOR LEVER HANDLE | ||
| 131 | A 2022670180 | GASKET |
| 132 | A 2102600096 | COVERING |
| FLOOR SHIFT TO TUNNEL | ||
| 134 | N 910106006001 | SCREW |
| BEARING BRACKET TO TUNNEL | ||
| 137 | A 1402670988 | COVERING |
| 140 | A 1292601633 | SHIFTING ROD |
| 140 | A 1402600933 | SHIFTING ROD |
| 140 | A 2102600031 | SHIFTING ROD |
| 143 | A 1402670032 | END PIECE |
| Repalced by: A 2022670032 | ||
| 143 | A 2022670032 | END PIECE |
| 146 | A 0009904077 | SCREW |
| 149 | A 0009944160 | PIN LOCK |
| SHIFTING ROD | ||
