Transporto priemonė: E 320 4MATIC USA; VIN numerio dalis: 210282
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR KICK-DOWN SWITCH, SEE GROUP: | ||
| 54 | ||

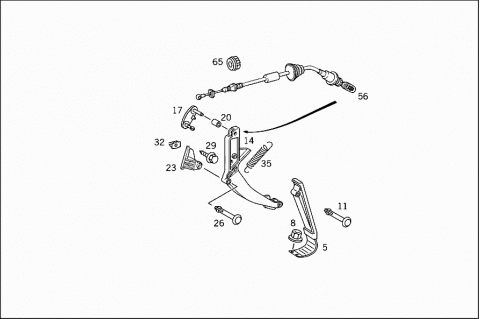

| 005 | A 1293000004 | ACCELERATOR PEDAL |
| Repalced by: A 2203000204 | ||
| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 008 | A 2103010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 011 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 014 | A 2103011220 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 2103000325 | LEVER |
| 020 | N 040621005200 | INSULATING HOSE |
| 5 MM | ||
| 023 | A 2103010118 | BEARING |
| ACCELERATOR PEDAL BEARING | ||
| 026 | A 2103010274 | PIN |
| PEDAL LEVER TO BEARING | ||
| 029 | N 914031006208 | COMBINATION BOLT |
| BEARING TO FIRE WALL | ||
| 032 | A 0019940845 | LOCK |
| BEARING TO FIRE WALL | ||
| 035 | A 1119931610 | SPRING |
| ACCELERATOR PEDAL | ||
| A 1243000141 | STOP | |
| ACCELERATOR PEDAL | ||
| 056 | A 2103001030 | WIRE CABLE |
| 510 MM | ||
| 056 | A 2103001130 | WIRE CABLE |
| 510 MM | ||
| 065 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||

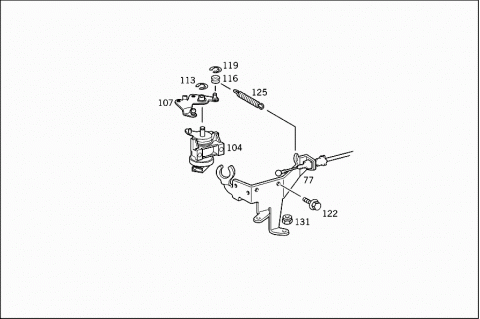

| 077 | A 2103010340 | BRACKET |
| 104 | A 0115428717 | SENDER UNIT |
| 107 | A 2103000728 | LEVER |
| (REVERSING LEVER) | ||
| 113 | N 006799007007 | LOCK PLATE |
| UMLENK - UND ZWISCHENHEBEL AN GEBER | ||
| 116 | A 2103010011 | ROLLER |
| 119 | N 006799005009 | LOCK PLATE |
| ROLLER TO LEVER | ||
| 122 | N 304017006016 | SCREW |
| SENDER UNIT TO BRACKET | ||
| 125 | A 2109930310 | SPRING |
| 131 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 131 | N 913023006001 | NUT |
| BRACKET TO CONSOLE,LEFT | ||
