Transporto priemonė: E 320 4MATIC USA; VIN numerio dalis: 210282

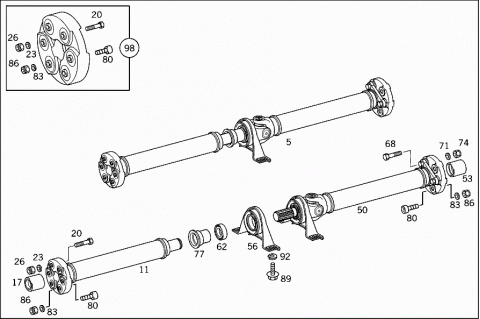

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 2104109306	PROPELLER SHAFT
005	A 2104104606	PROPELLER SHAFT
011	A 2104106301	PROPELLER SHAFT
		FRONT
011	A 2104102701	PROPELLER SHAFT
		FRONT
017	A 1244100732	CENTERING BUSHING
		FRONT
020	A 1409904201	SCREW
	Repalced by: A 0039907112
020	A 0039907112	SCREW
		FLEXIBLE DISC TO PROPELLER SHAFT
		M 12 X 1,5 X 60
020	A 1249903701	SCREW W HEXAGON SOCKET
		FLEXIBLE DISC TO PROPELLER SHAFT
		M10X1X50
023	A 1249904140	WASHER
		FLEXIBLE DISC TO PROPELLER SHAFT
023	A 1409900840	WASHER
		FLEXIBLE DISC TO PROPELLER SHAFT
026	A 1249901451	HEXAGON NUT
		FLEXIBLE DISC TO PROPELLER SHAFT
		M10X1
026	A 1409900551	HEXAGON NUT
		FLEXIBLE DISC TO PROPELLER SHAFT
		M12X1.5
050	A 2104103802	PROPELLER SHAFT
		REAR
050	A 2104102102	PROPELLER SHAFT
		REAR
053	A 1244100732	CENTERING BUSHING
		REAR
056	A 2104101881	RUBBER BOOT BEARING
056	A 2104102181	RUBBER BOOT BEARING
	Repalced by: A 2114100181
056	A 2114100181	RUBBER BOOT BEARING
062	A 2019810025	BALL BEARING
062	A 0039812325	BALL BEARING
	Repalced by: A 0089814325
062	A 0089814325	BALL BEARING
068	A 1409904201	SCREW
	Repalced by: A 0039907112
068	A 0039907112	SCREW
		FLEXIBLE DISC TO PROPELLER SHAFT
		M 12 X 1.5 X 60
068	A 1409903301	BOLT W FLANGE
		FLEXIBLE DISC TO PROPELLER SHAFT
		M12X1.5X57.5
071	A 1409900840	WASHER
		FLEXIBLE DISC TO PROPELLER SHAFT
074	A 1409900551	HEXAGON NUT
		FLEXIBLE DISC TO PROPELLER SHAFT
		M12X1.5
077	A 2024110297	BOOT
077	A 2024110497	BOOT
080	A 1409904201	SCREW
	Repalced by: A 0039907112
080	A 0039907112	SCREW
		PROPELLER SHAFT TO TRANSMISSION
		M 12 X 1,5 X 60
080	A 1249903701	SCREW W HEXAGON SOCKET
		PROPELLER SHAFT TO TRANSMISSION
		M10X1X50
080	A 1409904201	SCREW
	Repalced by: A 0039907112
080	A 0039907112	SCREW
		PROPELLER SHAFT TO REAR AXLE
		M 12 X 1,5 X 60
080	A 1409903301	BOLT W FLANGE
		PROPELLER SHAFT TO REAR AXLE
		M12X1.5X57.5
083	A 1249904140	WASHER
		PROPELLER SHAFT TO TRANSMISSION
083	A 1409900840	WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
083	A 1409900840	WASHER
		PROPELLER SHAFT TO REAR AXLE
086	A 1249901451	HEXAGON NUT
		PROPELLER SHAFT TO TRANSMISSION
		M10X1
086	A 1409900551	HEXAGON NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
		M12X1.5
086	A 1409900551	HEXAGON NUT
		PROPELLER SHAFT TO REAR AXLE
		M12X1.5
089	N 000933008154	SCREW
	Repalced by: N 304017008021
089	N 304017008021	SCREW
		INTERMEDIATE BEARING TO FRAME
092	N 912004008102	LOCK WASHER
		INTERMEDIATE BEARING TO FRAME
098	A 2104101215	FLEXIBLE JOINT DISC
	Repalced by: A 1704100115
098	A 1704100115	FLEXIBLE JOINT DISC
		PARTS KIT
098	A 2024101315	FLEXIBLE JOINT DISC
		PARTS KIT,FRONT
098	A 2104100815	FLEXIBLE JOINT DISC
	Repalced by: A 1704100015
098	A 1704100015	FLEXIBLE JOINT DISC
		PARTS KIT,REAR
	X XXXXXXXXXXXX	PART NAME MISSING

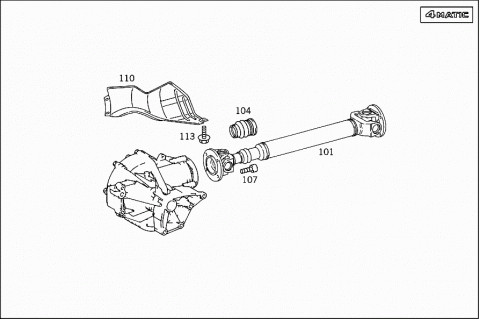

		FROM PROPELLER SHAFT TO FRONT AXLE
101	A 2104104806	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
104	A 2024110297	BOOT
107	N 000912008201	SCREW
110	A 2104110283	PROTECTIVE PLATE
113	N 914126006001	SCREW
	Repalced by: N 910105006002
113	N 910105006002	HEXAGON HEAD BOLT
