Transporto priemonė: E 430; VIN numerio dalis: 210070

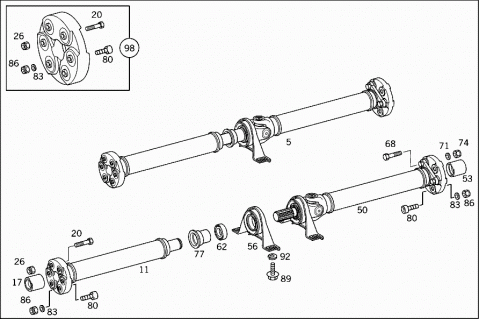

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2104103406 | PROPELLER SHAFT |
| 011 | A 2104102501 | PROPELLER SHAFT |
| FRONT | ||
| 017 | A 1244100732 | CENTERING BUSHING |
| FRONT | ||
| 020 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 026 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 050 | A 2104101502 | PROPELLER SHAFT |
| REAR | ||
| 053 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 056 | A 2104102081 | RUBBER BOOT BEARING |
| 062 | A 0039812325 | BALL BEARING |
| 068 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 071 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 074 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 077 | A 2024110497 | BOOT |
| 080 | A 1409902801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 65 | ||
| 083 | A 1409900840 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 086 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12X1.5 | ||
| 089 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 089 | N 304017008021 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 092 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 098 | A 2104100615 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
